5-2
Refer to page 4-4 for the procedure for access-
ing the microwave light transformer.
1. Unplug oven or disconnect power.
2. Disconnect one of the wires from the LINE
(primary) and one from the LOAD (second-
ary) terminals.
3.
Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the LINE
terminals. The meter should indicate ap-
p
roximately 45 Ω.
5. Touch the ohmmeter test leads to the LOAD
terminals. The meter should indicate ap-
p
roximately 0.6 Ω.

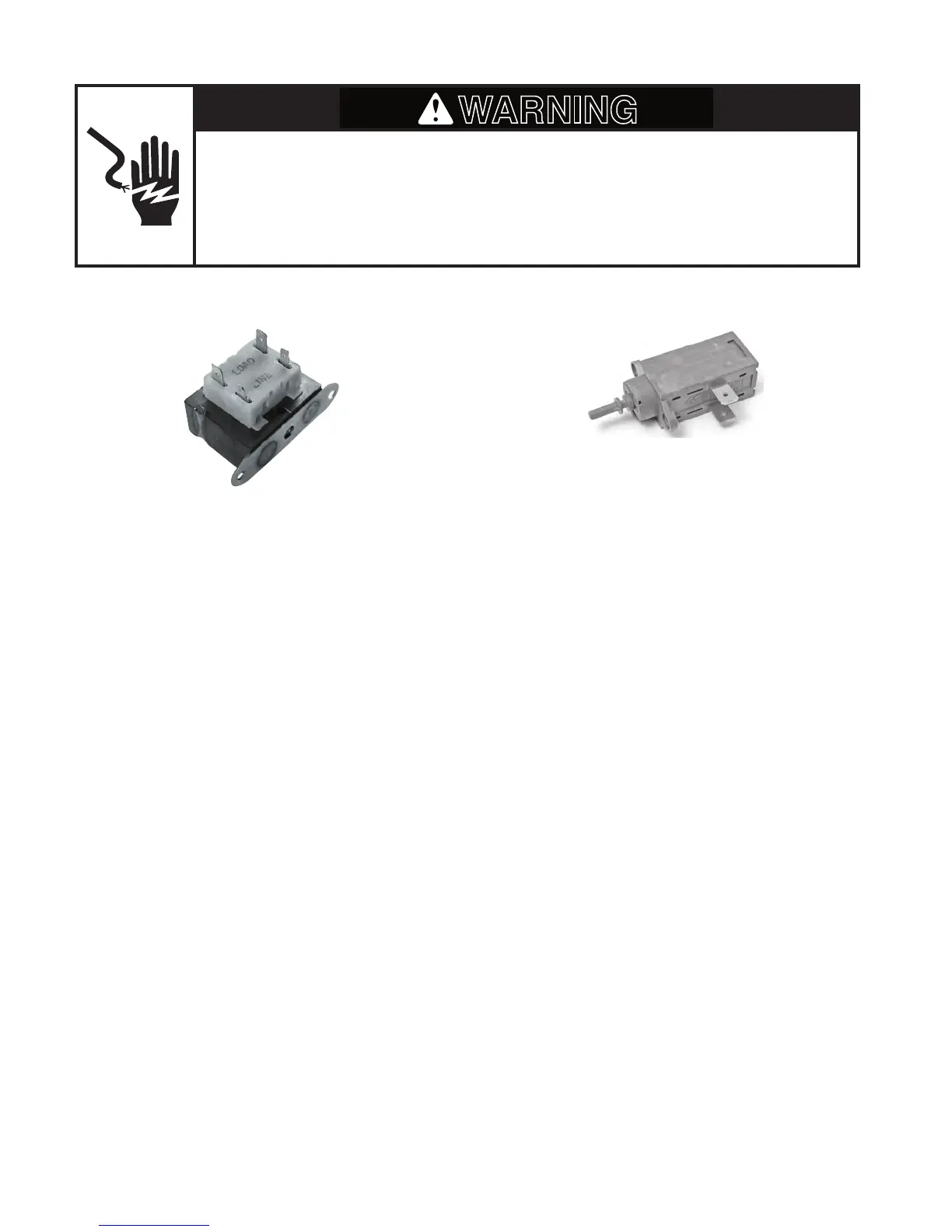

CONVECTION THERMOACTUATORMICROWAVE LIGHT TRANSFORMER
Refer to page 4-5 for the procedure for access-
ing the convection thermoactuator.
1. Unplug oven or disconnect power.
2. Disconnect one of the wires from the ther-
moactuator terminals.
3.
Set the ohmmeter to the R x 1 scale.
4. Touch the ohmmeter test leads to the ther-
moactuator terminals. The meter should
indicate approximately 2.3 Ω.
Electrical Shock Hazard
Disconnect power before servicing.
Replace all parts and panels before operating.
Failure to do so can result in death or electrical shock.
