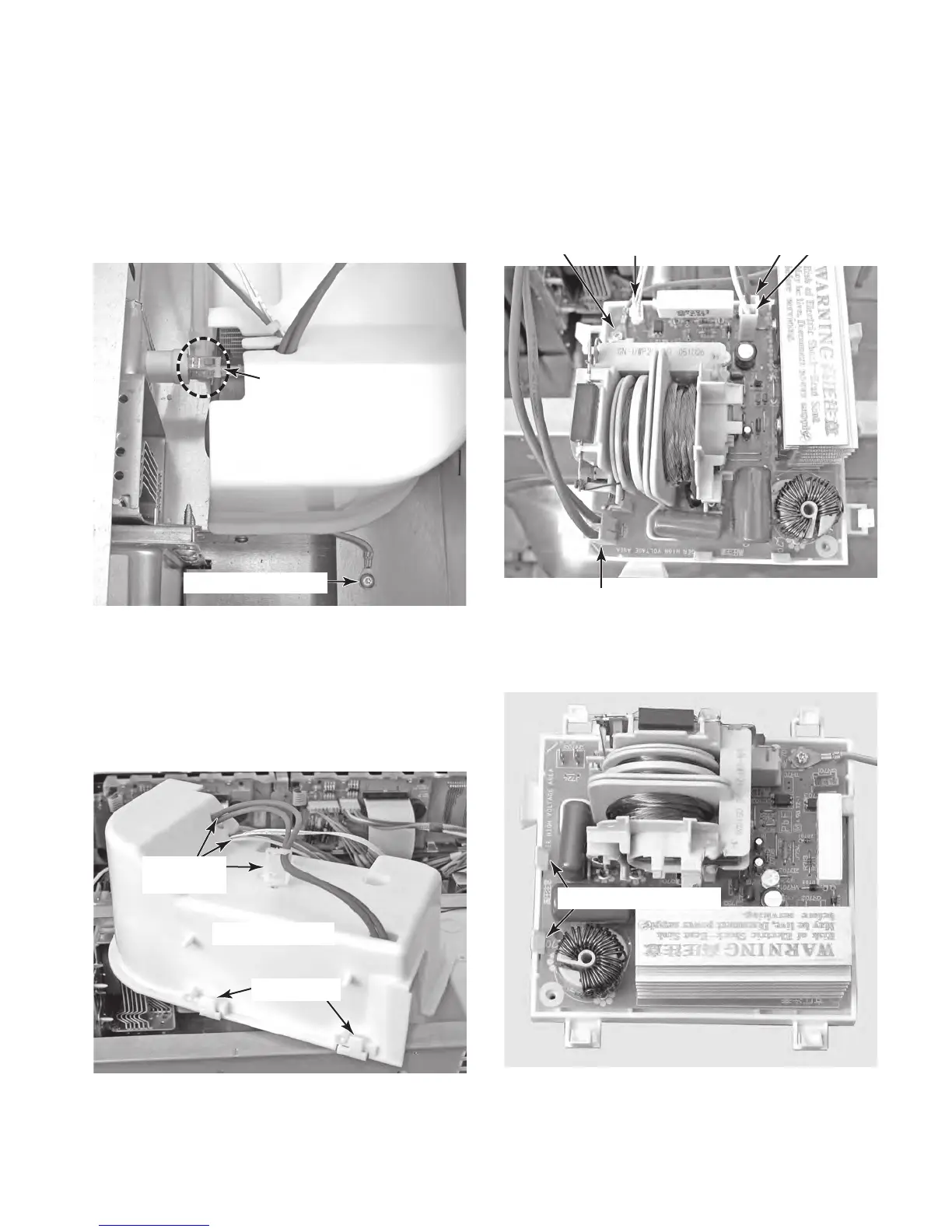

4-15
c) IMPORTANT: Touch a screwdriver
shaft to the two filament connectors
and chassis ground.
d) Disconnect the two filament wires from
the magnetron terminals.
e) Remove the screw from the green/yel-
l
ow ground wire.
i) Disconnect the wires from the inverter
as follows:
2 red wires from CN703
Screw at green/yellow wire E701
3-wire connector at CN701
Blue and white wires at CN702
Filament Wires
Ground Wire Screw
f) Lift the inverter housing and set it on
top of the oven.
g) Remove the wires from the inverter
housing.
h) Unclip the four housing tabs and lift the
top housing off the bottom half.
Remove
Wires Here
Inverter Housing
Tabs (2 of 4)
j) Unhook the two locking tabs and re-
move the inverter from the lower half
of the housing.
2 RD (CN703)
GND (E701) 3-Wire (CN701) BU & WH (CN702)
Inverter Housing Tabs
To Next Page
