4-8

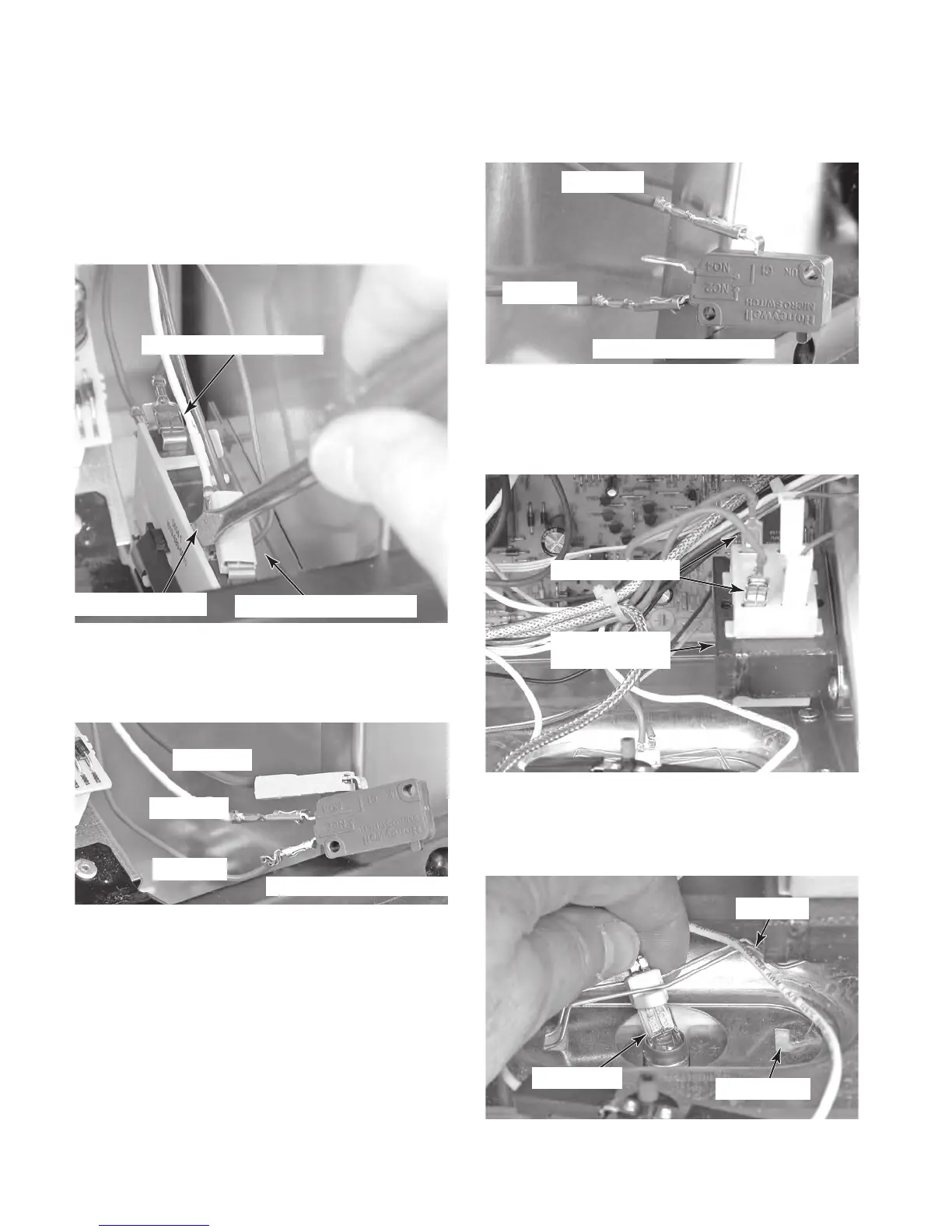

6. To remove the primary or monitor in-
terlock switch:
a
) Place the blade of a flat-blade screw-
driver between the switch body and the
holder. Twist the blade until the switch is
free of the tabs, and remove the switch
from the holder.
b) Primary (front): Disconnect the brown
(COM), white (N.O.), and blue (N.C.)
wires from the switch terminals.
c) Monitor (rear): Disconnect the red
(COM) and blue (N.C.) wires from the
switch terminals.
Primary Interlock Switch
Monitor Interlock Switch
Twist Screwdriver
Primary Interlock Switch
BU (N.C.)
WH (N.O.)
BR (COM)
RD (COM)
BU (N.C.)
Monitor Interlock Switch
7. To remove the cavity light:
a) Disconnect the two pink cavity light
LOAD wires from the microwave light
transformer terminals.
b) Squeeze the light wire clips, remove
the ends from the slot in the chassis,
and lift the light and remove it from the
chassis.
Pink LOAD Wires
Microwave Light
Transformer
Cavity Light
Chassis Slot
Wire Clip
To Next Page
