d) Remove the eight screws from the
top right side cover and remove the
cover.
e) Remove the nine screws from the right
microwave side cover and remove the
cover.
f) IMPORTANT: Touch a screwdriver
shaft to the two filament connectors
and chassis ground.
g) Disconnect the two red filament wires
from the magnetron terminals.
h) Remove the four screws from the mag-
n
etron, move the end of the microwave
relay board bracket out of the way, and
remove the magnetron.

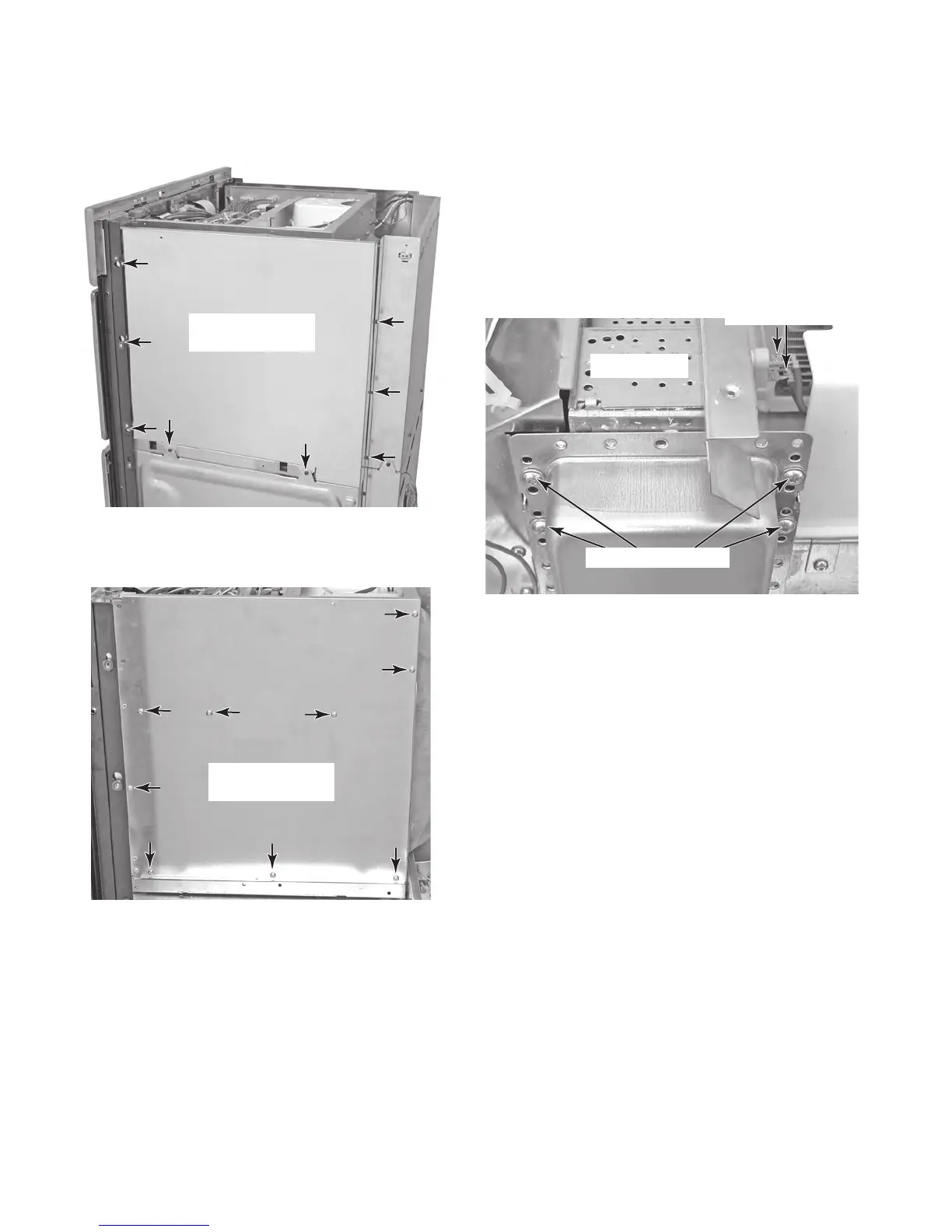

Top Right Side
Cover (8 Screws)
Right MW Side
Cover (9 Screws)
Magnetron
Filament Wires
Magnetron Screws
To Next Page
