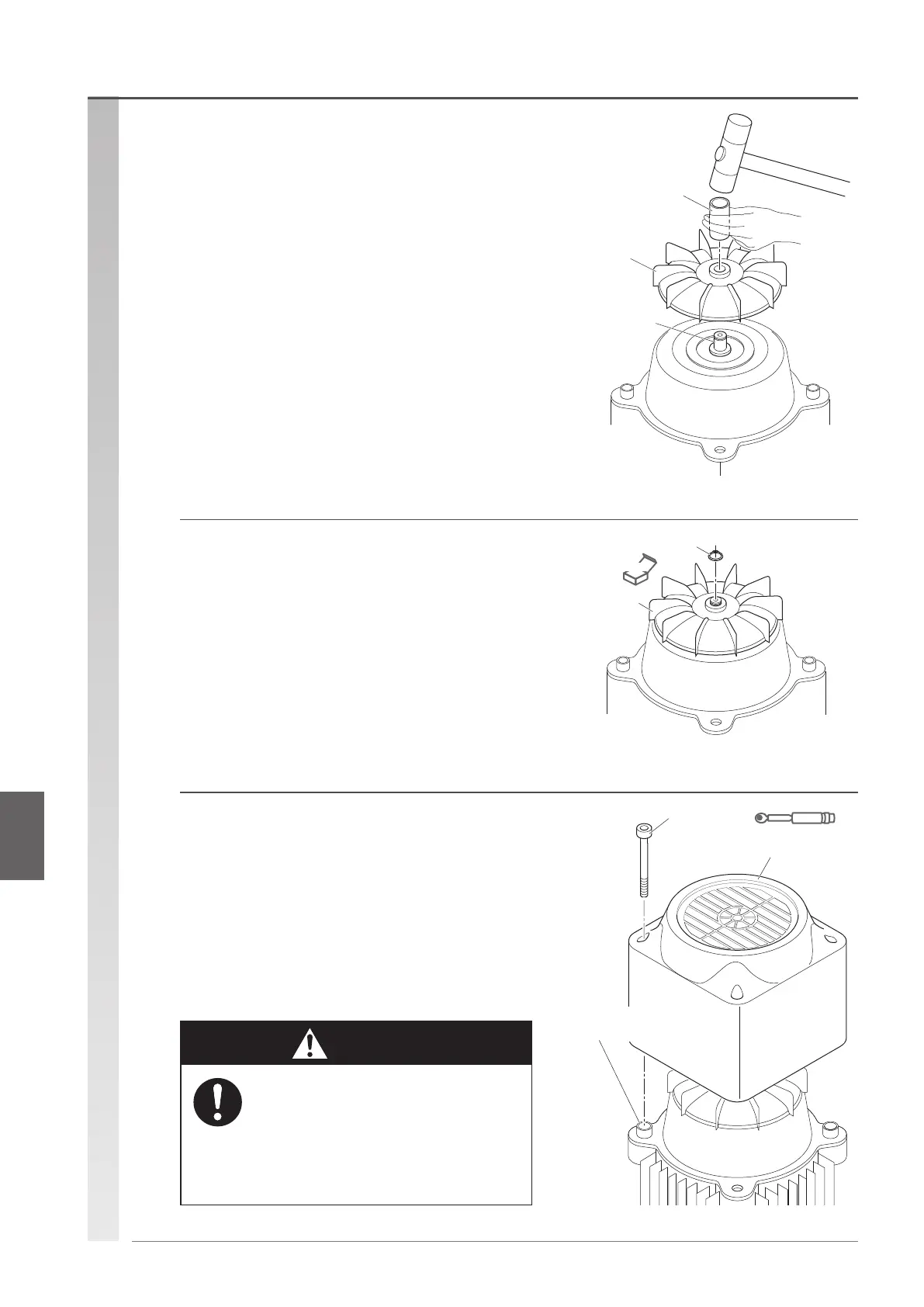

(13) Install the Fan cover to the Stator with the
Socket bolt.
•
Be careful of the orientation of the fan cover (align it with
the set pin).
Tightening torque M5 : 4.7 N·m
M6 : 7.9 N·m
Torque
Bolts (x4)
Fan cover
Align with
2 set pins.
Reassembly procedure (continued)
(12) Install a snap ring.
Snap ring
Fan
NEW
(11) Install the fan.
•
If the t is hard and it is difcult to install, set a proper jig
and hammer it gently with a plastic hammer.
•
Be careful not to hammer the motor shaft or fan directly.
Fan
Motor shaft
(Use the jig.)
• When installing the fan cover, observe
the tightening torque value to tighten the
socket bolt.
Failure to follow this instruction may
cause damage or crack of the fan
cover.
Mandatory
Assembling the motor and electromagnetic brake
Caution
Reassembly procedure
To Next Page
