KITO ER2M Disassembly And Reassembly Guide

43
Controller cover
Controller cover
packing C
Socket bolt
(gear case side)
Spring lock
washer
Plain washer
Cover belt
Torque
Controller cover
Ground line
Pan-head
machine screw
Braking resistor
lead wire
Socket bolt
Toothed lock
washer
Controller cover
Controller cover
packing C
Torque

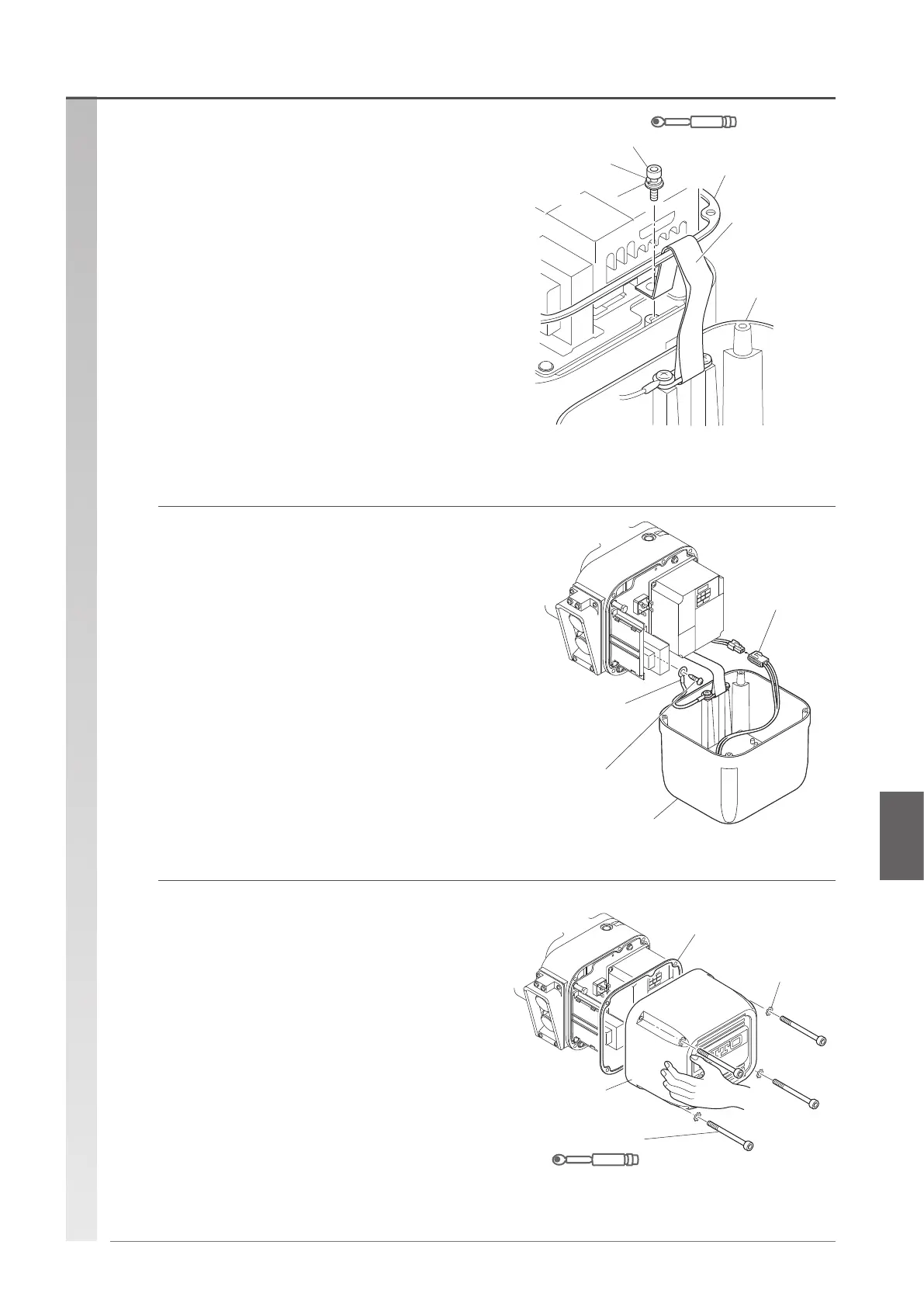

(4) Install the cover belt to the gear case.
•
Pass the cover belt through Controller Cover Packing C.
•
Tighten the socket bolt while holding the controller cover
with hands.
Tightening torque M6 : 10.8 N·m
Spring lock washer : Yes
Plain washer : Yes
* For B type, install the cover belt before
xingtheplate.
(5) Connect the wiring to Controller cover
connector, and connect the ground line to
the ground terminal of plate.
(6) Install the controller cover with 4 socket
bolts (toothed lock washer required).
Tightening torque M5 : 8.4 N·m
M6 : 10.8 N·m
Toothed lock washer : Yes
Reassembly procedure
(To be continued)
Assembling the controller cover
