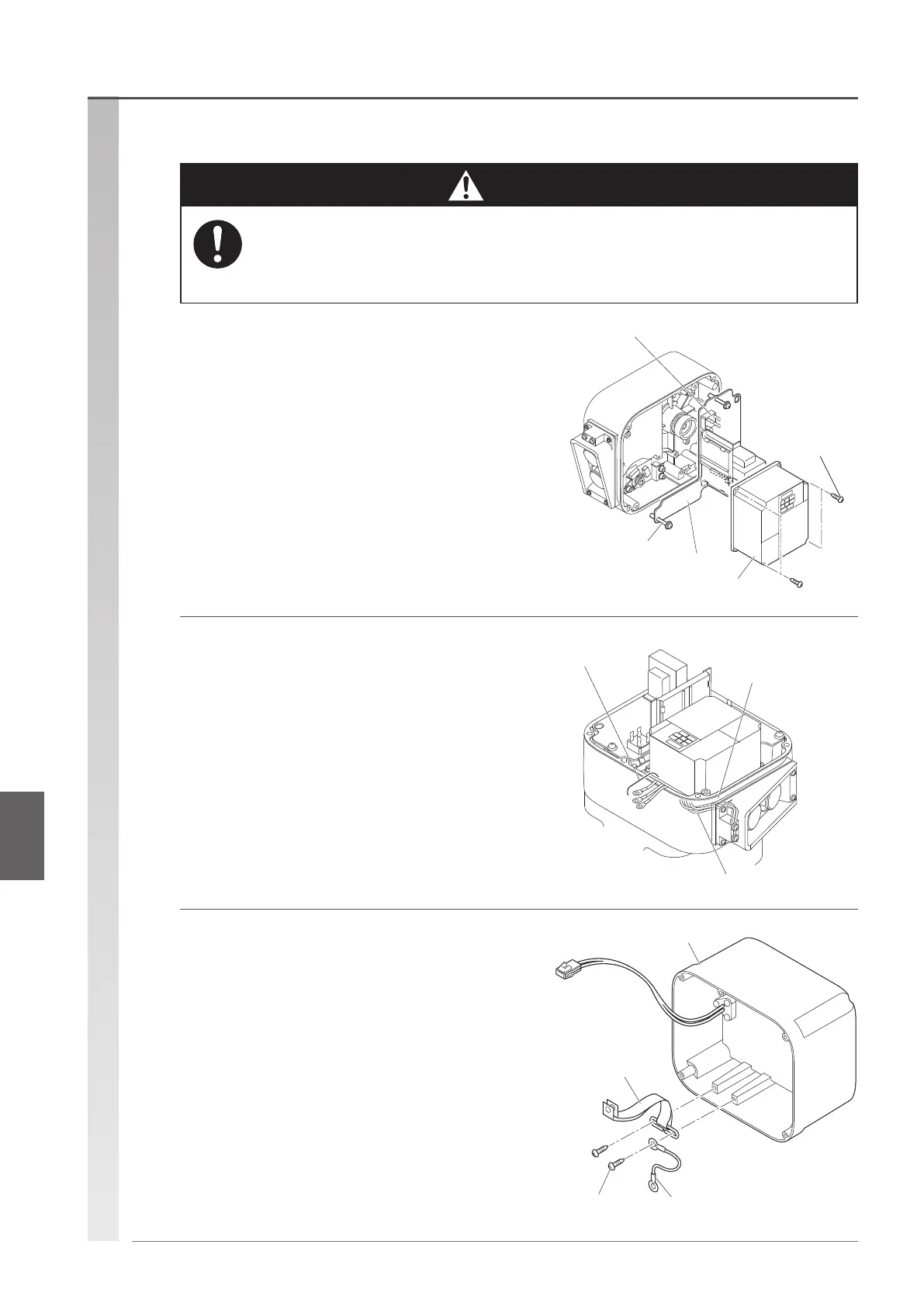

Dual speed inverter type (Basic main body D/E/F type)
Remove the
lead wire
in advance.
Plate screw
Plate
Inverter
Pan-head
machine screw
From motor
Wiring hole inside
the gear case
Connect to
each terminal.
Ground line
Cover belt
Pan-head
machine screw
Controller cover
(1) Fix the plate securely with the 3 setscrews
and the inverter with the 2 pan-head
machine screws.
•
When installing the inverter, be careful so that the lead
wire won't get caught.
• Be careful so that your finger won't get caught by the panel plate.
(2) Reconnect the motor lead wire.
•
Check the wire connection by looking at the connecting
diagram. The connecting diagram is attached on the
inside of the controller cover.
(3) Install the cover belt to the controller cover (if
removed).
•
Be careful so that the cover suspender faces the direction
as shown in the gure.
Mandatory
Caution
Reassembly procedure (continued)
Reassembly procedureAssembling the controller cover
