KITO ER2M Disassembly And Reassembly Guide

45
Torque
Controller cover
Controller cover
packing C
Socket bolt
(gear case side)
Plain washer
Spring lock
washer
Cover belt
Controller cover
Ground line
Pan-head
machine screw
Braking
resistor
lead wire
Controller cover
Controller cover
packing C
Socket bolt
Toothed lock
washer
Torque

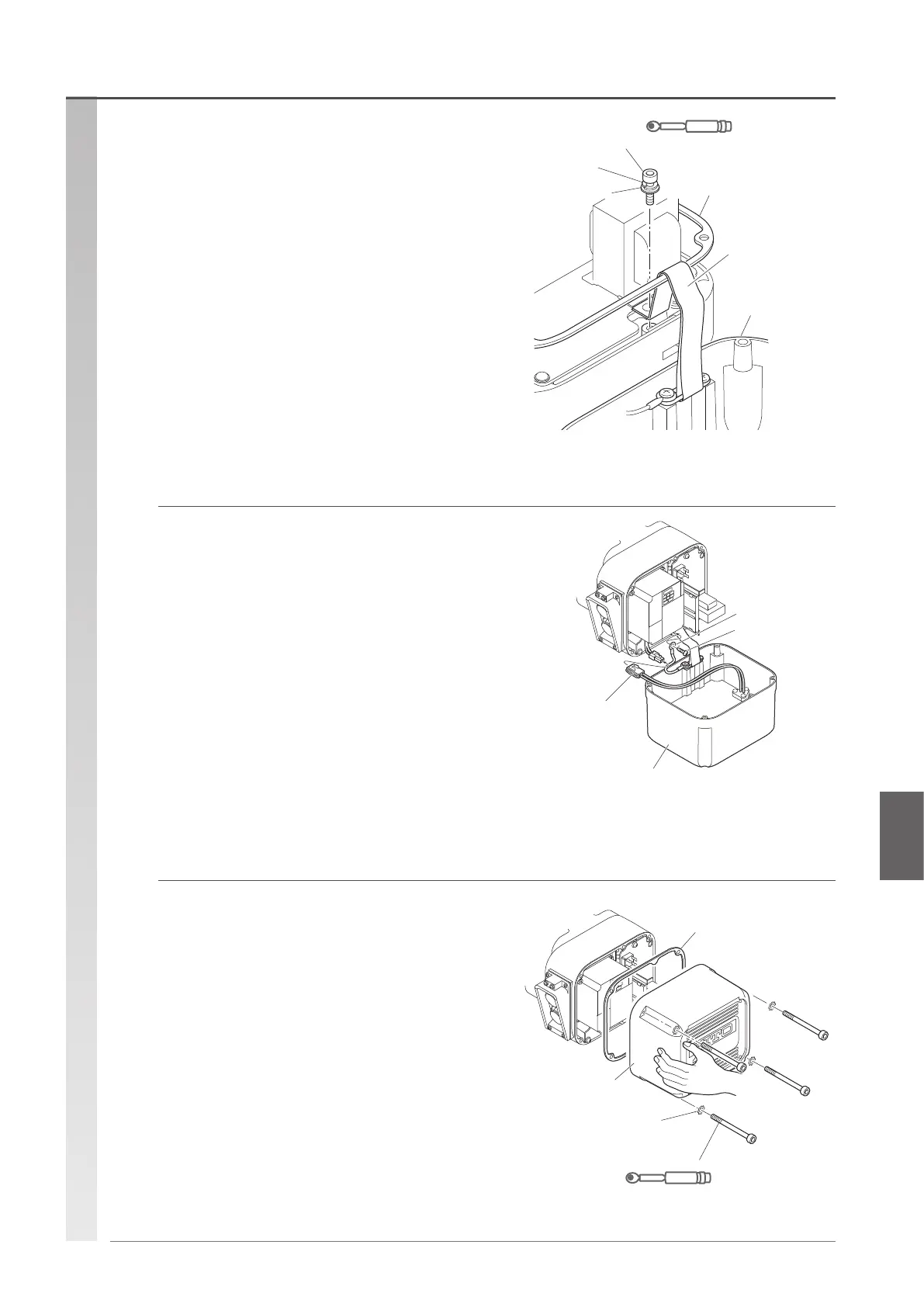

(5) Connect the wiring to Controller cover
connector, and connect the ground line to
the ground terminal of Plate.
(4) Install the cover belt to the gear case.
•
Pass the cover belt through Controller Cover Packing C.
•
Tighten the socket bolt while holding the controller cover
with hands.
Tightening torque M6 : 10.8 N·m
Spring lock washer : Yes
Plain washer : Yes
* For B type, install the cover belt before
xingtheplate.
(6) Install the controller cover with 4 socket
bolts (toothed lock washer required).
Tightening torque M5 : 8.4 N·m
M6 : 10.8 N·m
Toothed lock washer : Yes
Reassembly procedure
(To be continued)
Assembling the controller cover
