KLR.950 Revision: 2023-10-06
Serial numbers: 3008 – beyond
KLR.00001 – beyond
36

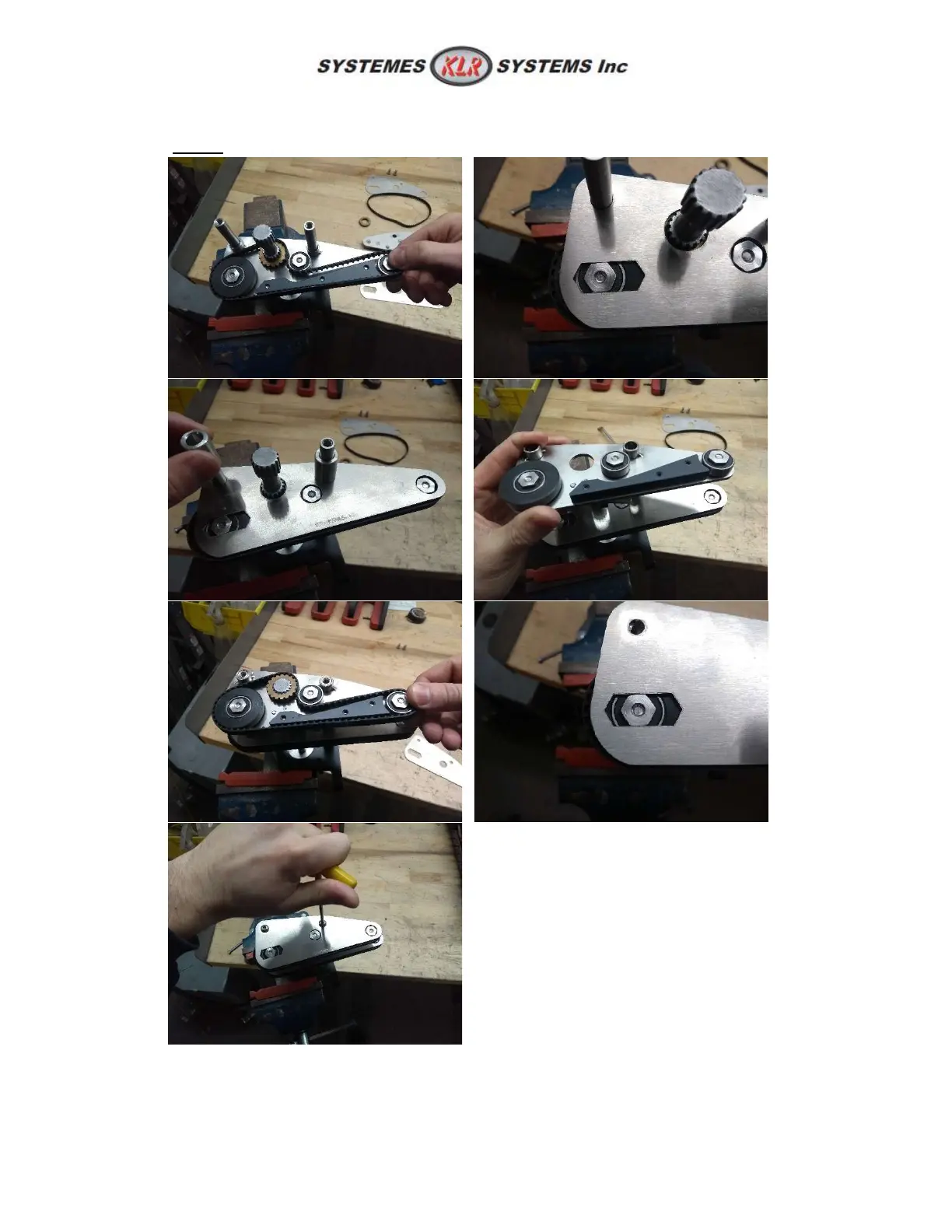

9. Reassemble with the new belts by following the reverse order, but by following these tips.
Careful, there is two size of belts;
10. Now, check the tension of the new belts. If needed, tension it by the bottom head screws
behind each holder. An Allen key 1/8 90 degrees is required;
Well engaged
Well engaged
