KLR 950 - 5: Replacing the Jewelry Saw

KLR.950 Revision: 2023-10-06
Serial numbers: 3008 – beyond
KLR.00001 – beyond
41
6. Replace the motor by reassemble in the reverse order.
6.2.5: Replacing the jewelry saw
The jewelry saw may need to be replaced at some point over a long period of working time. Usually to
fix feeding problem: saw is not biting into the clips but slip. However, it might only be the plunger on the
side that does not apply enough pressure on the clips.

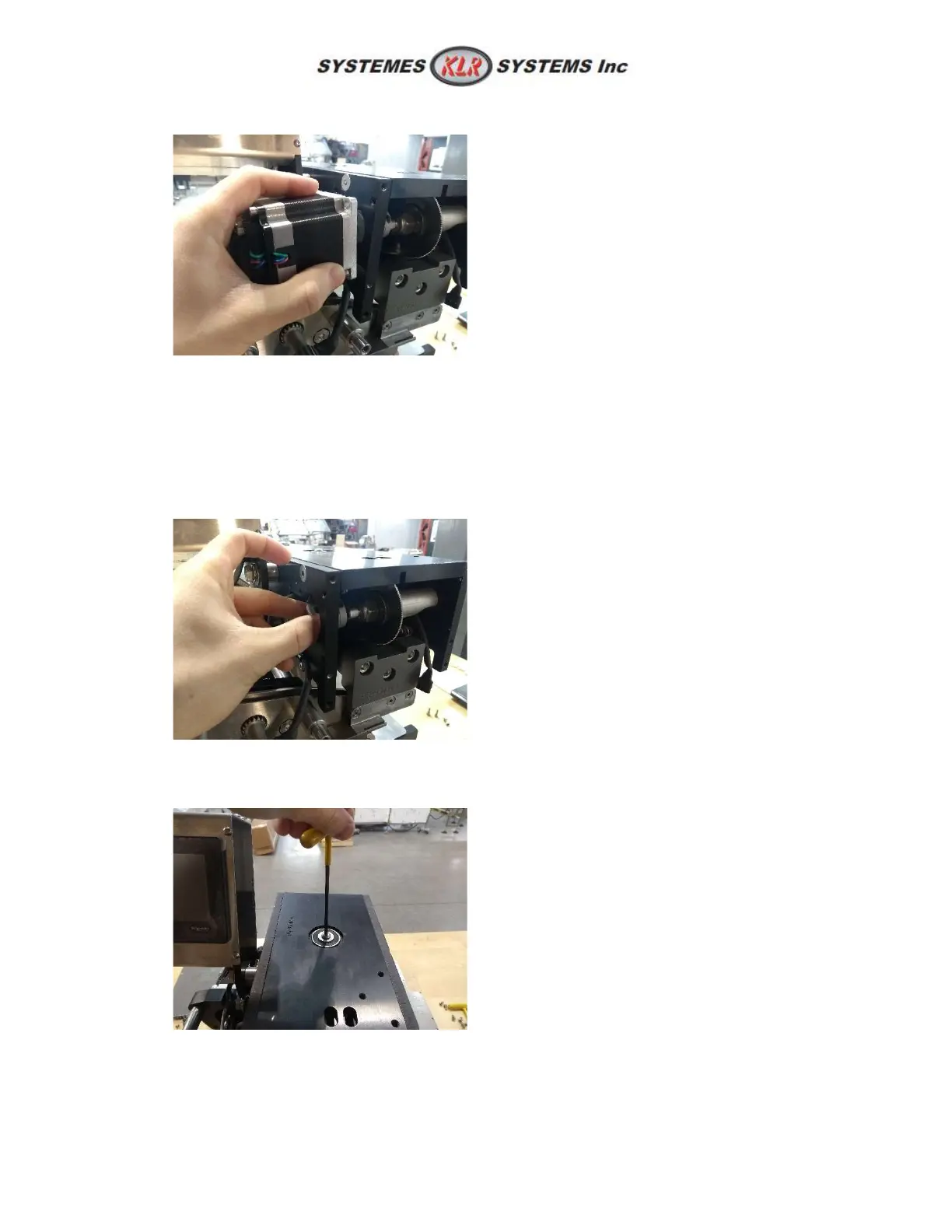

1. Follow the procedure "feeder motors" step 1 to 5 before continuing;
2. Remove the coupling;
3. Remove the top screw;
Note: you may need to remove the back panel in order to hold one of the gears by hand to be
able to loosen that screw.
