KLR 950 - Page 43

KLR.950 Revision: 2023-10-06
Serial numbers: 3008 – beyond
KLR.00001 – beyond
42

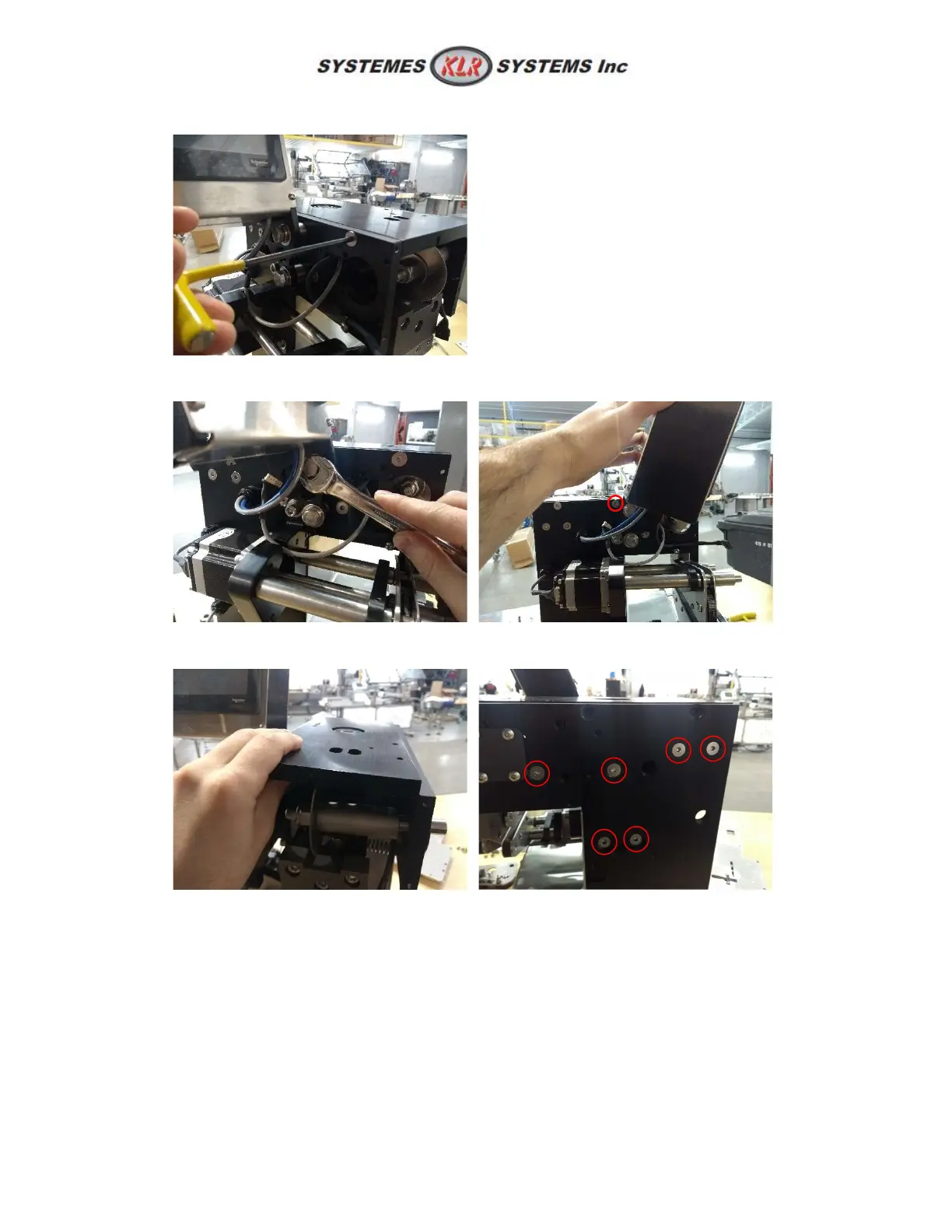

4. Remove all six (6) flat head screws using a 5/32 Allen key;
5. For the last screw, the two (2) hexagonal screws of the screen bracket need to be loosen with a
9/16 wrench;
6. Take off the top frame. If it is too tight to remove, loosen a quarter turn or these flat head
screws (remember to retighten them);
