6.2.4: Feeder motors

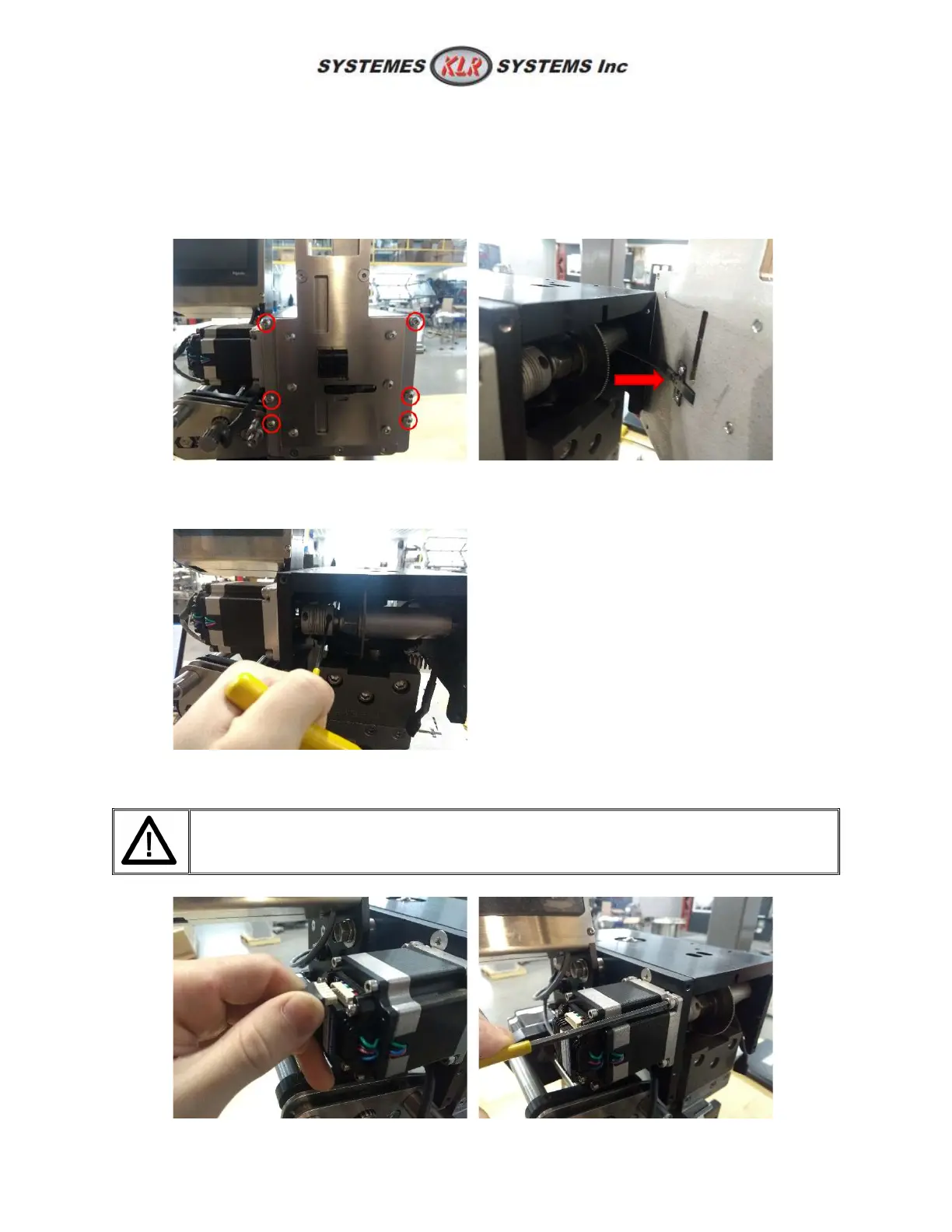

If it is needed to replace the motor, follow these steps:
1. Follow the "disassemble half of top belt holder" procedures before continuing;
2. Remove all six (6) bottom head screws. Careful, do NOT pull hard on the assembly after
removing those screws because there is a wire connected;
3. Either unplug the connector or remove the two (2) screws (make sure to reassemble the same
way later);
4. Loosen the coupling;
5. Unplug gently the feeder motor connector and unscrew the four (4) screws of the motor
Careful: These motors are fragile to impact, avoid dropping them.
NEVER remove a motor connector when power is ON. ALWAYS turn OFF the
equipment before. Go against this notice can result in material damage.
