KLR 950 - 2: Stepper Motor Drive

KLR.950 Revision: 2023-10-06
Serial numbers: 3008 – beyond
KLR.00001 – beyond
37

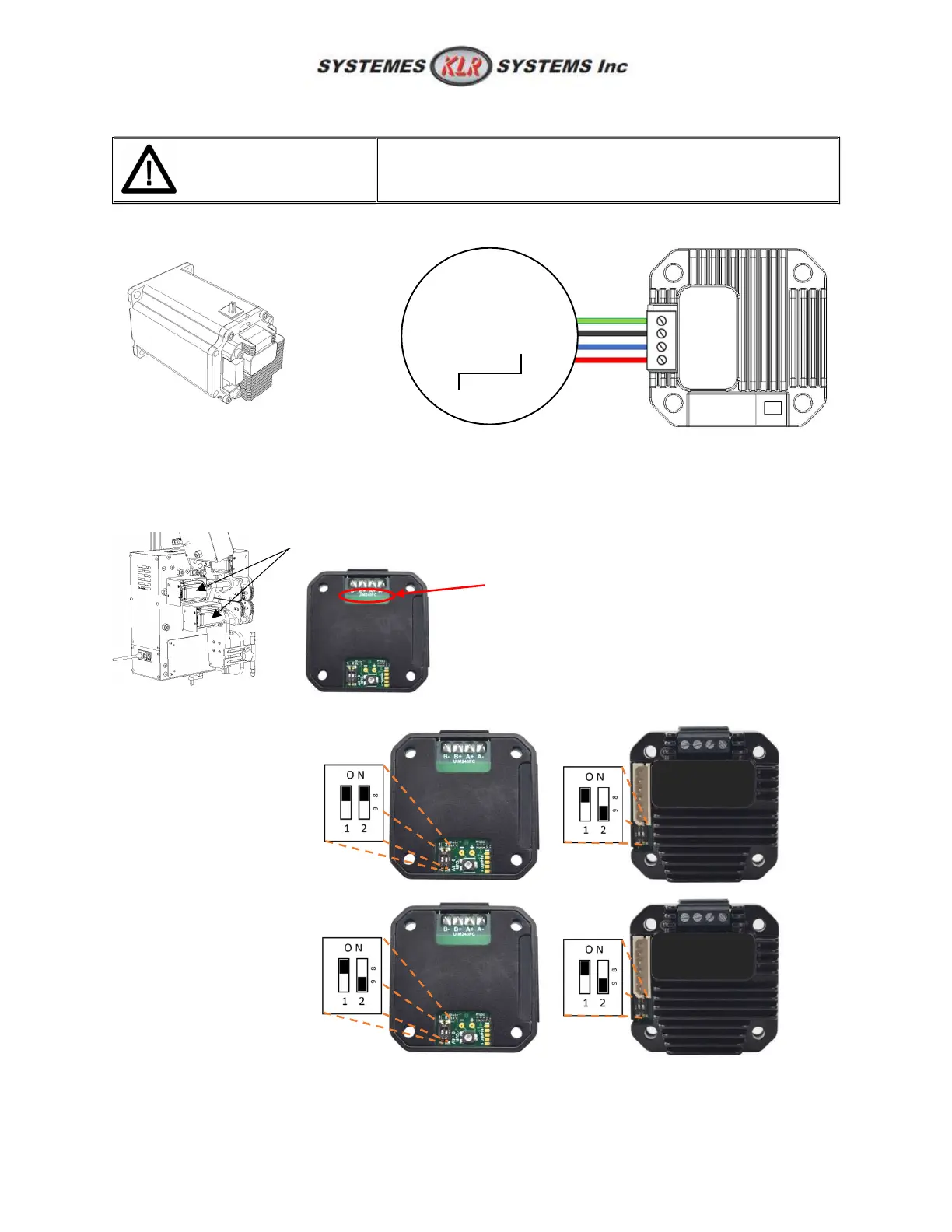

6.2.2: Stepper motor drive
WARNING

NEVER remove a motor connector when power is ON.
ALWAYS turn OFF the equipment before. Go against
this notice can result in material damage.
6.2.2.1: Stepper motor assembly 6.2.2.2: Stepper motor wiring
Part number: PE-01514-ASS
6.2.2.3: DIP switches setting for driving belt motor only
Due to the recent shortage in electric components, the manufacturer of the drive used a different part into the
making of it. Result: Two different drives are in circulation.
Step to do if UIM340C and install as driving belt motors.
UIM240… = Leave the DIP switches behind as is.
UIM340… = Change DIP switch behind.
Driving belt motors
B
-
B+
A+
A-
M
B
-
=
Green
B+ = Black
A+ = Blue
A- = Red
PE
-
0
1533
UIM240…
UIM340…
