KLR 950 - 4 Installation; Mounted Directly on a Conveyor; Bolt Pattern

KLR.950 Revision: 2023-10-06
Serial numbers: 3008 – beyond
KLR.00001 – beyond
8

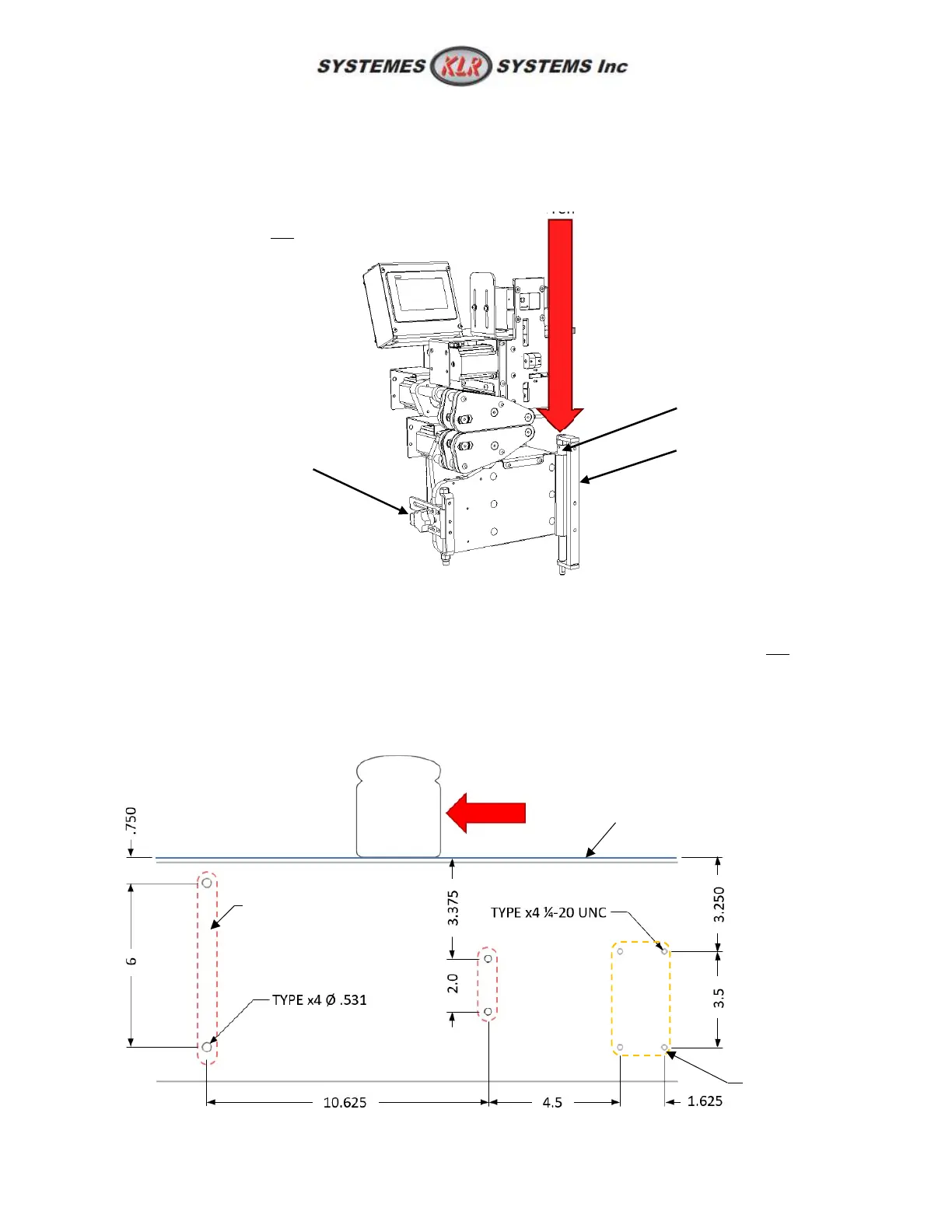

4.0: INSTALLATION
4.1: Mounted directly on a conveyor
Of course, the KLR.950 is designed to be installed on KLR equipments, such as conveyors. The brackets
are attached to the side frame of the conveyor and has a quick removal functionality. Take note this
following machine is a left version:
4.2: Bolt pattern
Follow these instructions in case of preparation before the arrival of the machine. This is for a left setup.
Right setup would be mirror of this picture. See Flow diagram (right or left) to know what side is to be
prepared
Pivot
bracket (hold weight)
(exist two different types)
Adjustable bracket (adjust the angle)
Adjustable rod (height)
Push the plunger to release
Flow
KLR.950
-
L bolt pattern
(bag closer)
Measure from the top of the belt
Conveyor side
LEFT SETUP
KLR.970
-
L bolt
pattern (bag
tensioner)
