For USB power Connect the router to a powered USB port with a USB A to USB micro B
cable. Typically the USB ports on laptop computers can supply power to the router. When
connecting to a USB hub, verify the power specifications of the hub. See the topic
Specifications on page 5.

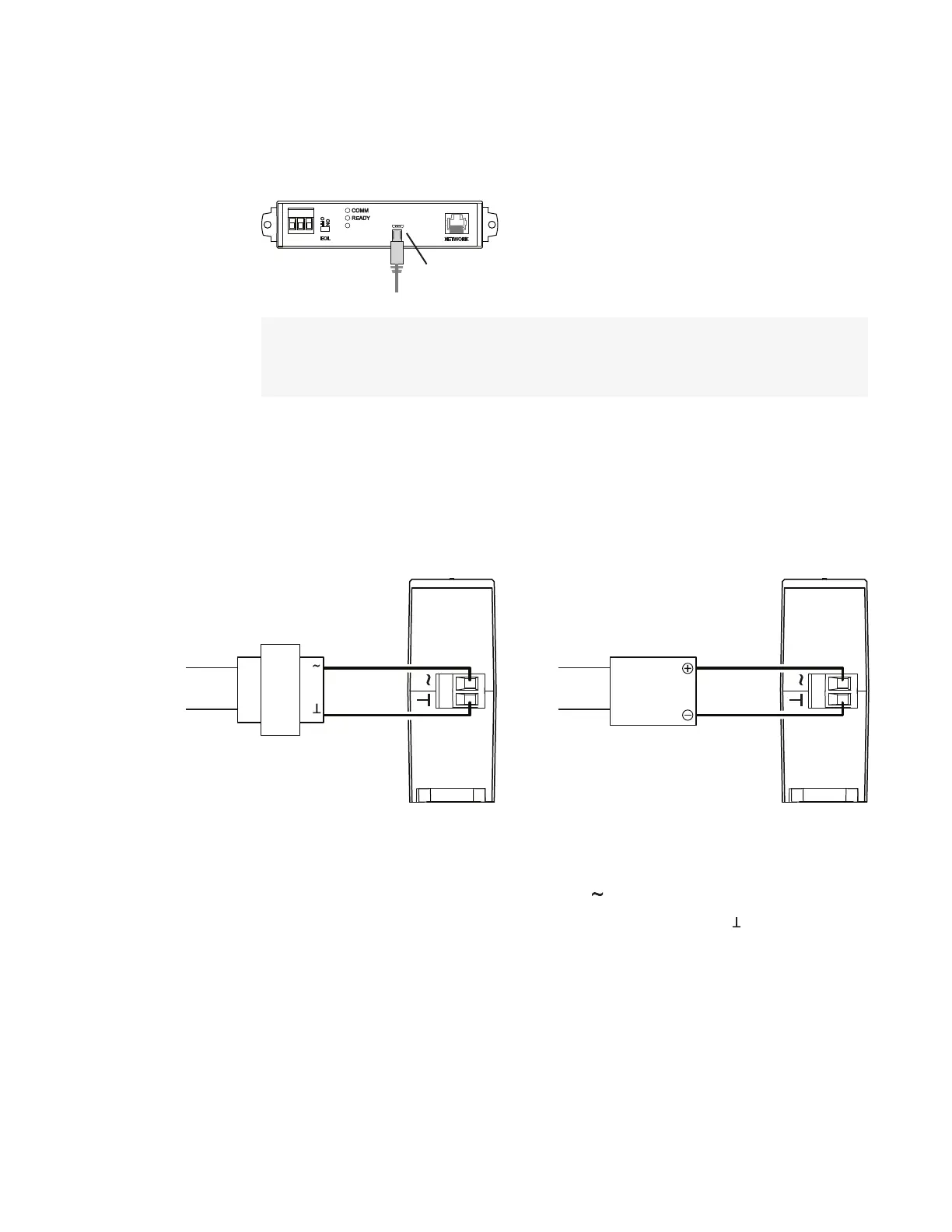

Illustration 1–4 USB connection
Note: When using USB connection for power and communications, use the USB cable from the
HPO-5551 Technician's Router Cable Kit. The cable from the kit is specified to supply
enough power for both the USB and the network connection.
To use the USB for power and network communications, see the topic Single-cable
connection on page 11.
For permanent installations, the router is usually powered from a 24 volt transformer or DC
power supply.
Illustration 1–5 24 volt power connections
For 24 volt AC power Connect a 24 volt transformer to the black power terminal block on the
end of the router.
l Connect the AC phase to the phase terminal .
l Connect the ground side of the transformer to the ground terminal .
l Use a Class2 transformer of the appropriate size to supply power to the router.
l KMC Controls recommends powering the router from a dedicated transformer.
l Do not run 24 volt power from within an enclosure to external devices.
Section 1: Introduction KMC Controls, Inc.
10 Revision J
