KMC Controls BAC-5051E User Manual

For 24 volt DC power Connect a 24 volt power supply to the black power terminal block on
the end of the router.
l Connect the positive terminal (+) to the phase terminal .
l Connect the negative terminal (-) of the power supply to the ground terminal .
l Use a Class2 power supply of the appropriate size to supply power to the router.
l KMC Controls recommends powering the router from a dedicated power supply.
l Do not run 24 volt power from within an enclosure to external devices.
Single-cable connection
The single-cable connection method connects the BAC-5051E router to a computer with a
USB cable that supplies both power and communications. The USB port becomes a virtual
network interface card (NIC) and establishes a network between the computer and the
router.
Note: Use the USB cable from the HPO-5551 Router Technician's Cable kit for a single cable
connection. This cable meets the specification to supply the power and communications
required by the router. Other cables may prevent routing on one or more ports.

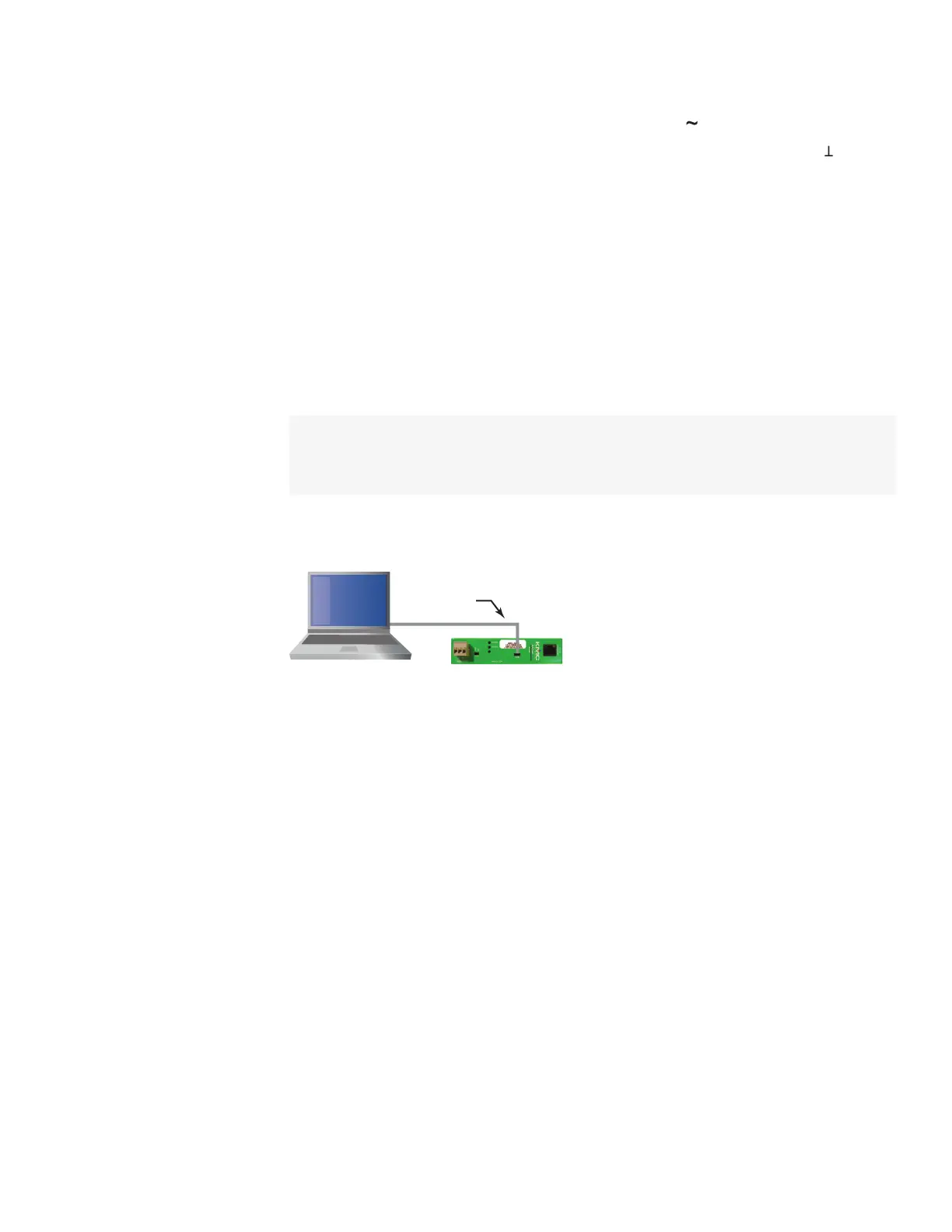

Illustration 1–6 Single-cable connection
Computer with
browser or
service tool
USB-A to
USB-micro
cable
To set up a single-cable connection, do the following:
1 Plug the USB cable from the HPO-5551 cable kit into the router.
2 Plug the other end of the USB cable into the computer.
Depending on the version of Windows, the first time the router is plugged into a
computer, Windows will display a message that it is installing a new driver. Click on the
message to see more details. Note the name of the device in the message because
you will need this information in later steps. Allow the installation to finish and then
close the dialog.
3 From the Windows Control Panel, click Network and Internet and then Networking
Sharing Center.
4 Once the center is open, click Change Adaptor Settings.
5 Identify the Local Area Connection that is associated with the router and click it to
open the connection.
6 In the Local Area Connection status, click Properties.
BAC-5051E Router Section 1: Introduction
Revision J 11
