Remote Port Enter the port number of the remote PAD router. If port address translation
(PAT) is used between the BAC-5051E router and the PAD or BBMD, contact the network
system administrator for the correct public IP address.
Other IProuting protocols
l BACnet Broadcast Management Device routing on page 30
l BACnet IP routing on page 27
l BACnet foreign device routing on page 28
l Router Core properties page on page 35

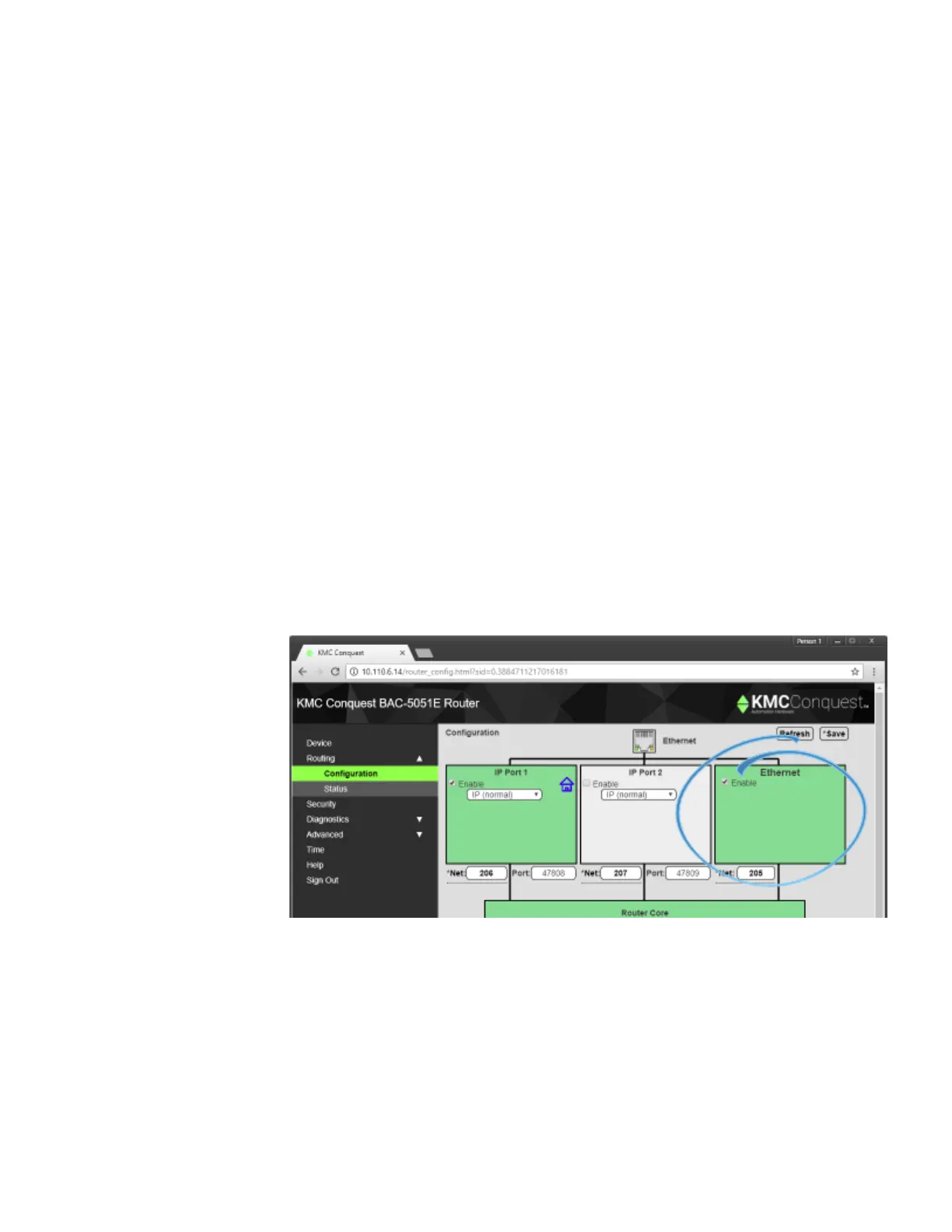

BACnet Ethernet routing
Configure the Ethernet port in this page. The values on this page are assigned by the BACnet
system engineer.
For the log in procedure, see the topic Initial setup on page 15.
1 Use an Internet browser to log in.
2 Click Routing and then Configuration.
3 Select Enable for the Ethernet port.
4 Enter the Network number and then click Save.
Note: The router will restart. For additional changes, log in again.
Enable Select to enable the network. The port block turns green when enabled.
Net Designates the BACnet network number for the port. Assign network numbers in the
range from 1 to 65534.
BAC-5051E Router Section 3: Setting up routing
Revision J 33
