Refresh Click to refresh the Route Status list. To automatically refresh the list every 10
seconds, select the Auto Refresh check box.

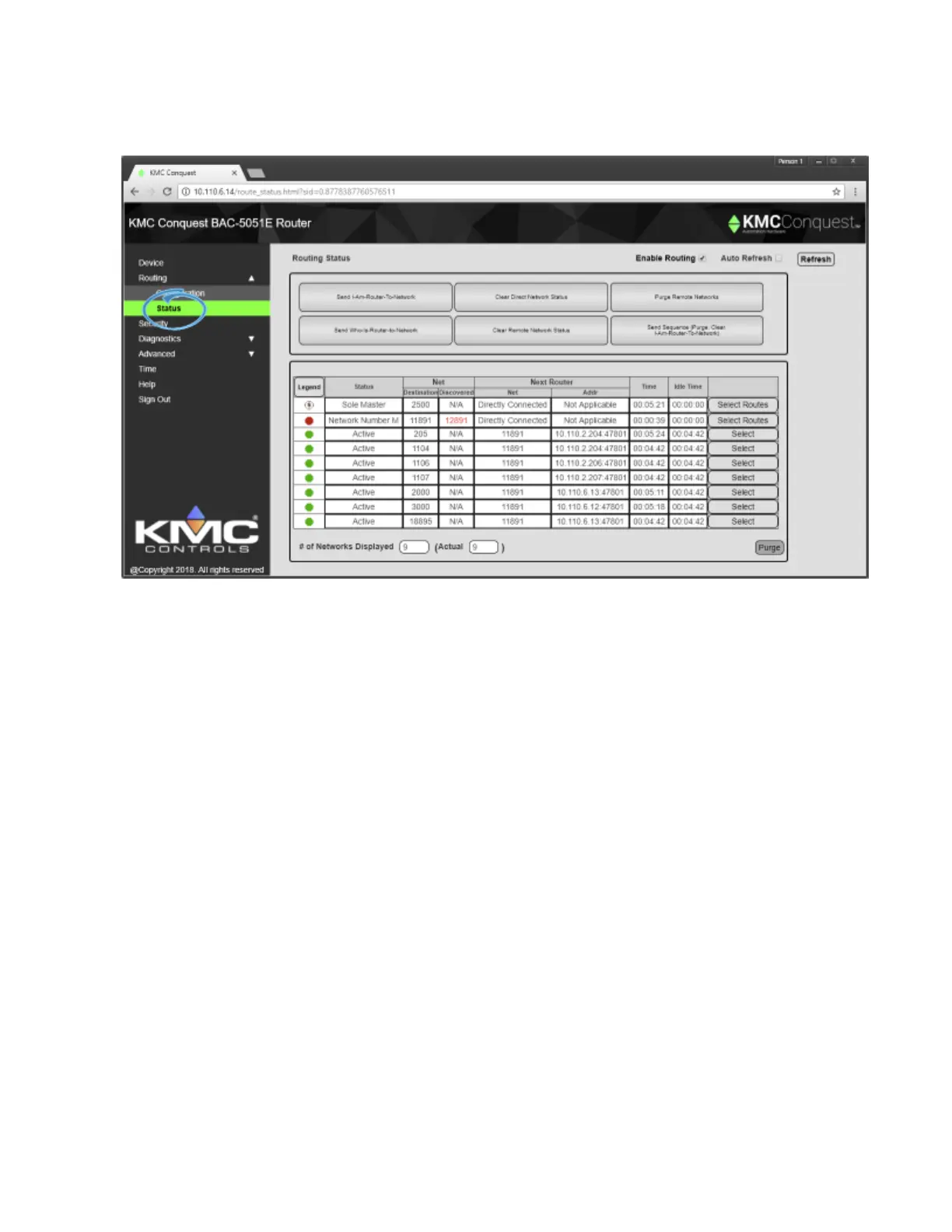

Illustration 4–1 Routing Status page
Route Status buttons
The Route Status buttons are useful for diagnosing routing and network problems.
Send I-Am-Router-To-Network Broadcasts to all networks that the router is on the network.
This can trigger internetwork wide updates.
Clear Direct Network Status Forces the status of all direct networks to Active. If a network
problem continues after clearing the direct networks, the networks with problems will return
to a status other than Active.
Purge Remote Networks Removes all remote routes from the network table.
Send Who-Is-Router-to-Network Initiates a query to other routers that results in the
discovery of other networks. Other routers respond with a BACnet I-Am-Router-To-Network
message.
Clear Remote Networks Forces the status of all remote networks to Active. If a problem
continues with a remote network, it will return to a status other than Active.
Send Sequence Sequentially broadcasts the three commands Purge, Clear, and Send I-Am-
Router-To-Network.
