6 Once you have logged in, other parameters of the router can be changed from the
Home page.

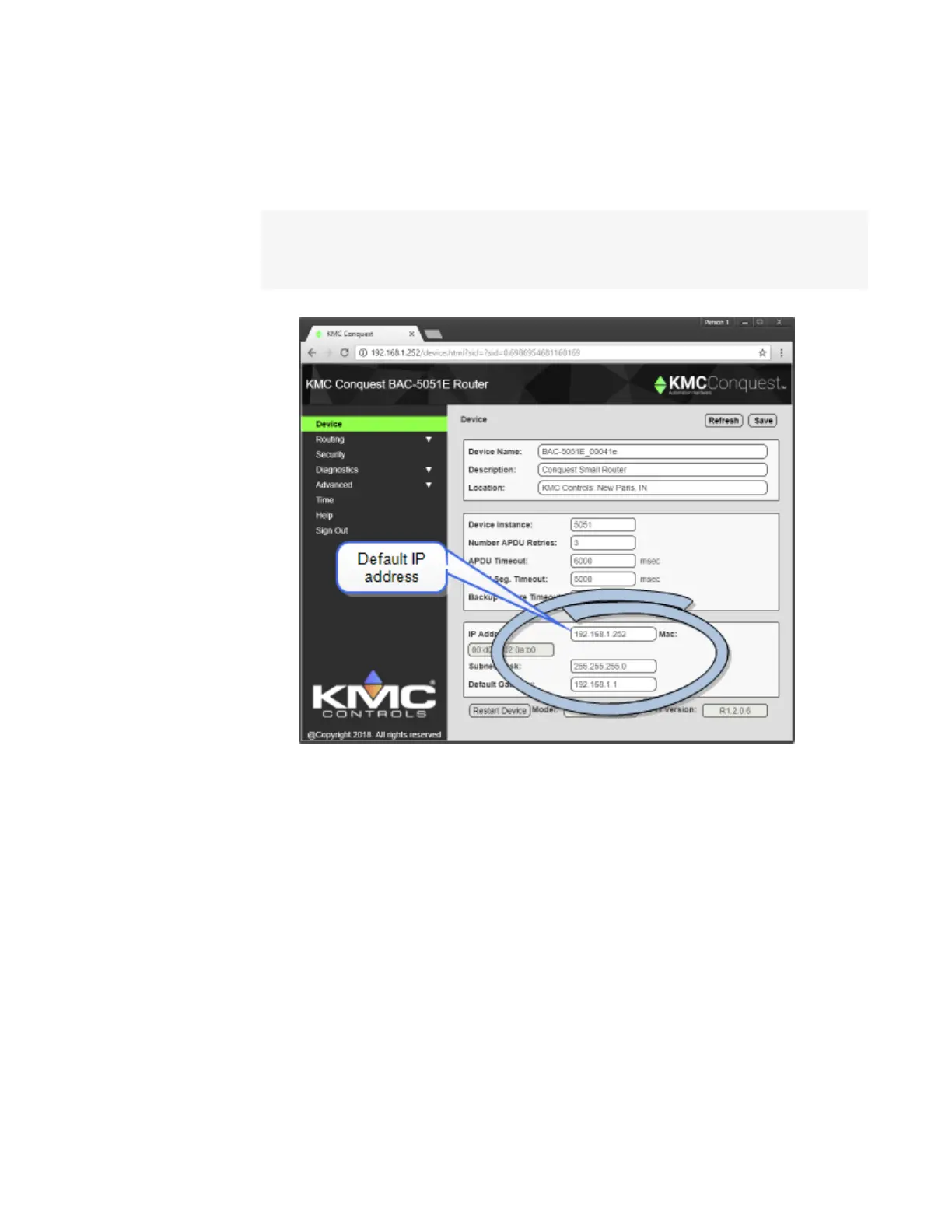

l To change the IP address, see the topic Device properties page on page 21.
l To set up BACnet routing, see the topic Setting up routing on page 27.
l To change passwords and add users, see the topic Security page on page 24.
Note: Once you change the IP address, place the router on the new subnet and log in using the
new address. After the address is changed and saved, the router will not respond to the old
address.
Changing your computer's address
To directly connect a computer to a router, you must set the IPaddress of the computer to
be compatible with the IP address of the router.
1 From the Windows Control Panel, click Network and Internet and then Networking
Sharing Center.
Section 2: Configuring the BAC-5051E router KMC Controls, Inc.
18 Revision J

KMC Controls BAC-5051E Specifications

General

Brand	KMC Controls
Model	BAC-5051E
Category	Network Router
Language	English
