MS/TP configuration

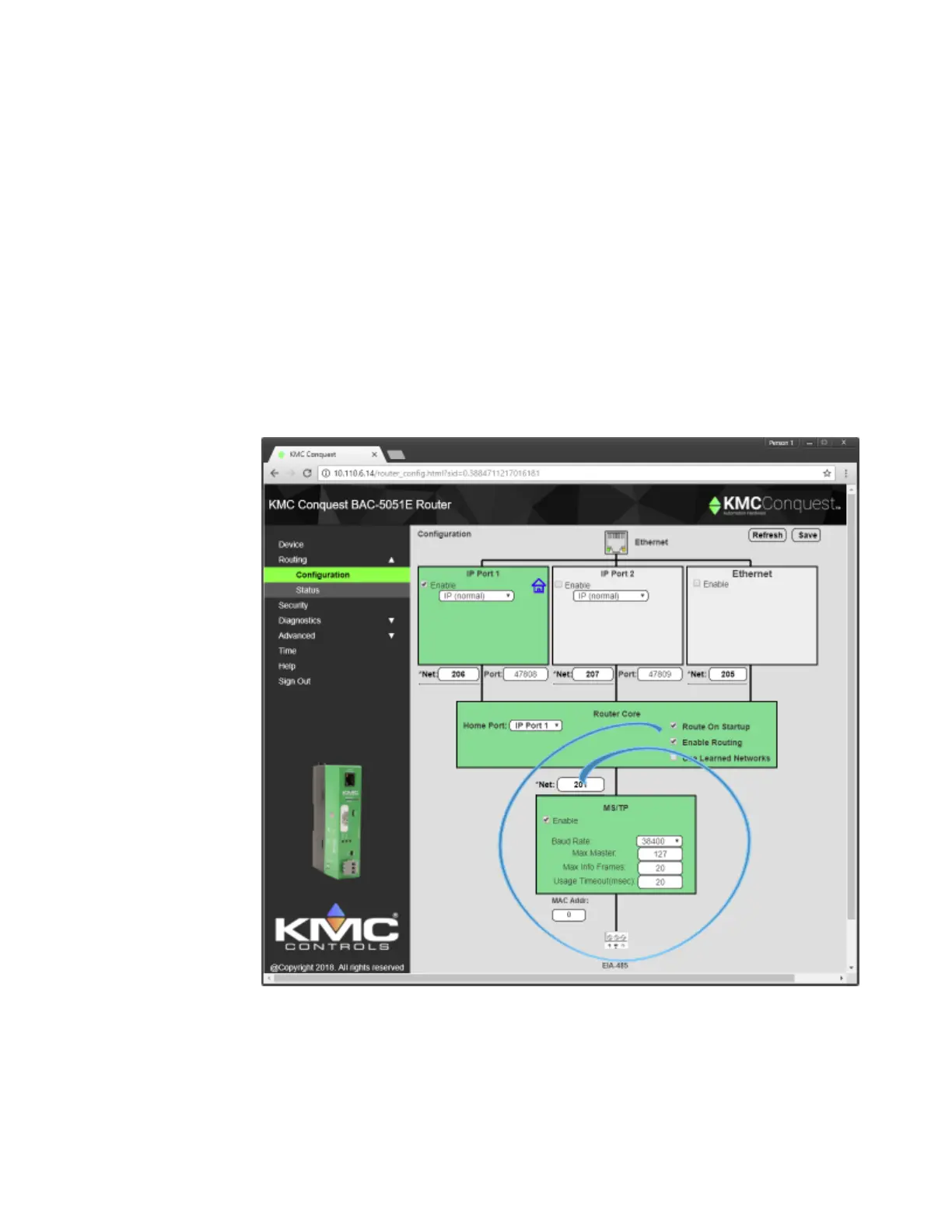

Configure the MS/TP network in this page. The values on this page are assigned by the
BACnet system engineer.
For the log in procedure, see the topic Initial setup on page 15.
1 Use an Internet browser to log in.
2 Click Routing and then Configuration.
3 Select Enable for the MS/TP port.
4 Enter the Network number and a MAC address for the router.
5 Set Baud Rate. All devices on the MS/TP network must use the same Baud.
6 When finished, click Save.
Note: The router will restart. For additional changes, log in again.
Enable Select to enable the network. The port block turns green when enabled.
Net Designates the BACnet network number for the MS/TP port. Assign a network number
that is in the range from 1-65534.
Baud Rate Select the baud rate from the drop down list. The Baud Rate for the router and all
devices connected to the MS/TP network must use the same rate.
