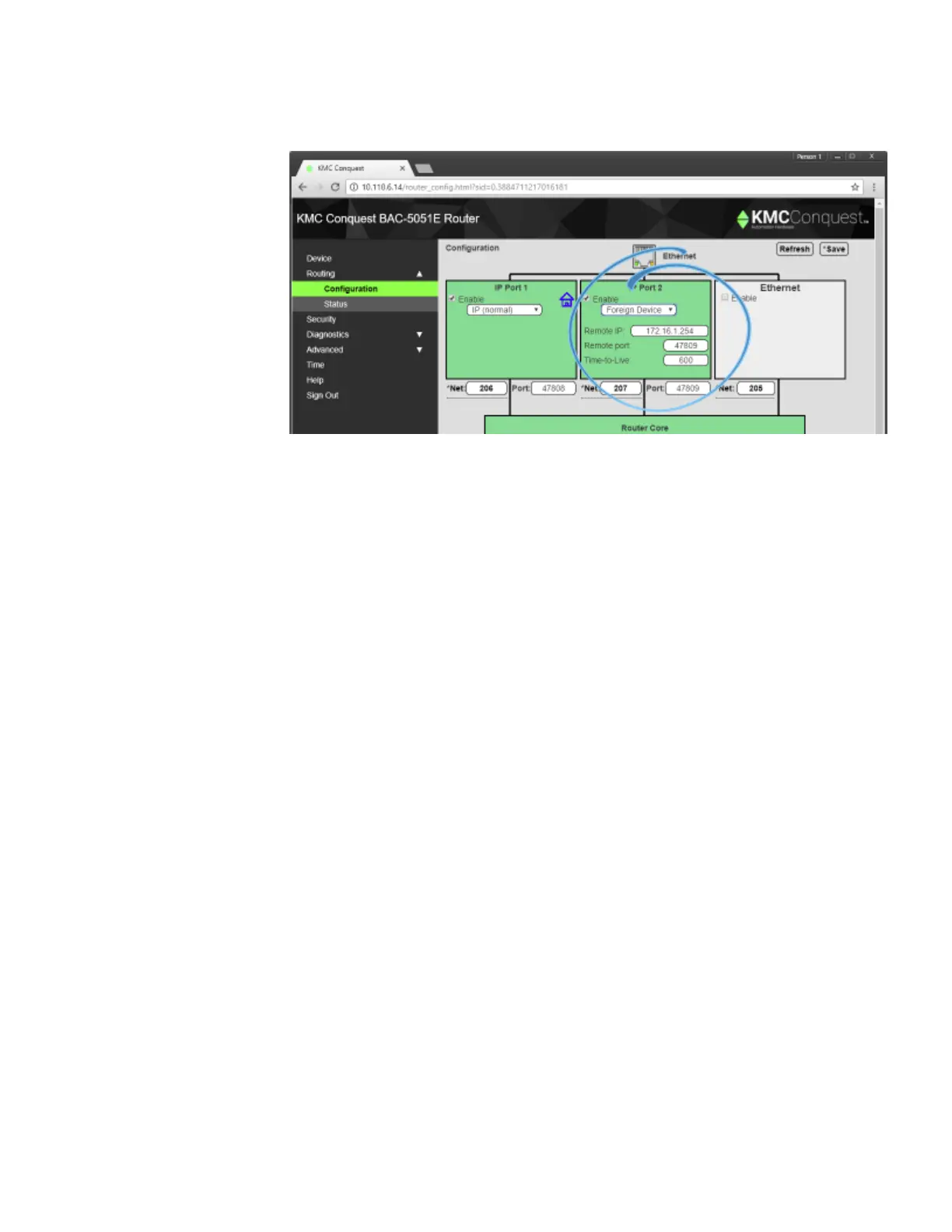

5 Set other properties as needed and then click Save.
Note: The router will restart. For additional changes, log in again.
Enable Select to enable the network. The port block turns green when enabled.
Net Designates the BACnet network number for the port. Assign network numbers in the
range from 1 to 65534.
Port Assign a unique UDP port number to each of the enabled IP networks. The default port
number is 47808.
Remote IP Enter the address of the remote BBMD. If network address translation (NAT) is
used between the BAC-5051E router and the BBMD, contact the network system
administrator for the correct public IP address.
Remote Port Enter the port number of the remote BBMD. If port address translation (PAT) is
used between the BAC-5051E router and the BBMD, contact the network system
administrator for the correct public UDP port.
Time To Live Sets the interval at which the router sends a registration message to the
BBMD with which it is registered. The valid time range is 1-65535 seconds.
If the BBMD does not receive a registration message within the value of the period set by
Time To Live plus 30 seconds, the BBMD will remove the router from its foreign device table
and will not send broadcast messages to the router.
Other IProuting protocols
l BACnet IP routing on page 27
l BACnet Broadcast Management Device routing on page 30
l BACnet PAD routing on page 32
l Router Core properties page on page 35
BAC-5051E Router Section 3: Setting up routing
Revision J 29
