KMC Controls FlexStat Application Guide

FlexStat (General) 11 Application Guide, Rev L
 MAINMENU
ABOUT
ADVANCED
ALARM
DATE/TIME
SCHEDULE
SETPOINTS
SYSTEM
 ADVANCED
APPLICATION
CBPROGRAMS
COMMUNICATION
DATE/TIME
DEVICE
INPUTS
LIMITS

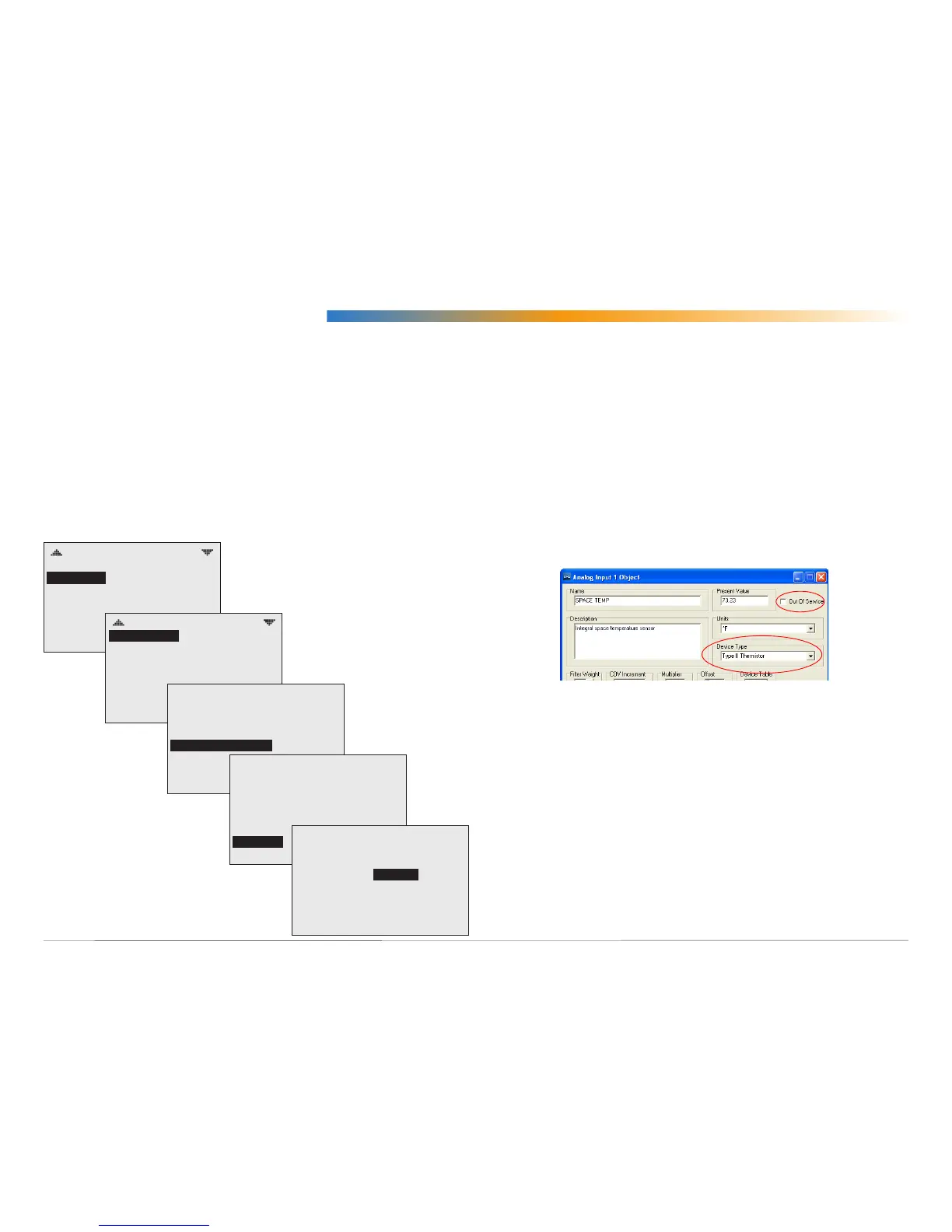

Adding a Remote Temperature Sensor to an Input
For space temperature, the FlexStat uses an internal sensor tied to Ana-
log Input #1. However, a thermistor can also be connected to one of the
extra inputs (2 though 4 and 7 through 9) as a remote room temperature
sensor. (Not all applications may have extra inputs available—see the
Sample Application sections.)
In the BAC-12xxxx/13xxxx/14xxxx FlexStats with six external inputs, the
Input 7 sensor (AI7) can be congured for a remote space temperature
sensor through the menus. Then space temperature can be congured
for onboard (internal AI1), remote (AI7), averaging of the two, the low-
est reading, or the highest reading.
Sample Custom Applications
In BAC-1xxxx FlexStats with only three external inputs, to have the re-
mote sensor’s value shown on the FlexStat display instead of the internal
sensor’s, do the following in BACstage or TotalControl:
1. Congure the original space temperature AI1 object to “Out Of
Service.”
2. Congure the input for the added room temperature sensor input.
(Type III is the default thermistor type for AI2–AI4 and AI7–AI9.)
3. Add the following Control Basic program. (In this example, the ap-
plication has input #2 open—use another input instead as needed.)
AI1 = AI2
4. Restart the FlexStat.
 APPLICATION
DEGREESSCALE:°F
APP:FANCOIL
OPT:4-PIPE
ADDITIONALSETUP
 ADDITIONALSETUP
DAMPER
FAN
HUMIDITY
MOTIONSENSOR
OPTIMUMSTART
SENSORS
STAGING
 SENSORSETUP
IN2:NOTUSED
IN9:NOTUSED
SPACETEMP:
--IN1ISONBOARD
--IN7ISREMOTE
REMOTE
To use a temperature sensor connected to another controller, see Using
Sensors Connected to Other Controllers on page 15 and use additional
code to map the remote sensor’s present value to AI2 (or other appropri-
ate input).
It may take a minute before the remote temperature starts displaying
correctly. To calibrate the sensor, see Calibrating a (Temperature) Sensor
on page 12 and use the appropriate input.
NOTE: The Home screen can display temperatures from –99 to
999 (with rmware version R1.3.0.8 or later). Temperatures
between –9.9 and 99.9 degrees can be (if enabled in the User
Interface menu) displayed with tenths of a degree.
