Field A
Screen Title
Icons
Menu Choices
When BV Present Value = 1, Corresponding Icon Animates

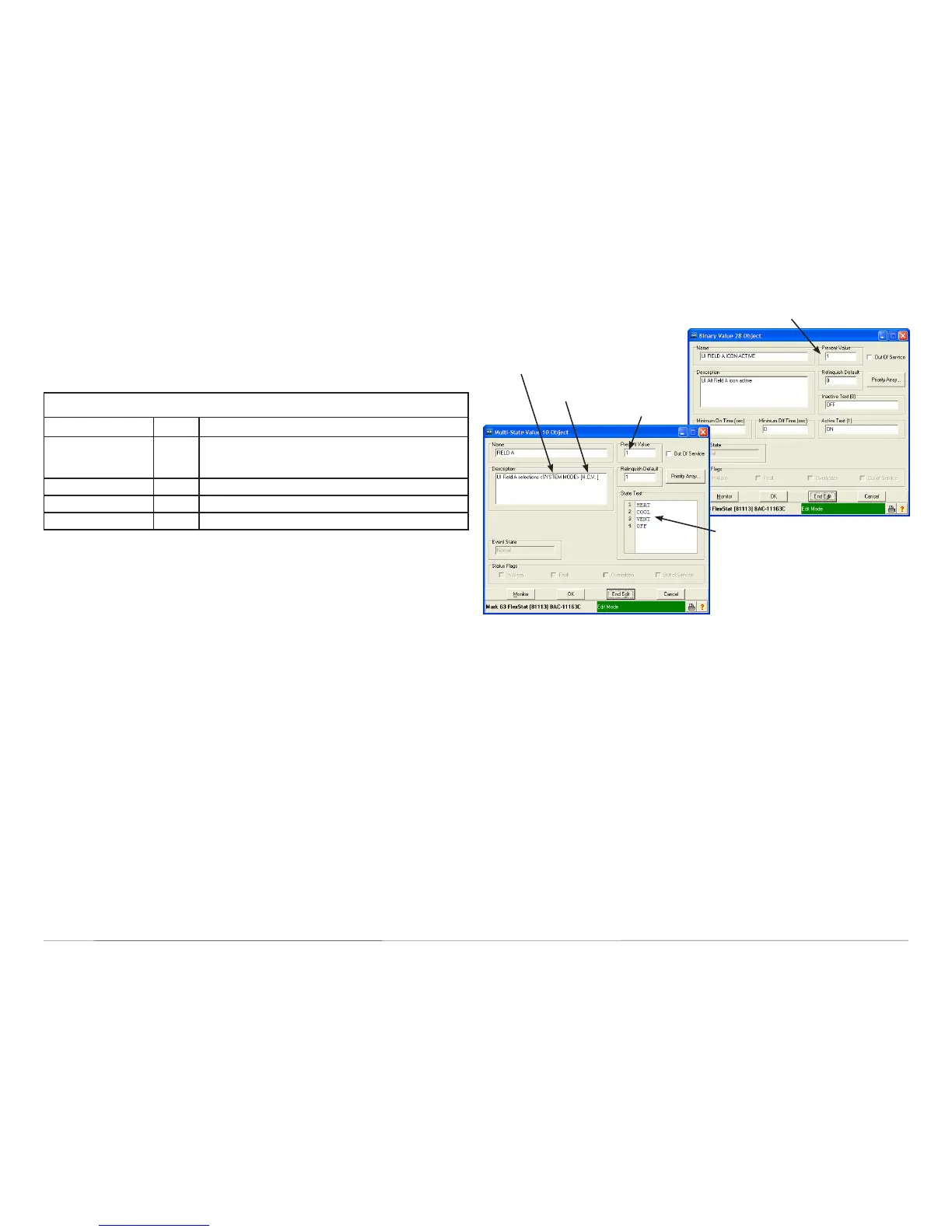

The title for the Field A and B screens is obtained from the text contained
within the angled brackets (e.g., <TITLE>) of the MSV Description prop-
erty.
Field C is not changeable from the user interface. However, text can be
added to the State Text of Field C (MSV12) to provide a desired message
(of up to ten characters) on the Home screen. Control Basic could, for
example, be used to display “No Disturb” or “Clean Room” according to
an external switch position.
Aer custom text and icons have been congured, restart (cold start)
the FlexStat to complete the process!
NOTE: Firmware earlier than R1.3.0.11 did not support Hospitality
mode at all, and R1.3.0.11 natively supported only FCU or HPU
applications in Hospitality mode. To use Hospitality mode for
AHU or RTU applications in R1.3.0.11, a custom Control Basic
program must read MSV10 and MSV11 and use those values to
control the relevant functions—or simply upgrade to the latest
rmware for full functionality. For more information on custom
programming, see Custom Programming on page 8.)
Programming Custom Text for Hospitality Mode
On the Home screen, menu items (“state” text) for Fields A, B, and C ap-
pear to the le of the associated icon (if any). The displayed state text is
limited to seven characters for A and B and ten for C.
Hospitality Mode Multi-State Variables
Function Variable Comments
User Interface
(UI) Mode
MSV9
(1 = Standard Mode)
2= Hospitality Mode
(3 = Locked UI Mode)
Field A (Left Button) MSV10 Present Value Selects Menu Text (BV28 =1 Animates Icon)
Field B (Right Button) MSV11 Present Value Selects Menu Text (BV29 =1 Animates Icon)
Field C MSV12 Present Value Selects Menu Text (BV30 =1 Animates Icon)
NOTE: In TotalControl, to create, edit, or delete any of the state text
elds, right-click in the box and select the desired function
from the pop-up context-sensitive menu.
NOTE: The state text is automatically centered in its respective eld on
the home screen display.
Each state text (menu item) of the Field A, B, and C can have an icon
associated with the state value. The icon selections are contained within
the [] brackets of the MSV Description property. The icon selections (e.g.,
[H, C, V]) are in the state text order with a comma separator (e.g., the
second icon is linked to the second state text). Icon choices are:
• B, a space, or no character = Blank (no icon, the default)
• H = Heat (vertical lines, waving when animated)
• C = Cool (snowake, growing when animated)
• F = Fan (four blades, rotating when animated)
• V = Vent (horizontal lines, waving when animated)
• D = Dehumidication (water drop, evaporating when animated)
• W = Humidication (water drop, lling when animated)
Icon animation is controlled by the state of the corresponding BV28,
BV29, or BV30 (see chart).
NOTE: See also the illustration
in Selecting UI Modes
on page 18.
Current
Selection
Among
Menu
Choices
