KMC Controls FlexStat

FlexStat (General) 13 Application Guide, Rev L

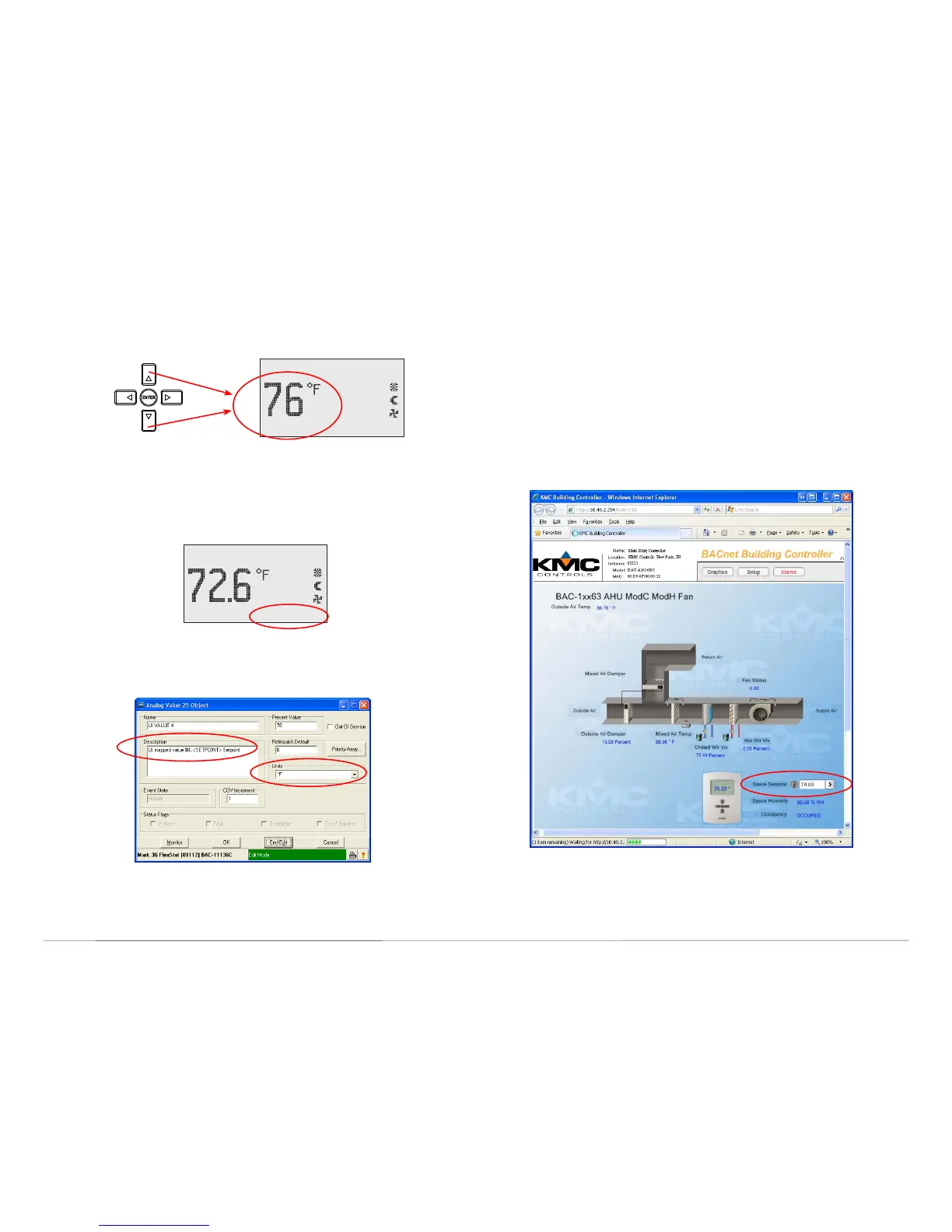

Displaying the Current Setpoint
Method 1
WED11/19  3:20PM
  COOL:
  OCC:
  FAN:
SETHUM:43%RH
From the Home (temperature display) screen, press the Up or Down
arrow buon ONCE to view the current setpoint. (Pressing it more than
once will change the setpoint and start the override mode.) The setpoint
will display for approximately ten seconds.
Method 2
WED11/19  3:20PM
  COOL:
  OCC:
  FAN:
SETPOINT:76°F
At the lower right of the Home screen is a eld that can potentially dis-
play several object Present Values. To permanently display the setpoint
in this eld, use BACstage or TotalControl to do the following:
1. Change AV25 Description to “UI mapped value #4, <SETPOINT>
Current Setpoint” and congure units for ° F (or ° C as needed).
2. Write the following Control Basic program to assign the current
setpoint present value (AV27) to AV25 and congure it to auto-run:
AV25 = AV27
3. Restart the FlexStat.
NOTE: If several readings (objects) are congured to show in the eld,
the eld will sequentially show each one. For models with
humidity sensors (which display HUM:xx%), changing AV22’s
description to “UI mapped value #1, <HUMIDITY> space
humidity” will make the length and spacing of the alternating
setpoint and humidity objects display more consistently.
Method 3
When creating web graphics pages in TotalControl or BACstage, AV27
(the current setpoint) can be monitored and altered from a web page.
See Custom Web Graphics on page 17.
See also Displaying Outside Air Temperature on page 14 and Displaying
Other Objects on page 14.
