SECTION 10
RECIRCULATION SYSTEM
Jan 2003
p. 10-5
05148424
Oil Tank
The oil tank is equipped with the following:
• Visual temperature and level indicator
• Air breather and filter that prevents dirt from being sucked into the
tank whenever the oil level drops, then allows air to escape when the
level rises
• Drain valve, and
• Fill components.
The fill components consists of the Oil Filter Head, Fill Port, and the Fill
Port Cap.
The breather is not a fill component,
and must not be used as a fill point.

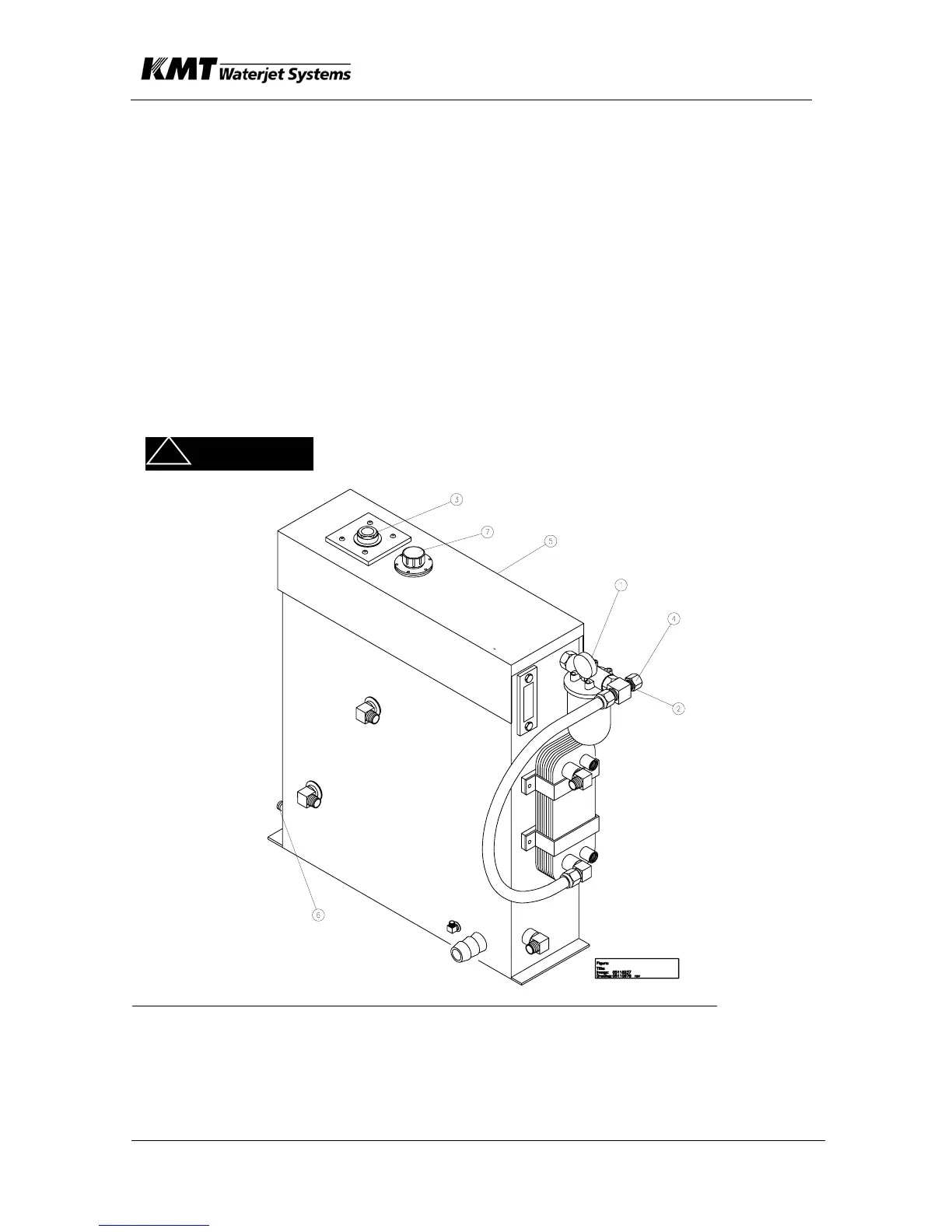

Item Description
(1) Filter Assembly (2) Oil Fill Port (3) Temperature Sensor
(4) Oil Fill Port Cap (5) Oil Tank Cover (6) Shut-Off Valve
(7) Breather
? WARNING
