KMT SL-IV PLUS Series - Page 23

SECTION 2
INSTALLATION
Jan 2003
p. 2-6
80074800

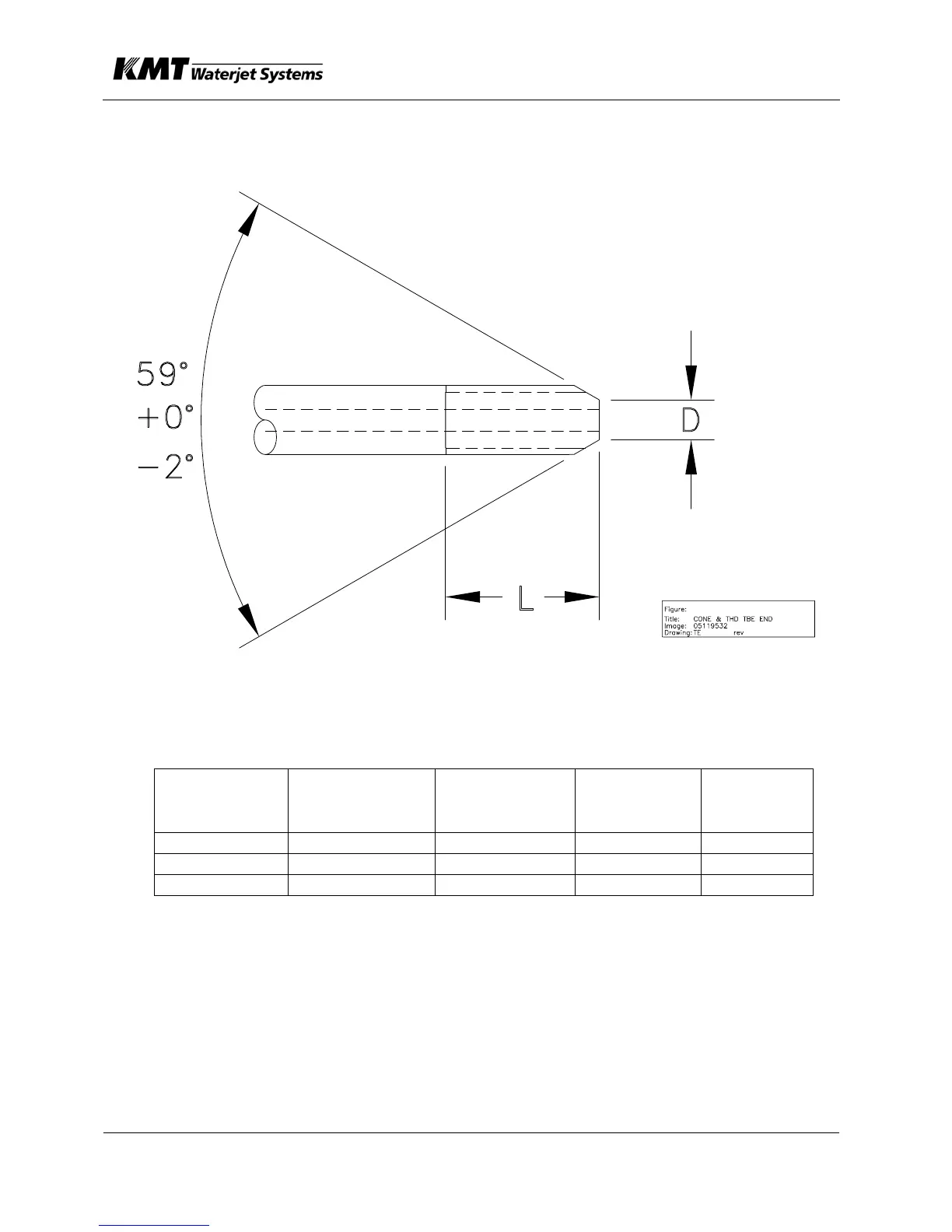

Cone and Thread Tube
Cone and thread both ends of the tube per following diagram and procedure.
Cone and Thread Dimensions
O.D. Size
mm (inch)
I.D. size
mm (inch)
D (max)
mm (inch)
L (max)
mm (inch)
Thread
NF-LH
6.35 (1/4") 2.11 (0.083) 3.58 (0.141) 14.3 (0.562) (1/4"- 28)
9.52 (3/8") 3.18 (0.125) 5.56 (0.219) 19.1 (0.750) (3/8"- 24)
14.27 (9/16") 4.78 (0.188) 7.14 (0.281) 23.8 (0.938) (9/16"- 18)
