SECTION 2

INSTALLATION

Jan 2003

p. 2-7

80074800

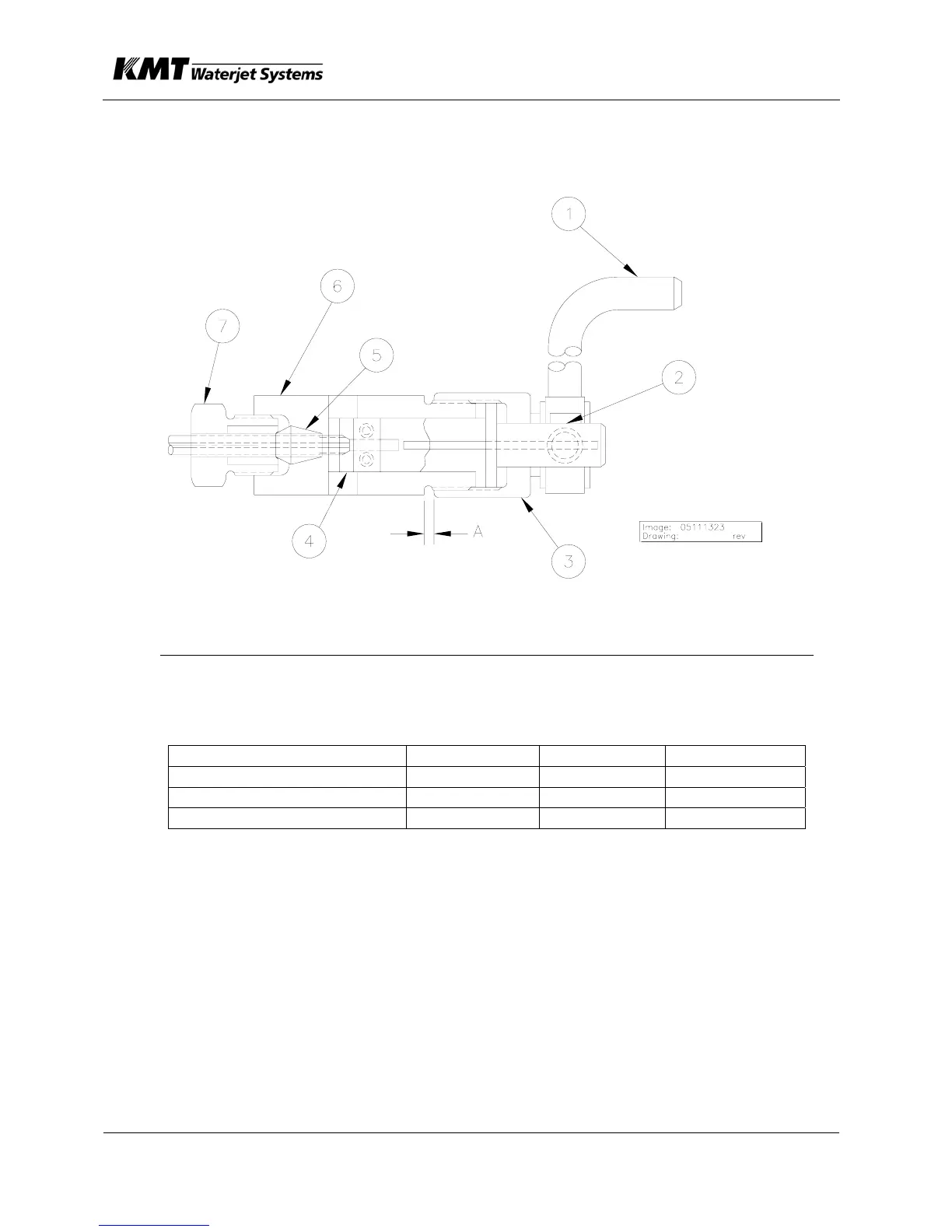

To cone the tubing, use the following figure as reference.

Cone and Threading Tool

Item Description

(1) Cutter Handle (2) Cutter Support (3) Feed Nut

(4) Cutting Blades (5) Collet (6) Housing (7) Gland Nut

Tube Size (inch) 1/4” 3/8” 9/16”

A mm (inch) 3.30 (0.13) 4.07 (0.16) 7.11 (0.28)

Coning Tool (IR Part) 10079556 10097418 10079663

Threading Tool (IR Part) 10079697 10097434 10097442
