SECTION 2
INSTALLATION
Jan 2003
p. 2-9
80074800
HP Tube End Connection - Regular
The following type of connection is for general applications, where the only load
on tubing is due to internal pressure.

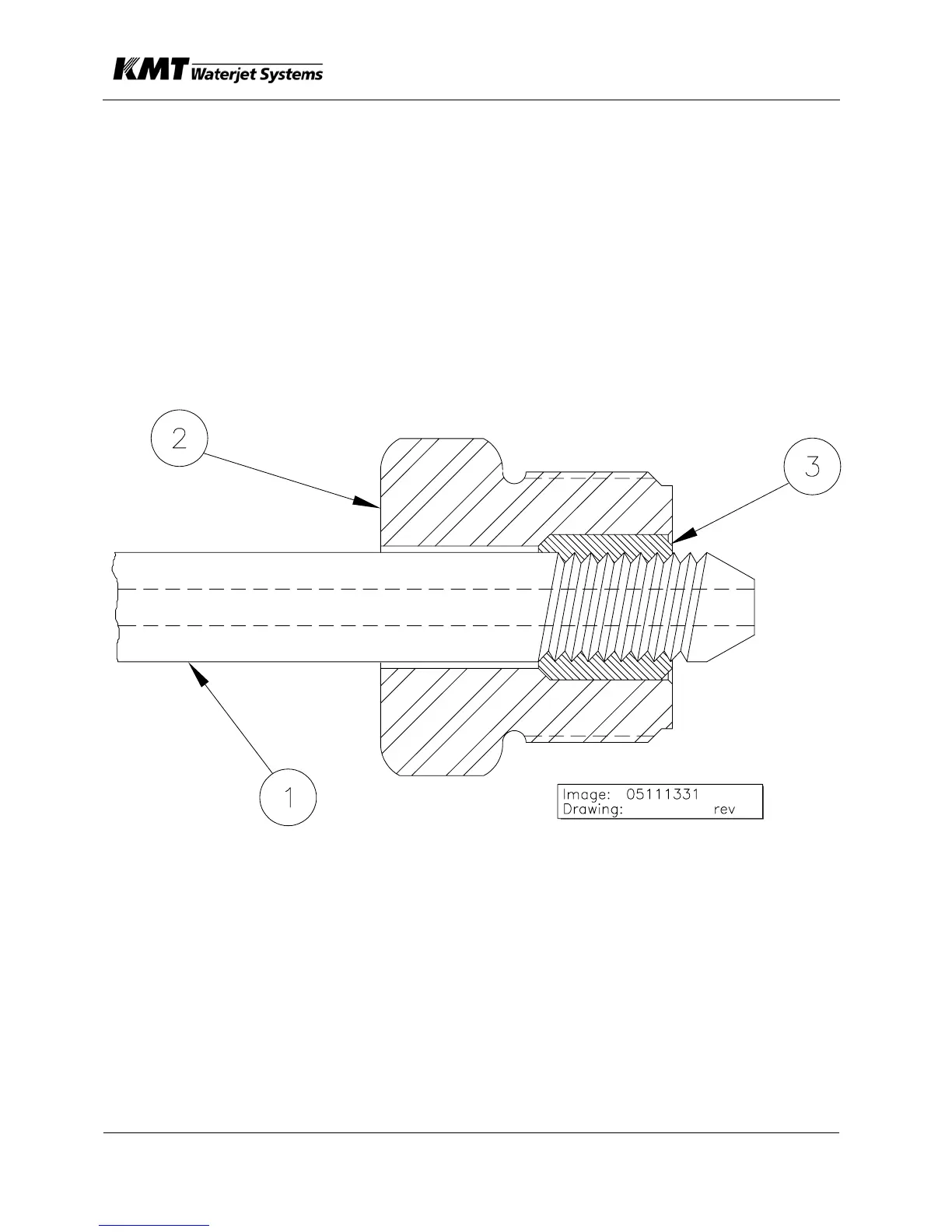

1. Slip the gland nut (2) on the tubing (1) as shown and lubricate the threads
with a light coat of High Purity Goop. Thread the collar (3) on the tubing
until one to two threads are exposed between the collar (3) and the tube
cone.
2. Lubricate the male threads of the gland nut with High Purity Goop. Insert
the tubing assembly into the fitting, engage the gland nut and tighten finger-
tight.
3. Tighten the gland nut to the specified torque given in the torque table.
