SECTION 2
INSTALLATION
Jan 2003
p. 2-10
80074800

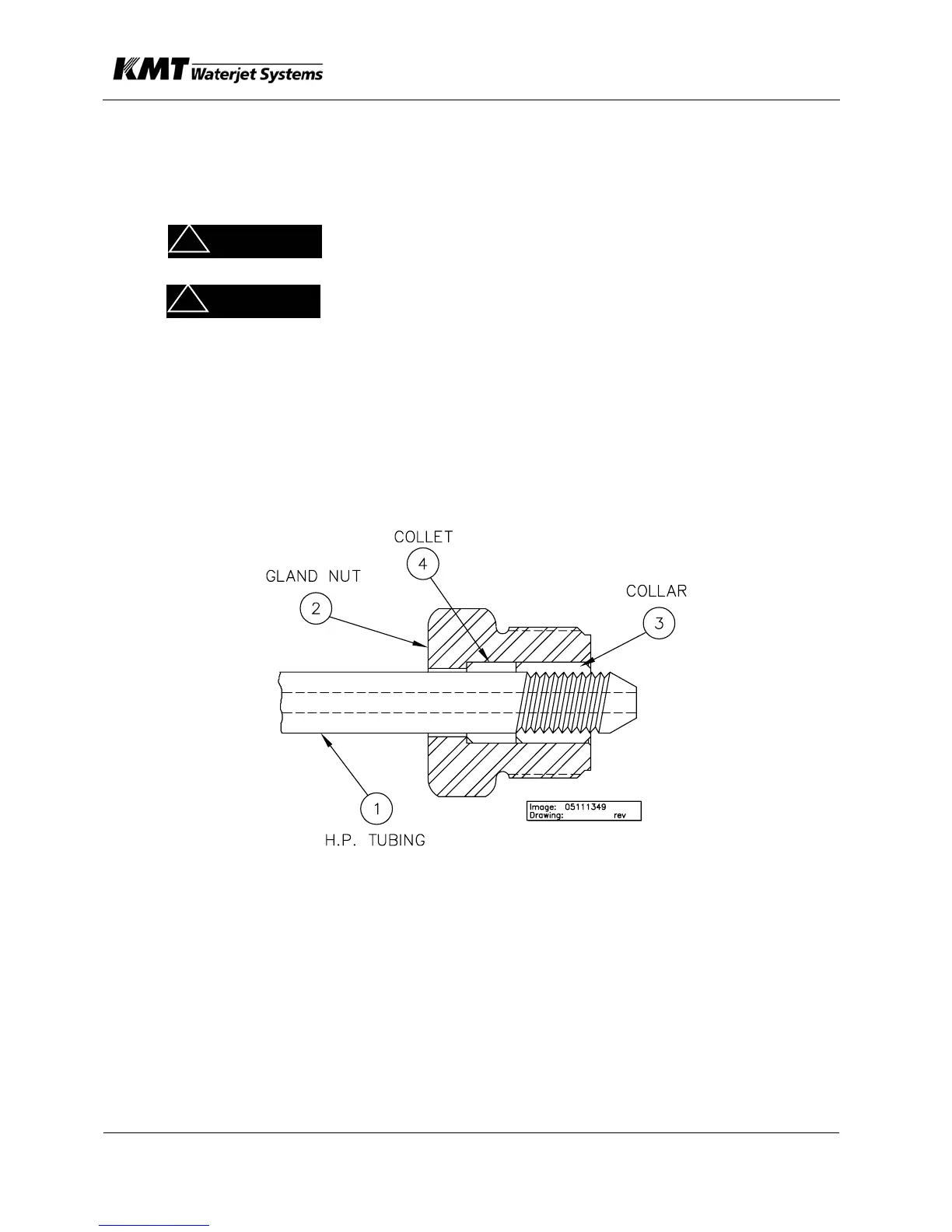

HP Tube End Connection - Antivibration
The following type of connection must be used when tubing will be subjected to
vibration, rotation, movement, and side loads (i.e. whip tubing). Lubricate
threads as above.
Do not depend on end connection to take the tubing load
alone. Proper piping support and guide must be provided.
Do not subject the tubing to torsional (rotational) stress. To
do so will cause premature failure.
1. Slip the gland nut (2) and the anti-vibration collet (4) on the tubing (1).
Thread the collar (3) on the tube until one to two threads are exposed
between the collar and the tube cone.
2. Lubricate the male threads of the gland nut with High Purity Goop. Insert
the tubing assembly into the fitting, engage the gland nut and finger tighten.
3. Tighten the gland nut to the specified torque according to the table of
Recommended Torque Values in this section.
1.1.1.4
ARNING
1.1.1.5
ARNING
