KMW 1220 - SPECIFICATIONS; Loader Specifications

13
D
F
H
G
A
B
C
E
J
5. SPECIFICATIONS

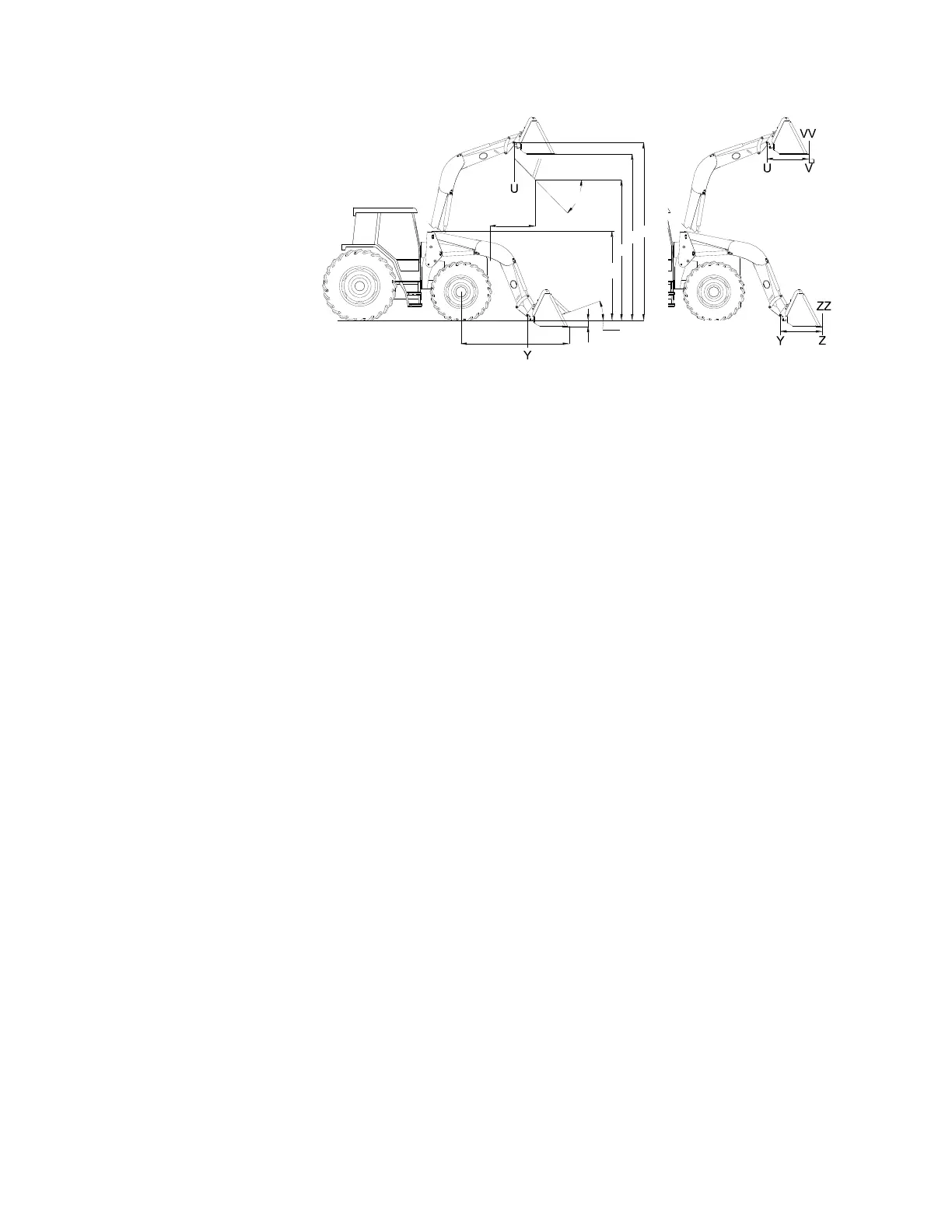

5.1. SPECIFICATIONS OF LOADER
MODEL 1220 1220 HL
A. Maximum Lift Height to Pivot Pin………………………………………………………….10’ 4” (124")….10 ’9” (129”)
B. Maximum Lift Height under Level Bucket……………………………………………....10' 10" (130")…..11’ 3” (135”)
C. Clearance with Bucket Fully Dumped……………………………………………………….8’ 2” (98")……8’ 5” (101”)
D. Reach at Maximum Lift Height……………………………………………………………………….26”……………..26”
E. Maximum Dump Angle………………………………………………………………………………..40°…………….38°
F. Reach with Bucket on Ground………………………………………………………………. 6’ 1” (73")…….6’ 11” (83”)
G. Maximum Rollback Angle…………………………………………………………………………….17°……………..17°
H. Digging Depth…………………………………………………………………………………………5.5”…………….5.5”
J. Overall Height in Carry Position……………………………………………………………………..71”……………..71”
U. Lift Capacity to Maximum Height at Pivot Pin without Self Leveling…………………………3609#...............3550#
V. Lift Capacity to Maximum Height 31.5" Forward of Pivot Pin without Self Leveling………..2406#...............2350#
W. Lift Capacity to 59" Height at Pivot Pin………………………………………………………….5190#........................
X. Lift Capacity to 59" Height 31.5" Forward of Pivot Pin…………………………………………3756#........................
Y. Breakout Force at Ground Line at Pivot Pin…………………………………………………….5340#...............4940#
Z. Breakout Force at Ground Line 31.5" Forward of Pivot Pin…………………………………...3596#...............3200#
VV. Rollback Force at Maximum Height 31.5" Forward of Pivot Pin without Self Leveling……3590#...............3590#
VV. Rollback Force at Maximum Height 31.5" Forward of Pivot Pin w/ Hydraulic S/L………...3400#...............3400#
XX. Rollback Force at 59" Lift Height 31.5" Forward of Pivot Pin……………………………… 4970#...............4970#
ZZ. Rollback Force at Ground Line 31.5" Forward of Pivot Pin………………………………… 3700#..............3700#
PSI……………………………………………………………………………………………… 2950 psi……....2950psi
Lift Cylinder Diameter .......................................................................................................................................... 2.75"
Tilt Cylinder Diameter .......................................................................................................................................... 2.25"
Specifications taken with 72" Skid Steer Bucket.
Specifications based on ASAE standards S301.3 and furnished for general information only as they can vary with
different tractor models. Specifications are subject to change without notice and without liability therefore.
5.2. BUCKET SPECIFICATIONS
STRUCK CAPACITY RATED CAPACITY
72” Skid Steer Standard Capacity Bucket .................................................. .59 cu. yd. ........................... .72 cu. yd.
78” Skid Steer Standard Capacity Bucket .................................................. .64 cu. yd. ........................... .78 cu. yd.
84” Skid Steer Standard Capacity Bucket .................................................. .67 cu. yd. ........................... .81 cu. yd.
MODEL
1220/1220 HL
45 HP to 80 HP
Tractors
