12.3. SKID STEER TOOL CARRIER SYSTEM SERVICE & LUBRICATION
IMPORTANT: To maintain your Skid Steer Tool Carrier System
functioning properly, always keep handle components and
latching areas clean.

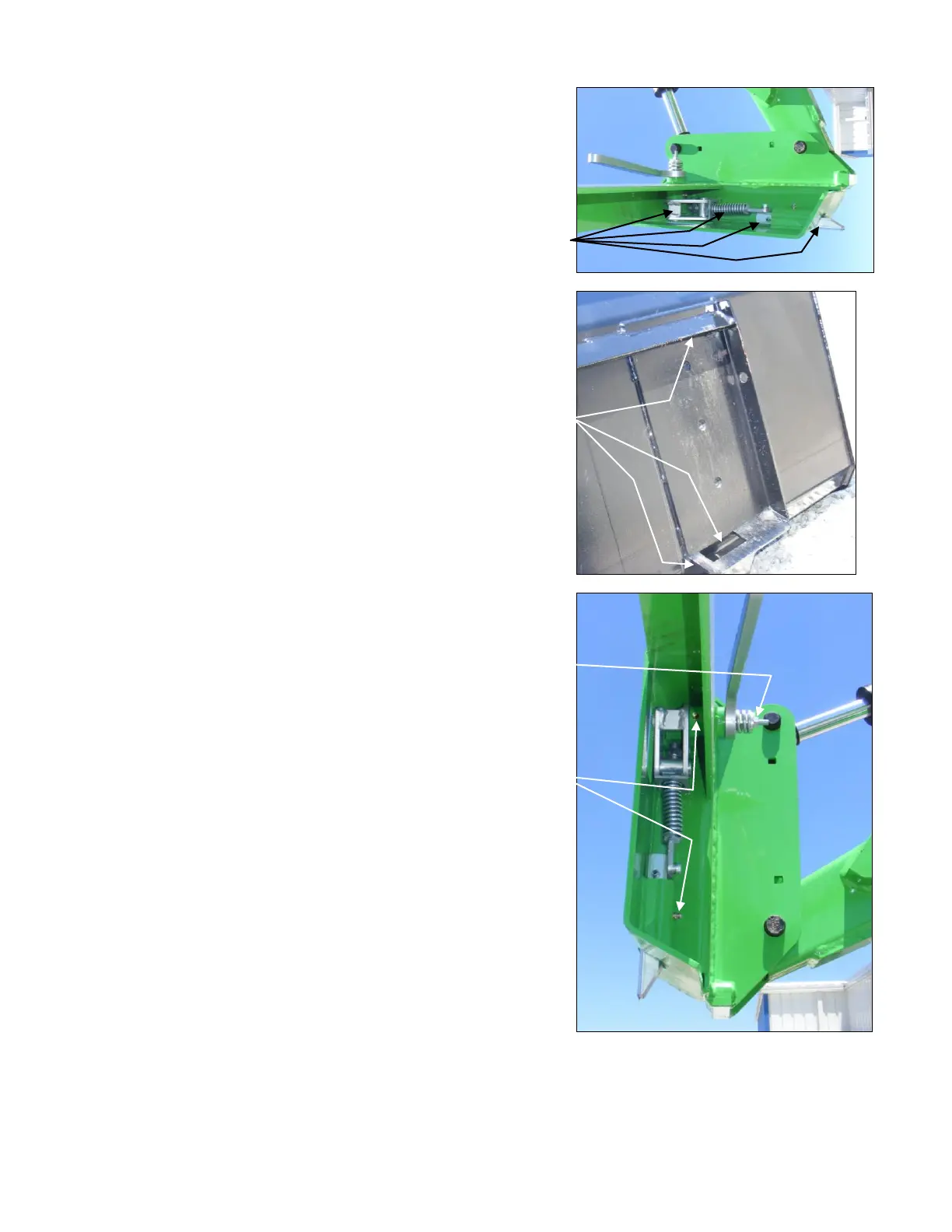

Keep all these areas clean
Keep these areas clean on your attachment
12.3.1. Inspect latching components and pins. If damaged, only
replace with Factory approved components.
Check and tighten this 1/2" bolt
after every 20 hours of operation,
1 place each side
Lubricate these 2 grease fittings,
2 places each side,
every 2 months of operation
12.3.2. Grease skid steer tool carrier as follows:
3. Park bucket or attachment.
4. Grease 2 grease zerks each side as shown.
IMPORTANT: To maintain your Skid Steer Tool Carrier System functioning properly, always inspect Skid
Steer Tool Carrier System components for damage or wear. If damage or wear exists, replace components
immediately.
