7.15. BUCKET LEVEL INDICATOR
7.15.6. After installing loader on tractor, position loader on ground with bucket flat, then paint or mark end of
bucket level indicator rod so operator can identify when bucket is level on ground.

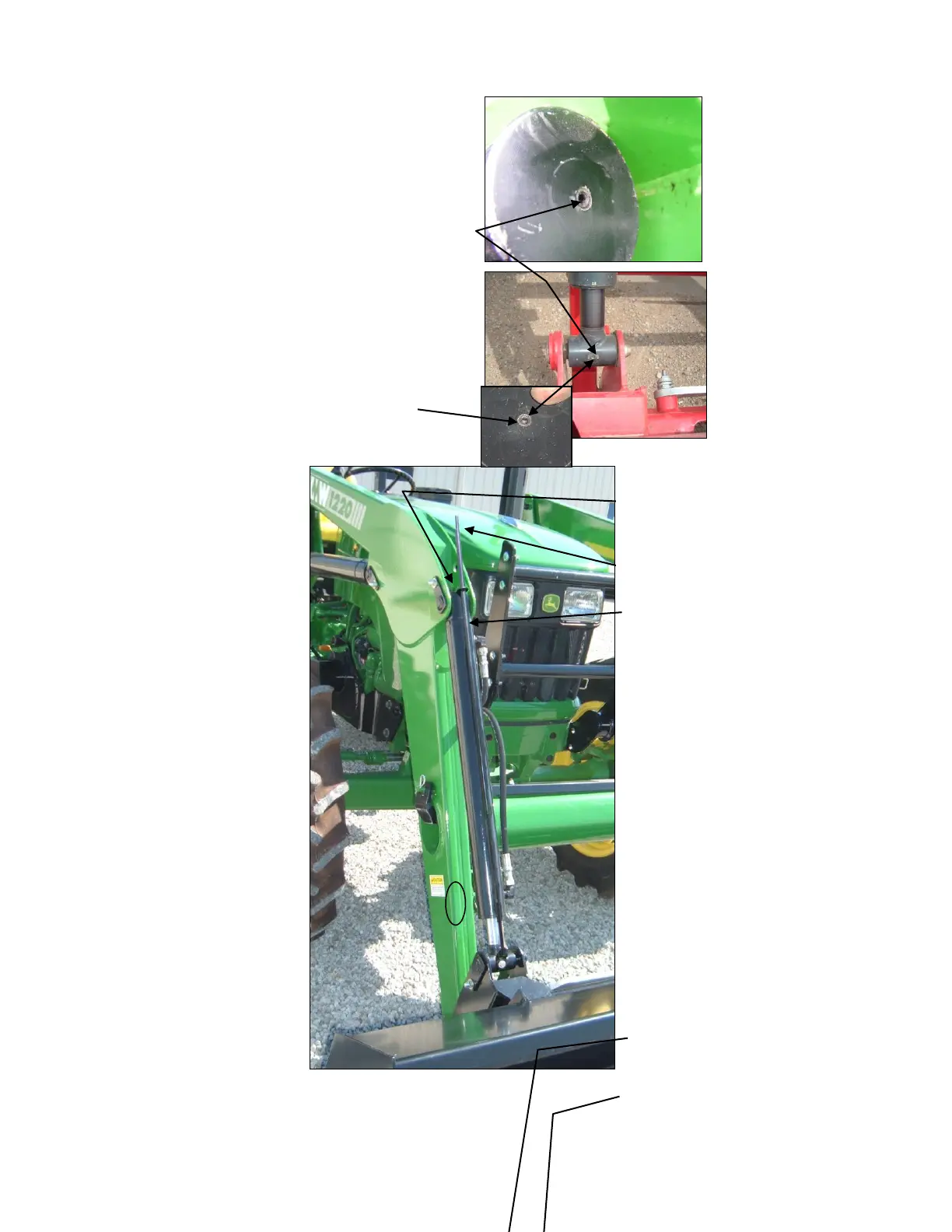

7.15.1. Remove allen head plug from right hand tilt
cylinder base.
Remove allen head plug from right hand tilt cylinder
rod.
Remove Allen Head Plugs
7.15.2. Install bucket level
indicator rod assembly into
bucket level indicator tube
assembly.
7.15.3. Remove allen head
plug from cylinder base end.
Attach bucket level indicator
tube assembly to base end of
RH tilt cylinder using 1/4 x
1/2" hardware.
7.15.4. Remove allen head
plug from cylinder rod end.
Attach bucket level indicator
rod assembly to rod end RH
tilt cylinder using
1/4" x ½” hardware.
7.15.5. Adjust bucket level
tube for proper alignment with
bucket level rod by sliding
slotted bracket to desired
position and tightening bolt.
Hex Bolt 1/4"-28
x ½” Grade 5,
1/4" Lockwasher, and 1/4"
Flatwasher
Painted Rod End
Bucket Level Indicator Tube
Assembly
Bucket Level Indicator Rod
Assembly
Hex Bolt 1/4"-28
x ½” Grade 5, ¼” Flatwasher and
1/4" Lockwasher
Remove allen head
plugs from RH
Bucket Cylinder
base and rod end
To Next Page
