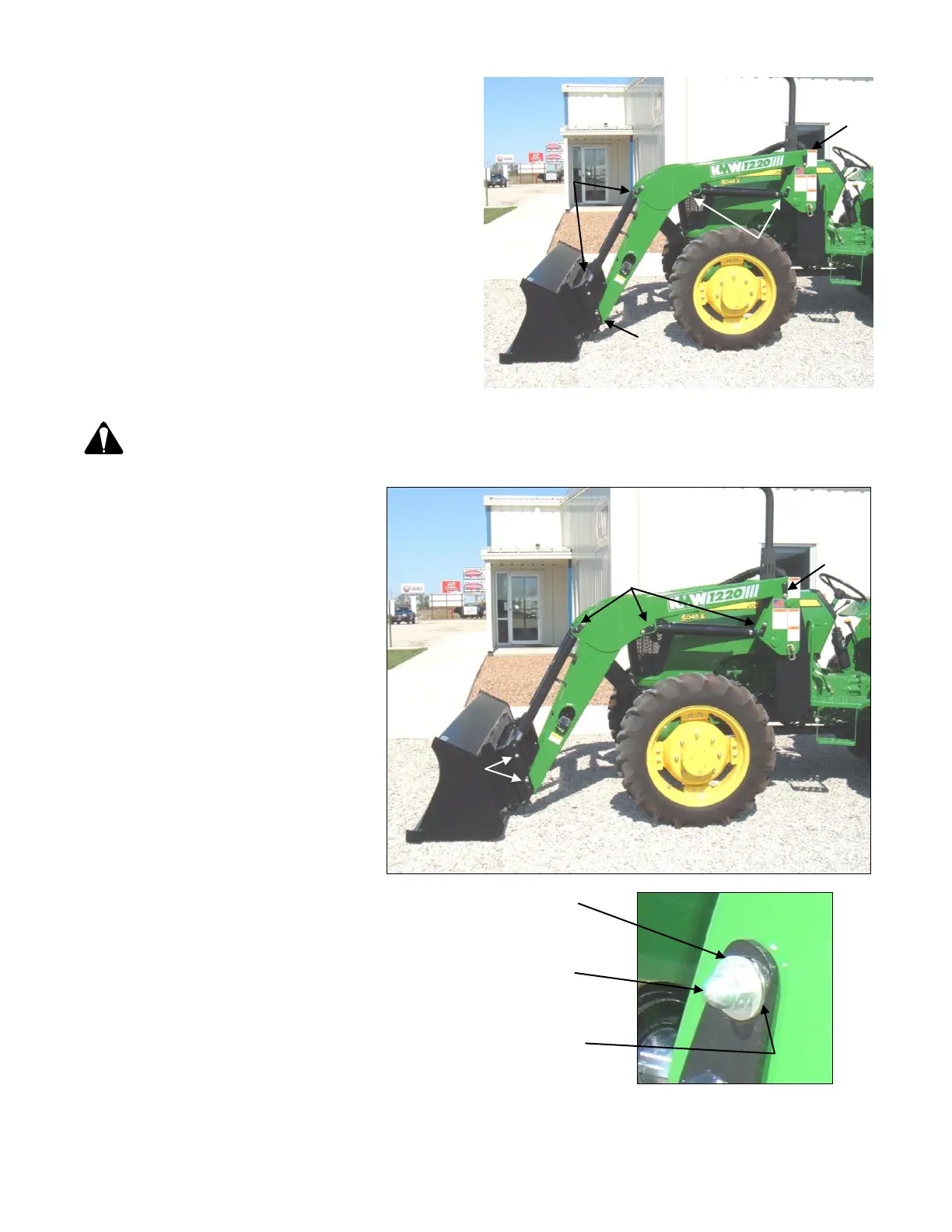

8.2. LOADER LUBRICATION
8.2.1. Position bucket and/or attachment level with
ground, lower loader boom to ground, and relieve all
hydraulic pressure before lubricating.
8.2.2. There are 12 grease fittings one at each pivot
point. Lubricate pivots as specified.
(1) Lubricate these 12 pivot points
every 5 hours of operation.
CAUTION: Do not stand, walk, or work under a raised loader or attachment unless it is securely
blocked or held in position. Accidental movement of a control lever/levers or leaks in the
hydraulic system could cause the loader to drop, or attachment to dump, causing severe injury.
8.2.3. (2) After every 10 hours of loader
operation, check that all pin boss
hardware, washers, and nuts are secure.
Flatwasher
3/8" Hardened,
4 places.
Acorn Lock
Nut 3/8"-16NC,
4 places.
Carriage Bolt
3/8"-16NC x 1"
Grade 5, 4 places,
(not shown)
