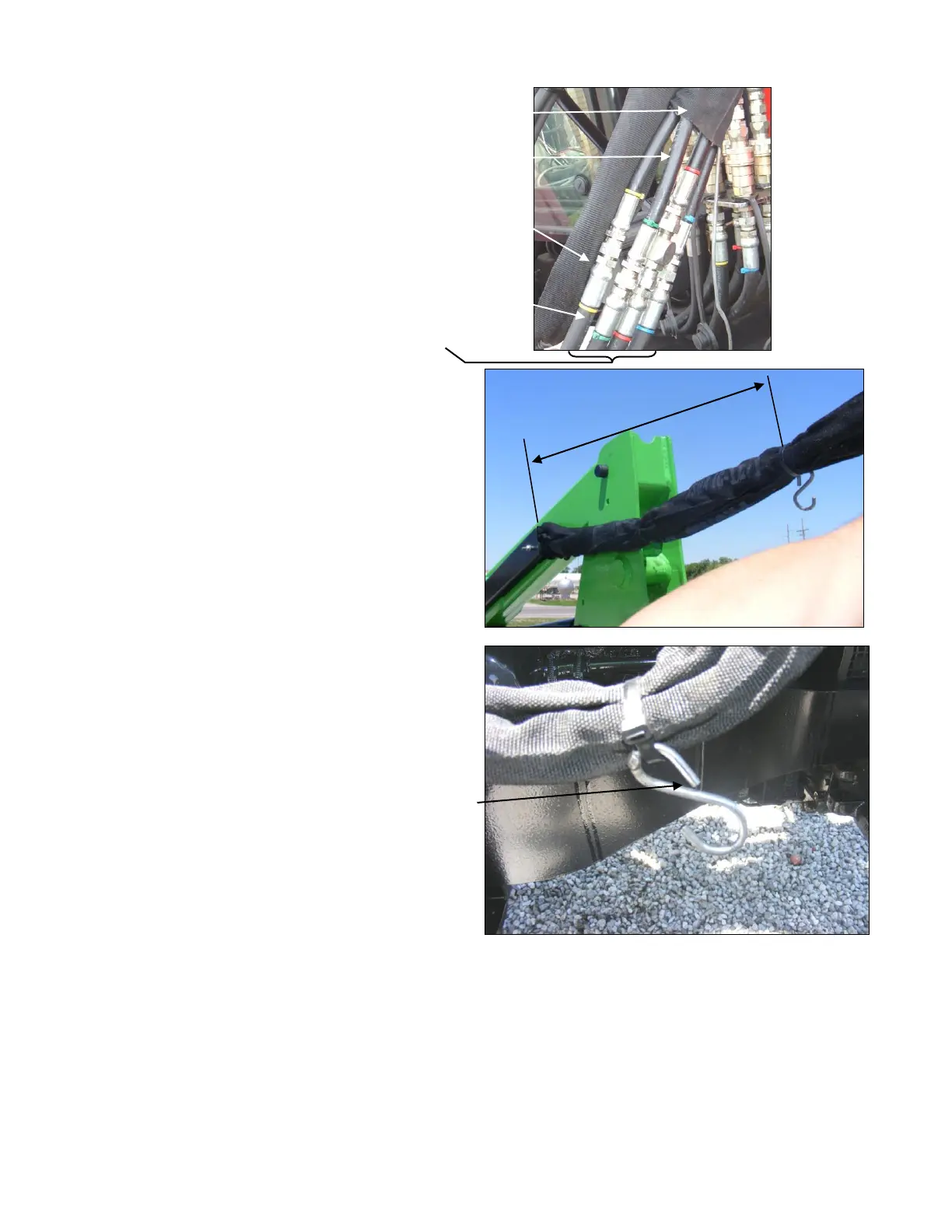

6.3. CONNECT HYDRAULIC HOSES TO LOADER HOSE CIRCUITS
6.3.1. Install color ties to both
ends of remote and/or valve
hoses to be connected to loader
hoses, matching colors on each
end.
6.3.2. Install hose protector over
these hoses.
6.3.3. Connect these hoses to
loader hoses matching color ties
then tighten these fittings.
Loader Hoses
Mark both ends of
Hoses using
Color Ties
before
Installation
Install Remote
and/or Valve Hoses
Install Hose Protector
6.3.4. Install S-hook as shown to loader hoses using
plastic tie strap and dimensions provided if not installed
at factory.
6.3.5. After installing S-hook to hoses using nylon tie,
bend nylon tie end of S-hook closed with pliers to
prevent S-hook from detaching from hoses.
Bend S-hook closed with pliers
Note: 1220 HL loader on some tractor models will not
use S-Hook.
To Next Page
