KMW 1220 - SKID STEER PALLET FORK PROCEDURES; Assembly, Installation, and Operation

53
18.1. SKID STEER PALLET FORK
18.1.1. The Skid Steer Pallet Fork has two tines each 1-1/4" x 4" x 42".
18.2. ASSEMBLY INSTRUCTIONS

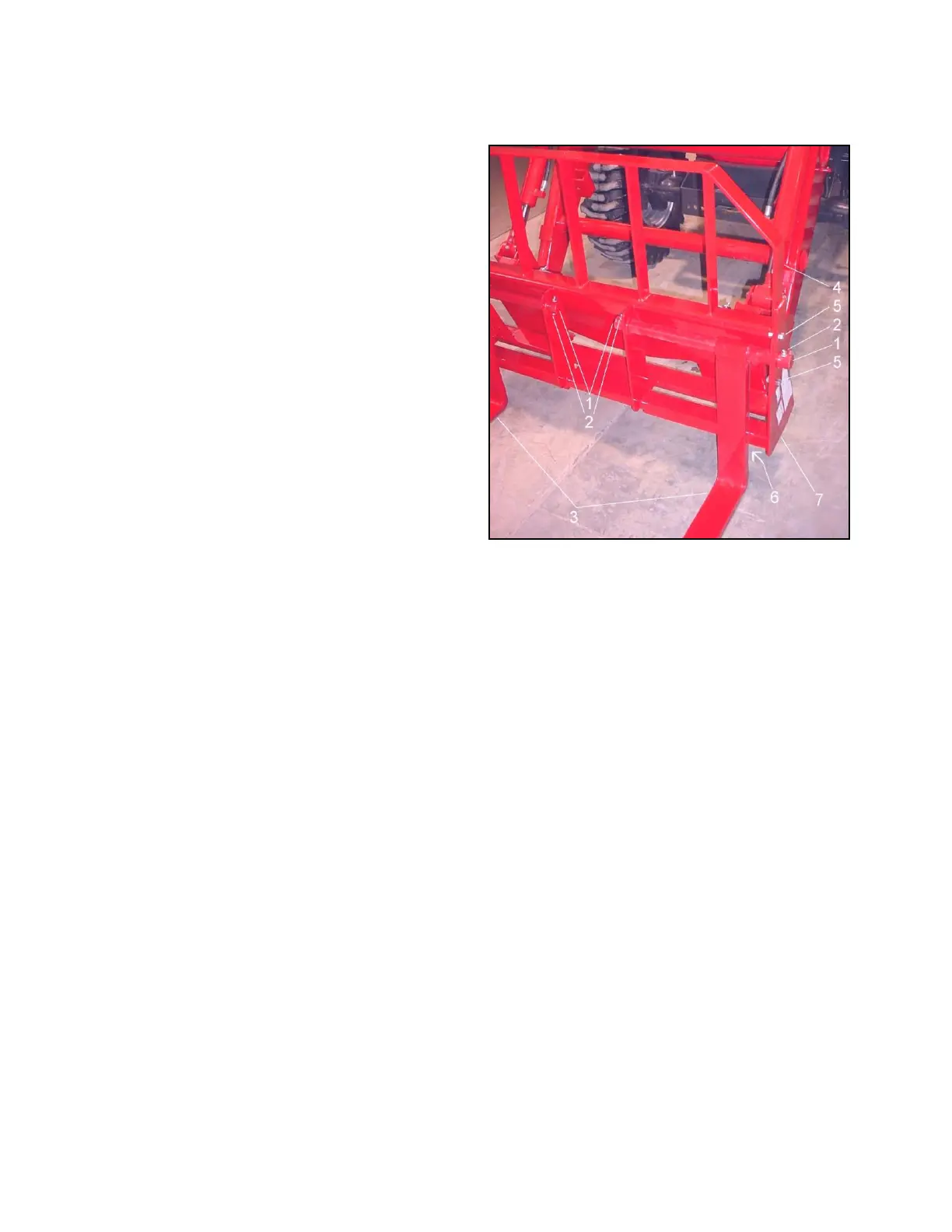

18.2.1. Install (4) guard to (7) pallet fork frame using
(5) 1-2" x 1-1/2" bolt, lockwasher, flatwasher, and nut,
2 places each side.
18.2.2. Install (3) forks to (7) pallet fork frame using
(1) pins, 2 places secure using (2) 3/8" x 2-1/2" bolts,
lockwashers, and nuts, 4 places.
18.2.3. Locate (6) hooks on (3) forks on backside of
angle to prevent fork rotation.
Refer to Pallet Fork illustration in service parts
pages for additional assembly instructions.
18.3. INSTALLATION INSTRUCTIONS TO SKID STEER QUICK ATTACH
IMPORTANT: Refer to Pages 45 to 47 for instructions concerning Installing Attachment to Skid Steer
Quick Attach.
IMPORTANT: Refer to Page 48 for instructions concerning Removing Attachment from Skid Steer Quick
Attach.
18.4. OPERATING INSTRUCTIONS
The operator must keep the load centered and as far back on the forks as possible. Operator must always keep
load level. Carry the load low and at a slow speed.
18.5. PARKING INSTRUCTIONS
Never park loader with Pallet Fork attached to loader. Always dismount loader with bucket attached to loader.
