19. OPTIONAL ORIFICE KIT
FOR USE WITH HYDRAULIC KITS UTILIZING TRACTOR SUPPLIED VALVE

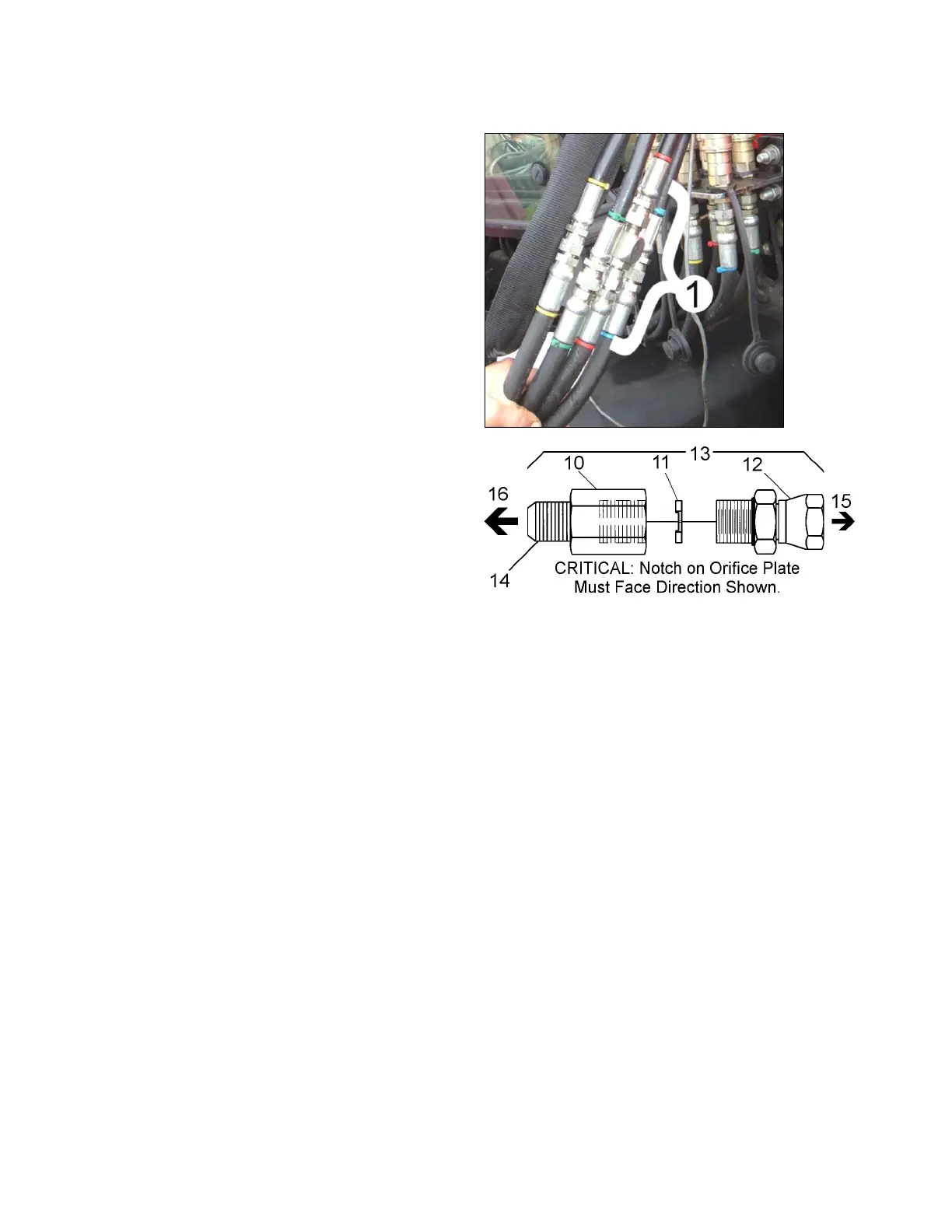

19.1.1. Install orifice fitting into loader tilt cylinder rod
end (identified with Red Tie) if not previously installed
at Factory.
10 Fitting Straight Special
11 (1220/1220 HL Loader) Orifice 0.111"
12 Fitting Straight JICF 3/4" x ORBM 3/4"
13 Fitting Assembly
14 Connect this end to loader hose from loader
Frame.
15 Orifice Oil Flow Direction.
16 Free Flow Oil Direction
IMPORTANT: When installing orifice fitting in system, the free flow oil direction is towards loader and
orificed oil flow is towards valve or tractor remote.
When orifice fitting is installed in system correctly, cavitation of attachment cylinder will be reduced thus reducing
free movement of bucket or attachment, which could be caused by cylinder cavitation.
NOTE: When equipping loader with Hydraulic Self Leveling this orifice fitting will need to be moved to the
location specified in Hydraulic Self Level Installation Instructions.
