KMW 1220 - 28 Lift Cylinder (Cross)

76

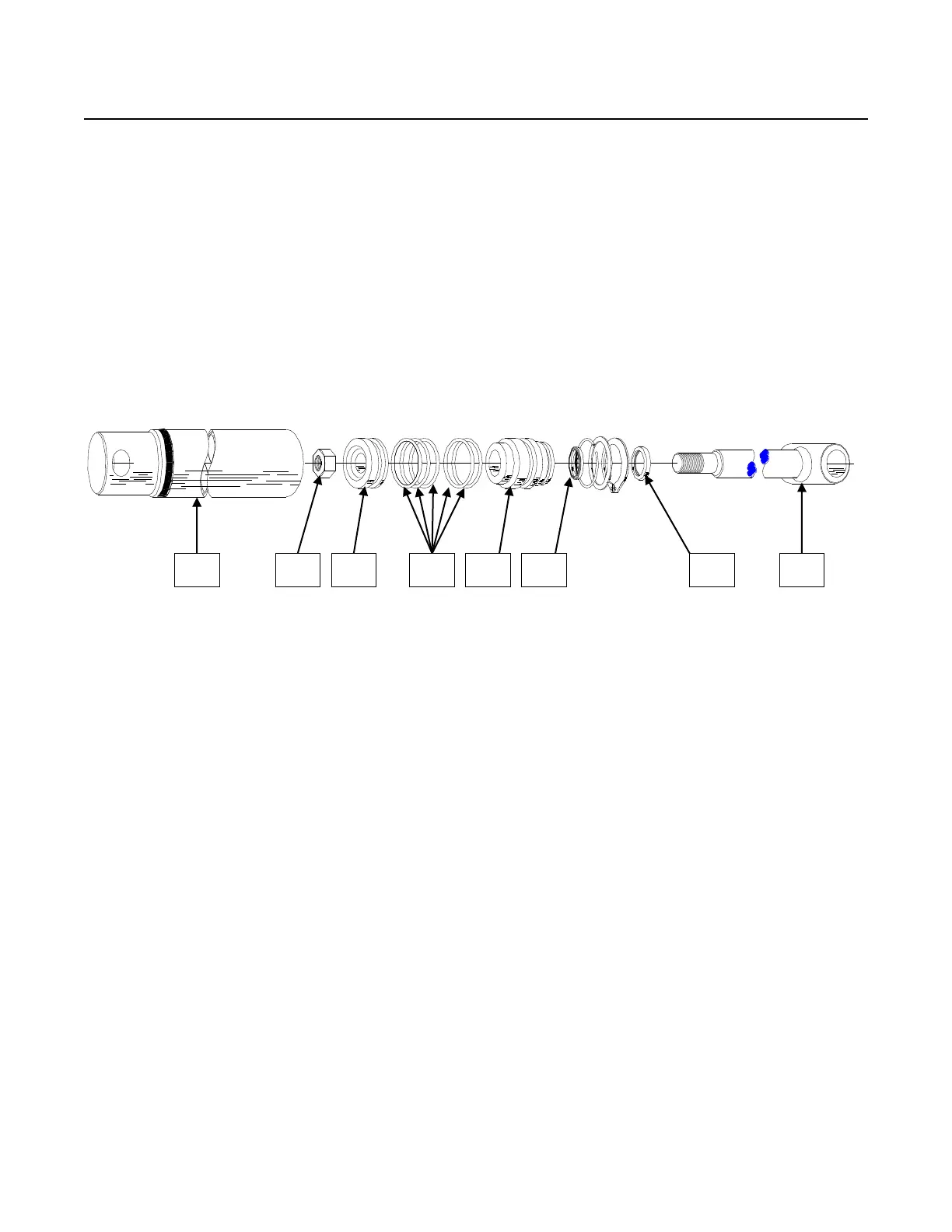

28. LIFT CYLINDER (CROSS)
2.75” x 1.50” Rod x 18.75” Stroke
Reference Description Part No. Qty.
0 .............................. Lift Cylinder (complete) ............................................................3160-2098 ................................ 1
1 .............................. Tube Assembly .........................................................................NSS .......................................... 1
2 .............................. Nut ............................................................................................0530-2015 ................................ 1
3 .............................. Piston .......................................................................................0405-2022 ................................ 1
4 .............................. Seal Kit .....................................................................................0590-2052 ................................ 1
5 .............................. Gland ........................................................................................0330-2029 ................................ 1
6 .............................. Rod Assembly ..........................................................................NSS .......................................... 1
................................ Grease Fitting Straight .............................................................0530-2019 ................................ 2
1
2
3
4
5
4
4
6
