6.2. INSTALLATION
WARNING: To avoid serious injury or death: Read before cutting bands or removing attaching
straps. The loader may shift during shipping and handling, making it unstable on the pallet.
Support loader with an overhead hoist or other suitable means prior to removing bands or
attaching straps securing loader to pallet. Failure to do so could result in accidental tip-over of the
loader that could cause serious injury to you and/or bystanders.
6.2.1. Position the tractor on a hard level surface.
6.2.2. Install mounting brackets on tractor as shown in Installation Instructions
included with your Mounting Kit.

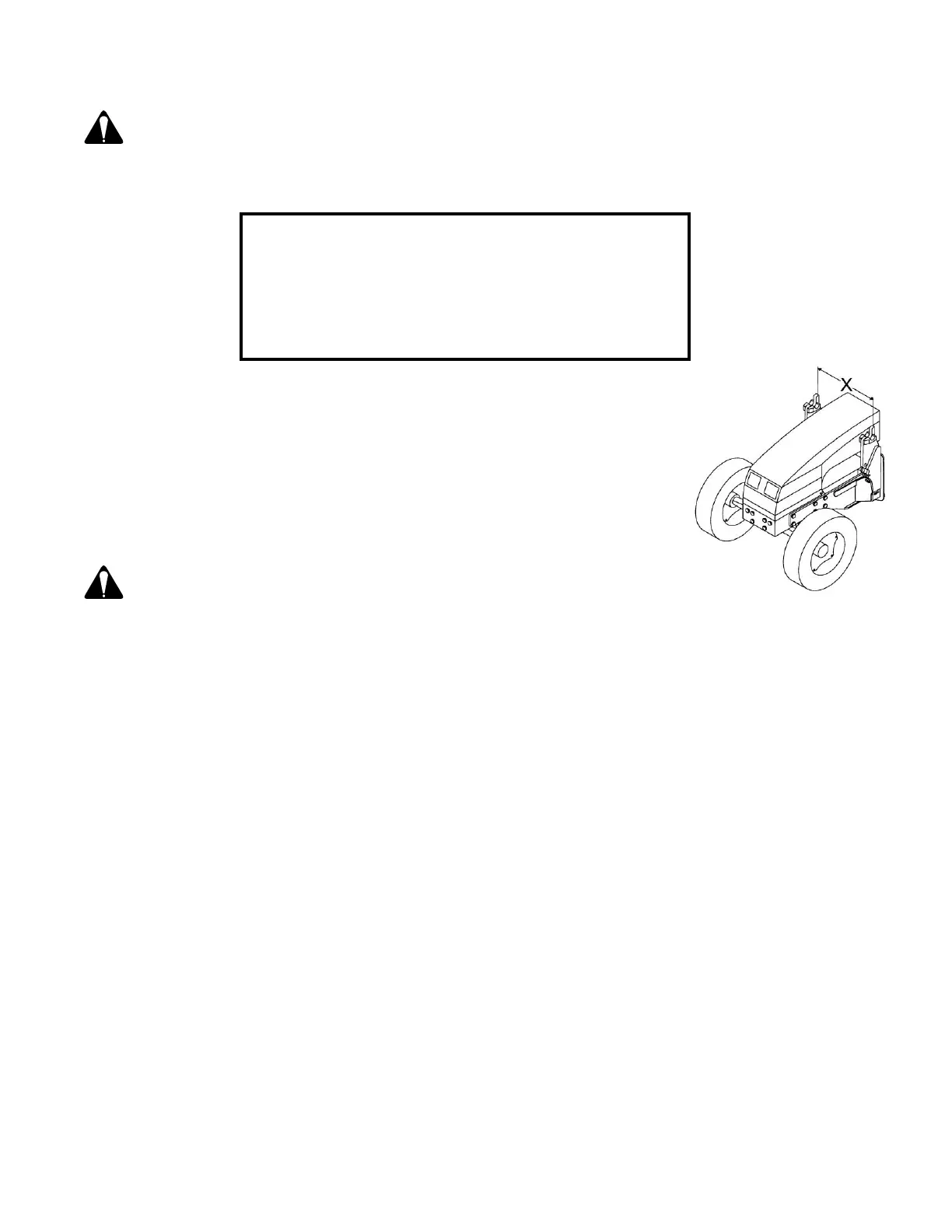

6.2.3. Tighten all bolts equally during installation so that outside surface of brackets
are level and the center line measurement from right hand to left hand mounting
brackets reads plus or minus 1/4" as shown at right.
IMPORTANT: To prevent mounting kit hardware from loosening during operation
always torque mounting kit hardware to specified torque noted in Loader
Operator Manual.
6.2.4. Remove all loader components from shipping packaging.
CAUTION: Lift and support all loader components safely.
Model 1220/1220 HL
X = 42”
IMPORTANT NOTICE
This loader has both standard and metric
fasteners. Verify that the proper fasteners are
placed in the correct locations.
Do not tighten any bolts firmly until all
components are attached onto the tractor.
