14. INSTALLING BUCKET OR ATTACHMENT
TO SKID STEER TOOL CARRIER
IMPORTANT: Refer to Page 44 for instructions concerning Skid Steer Tool Carrier Handles Disengaged
and Engaged Positions.
CAUTION: Before leaving the tractor seat, stop the engine and lock brakes when installing or
removing bucket or attachment.
CAUTION: Do not stand, walk, or work under a raised loader or attachment unless it is securely
blocked or held in position. Accidental movement of valve handle/handles or leaks in the
hydraulic system could cause the loader to drop, or attachment to dump, causing severe injury.
14.1. OPERATING INSTRUCTIONS

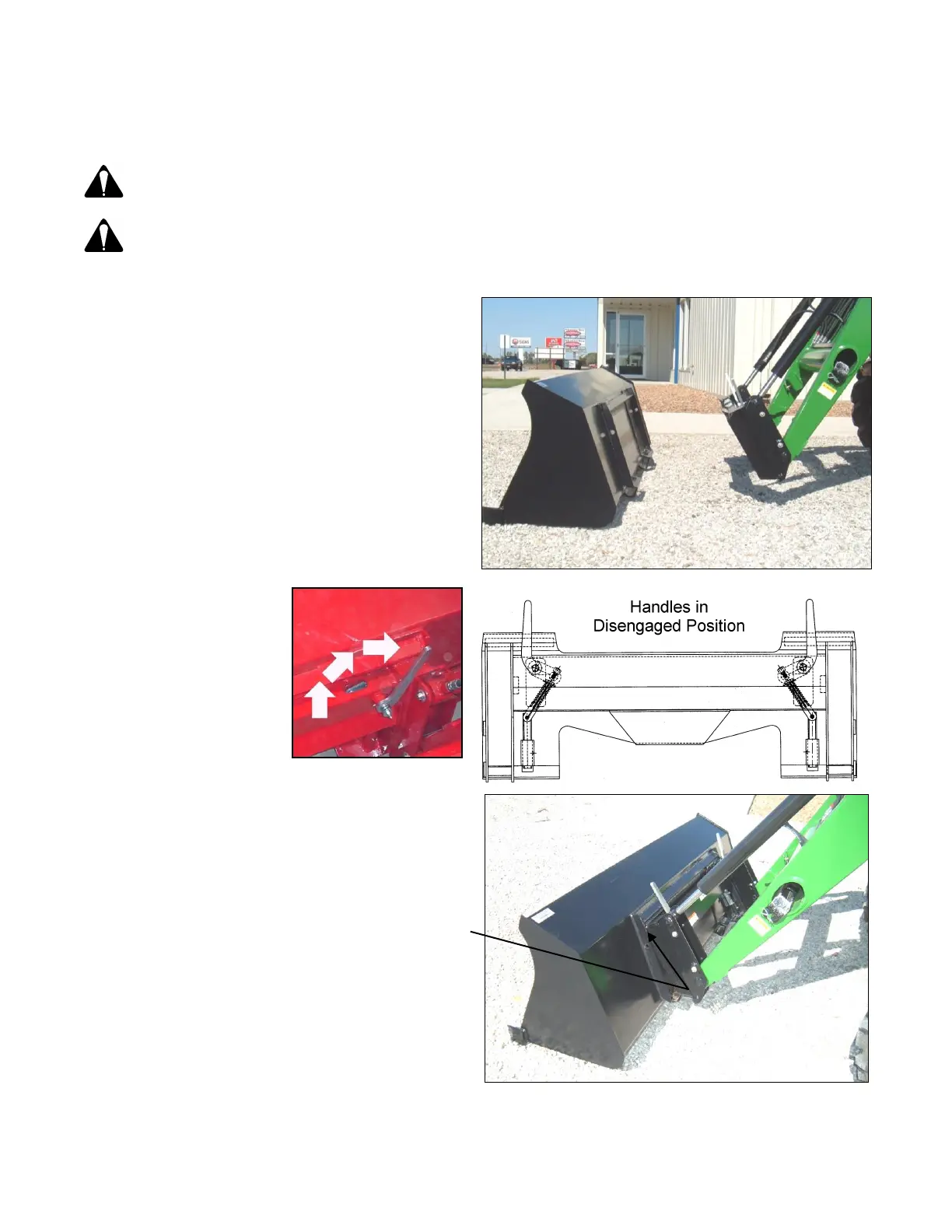

14.1.1. To attach bucket or attachment to loader, lower
loader boom to ground with Skid Steer Tool Carrier
attachment rolled forward slightly.
14.1.2. To position handles
into the handle disengaged
position, pull skid steer tool
carrier handle upward.
14.1.3. Roll Skid Steer Tool Carrier attachment forward
by extending tilt cylinders just enough to allow Skid
Steer Tool Carrier upper vee to engage Skid Steer
attachment vee channel. Drive tractor forward, aligning
Skid Steer Tool Carrier vee components.
Align Skid Steer Tool Carrier vee
with Skid Steer Attachment vee channel.
NOTE: Over extension of tilt cylinders during this
operation could cause damage to Skid Steer Tool
Carrier handles due to handles contacting bucket
or attachment.
