KMW 1220 - 29 Tilt Cylinder (Bailey)

77

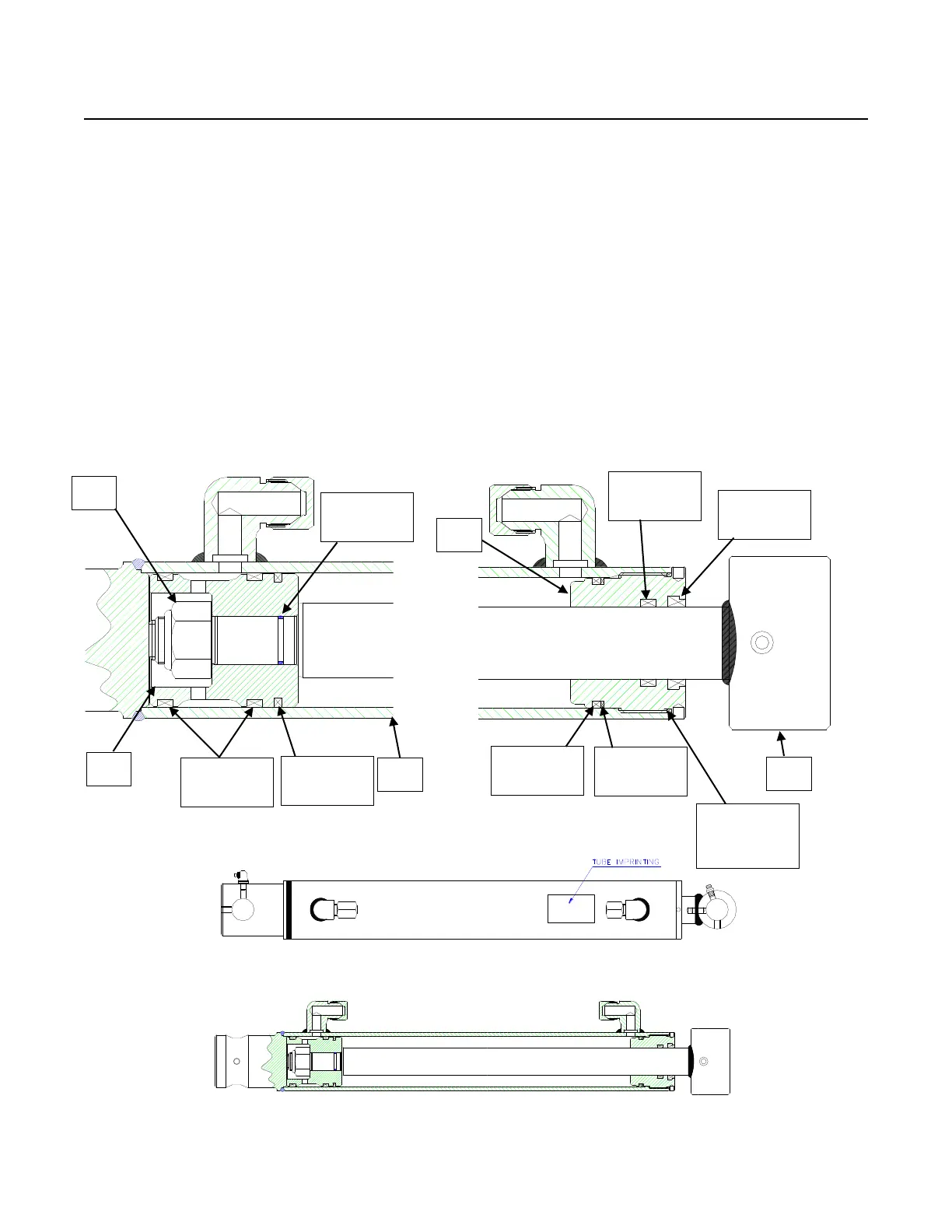

29. TILT CYLINDER (BAILEY)
2.25” x 1.25” Rod x 23.50” Stroke
Reference Description Part No. Qty.
0 .............................. Tilt Cylinder (complete) ............................................................3150-2130 ................................ 1
1 .............................. Tube Assembly .........................................................................NSS .......................................... 1
2 .............................. Nut ............................................................................................0530-2023 ................................ 1
3 .............................. Piston .......................................................................................0405-2054 ................................ 1
4 .............................. Seal Kit .....................................................................................0590-2098 ................................ 1
5 .............................. Gland ........................................................................................0330-2058 ................................ 1
6 .............................. Rod Assembly ..........................................................................NSS .......................................... 1
................................ Grease Fitting Straight .............................................................0530-2024 ................................ 1
................................ Grease Fitting 90° ....................................................................0530-2025 ................................ 1
1
2
3
4 - Wear
Ring
5
6
4 – Piston
Seal
4 – Piston
O-ring
4 – Rod
Seal
4 – Gland
Outer O-
ring
4 – Gland
O-ring
4 – Back-
up Ring
4 – Wiper
Seal
