KMW 1220 - SECURING SKID STEER ATTACHMENTS; Alignment and Handle Engagement

46

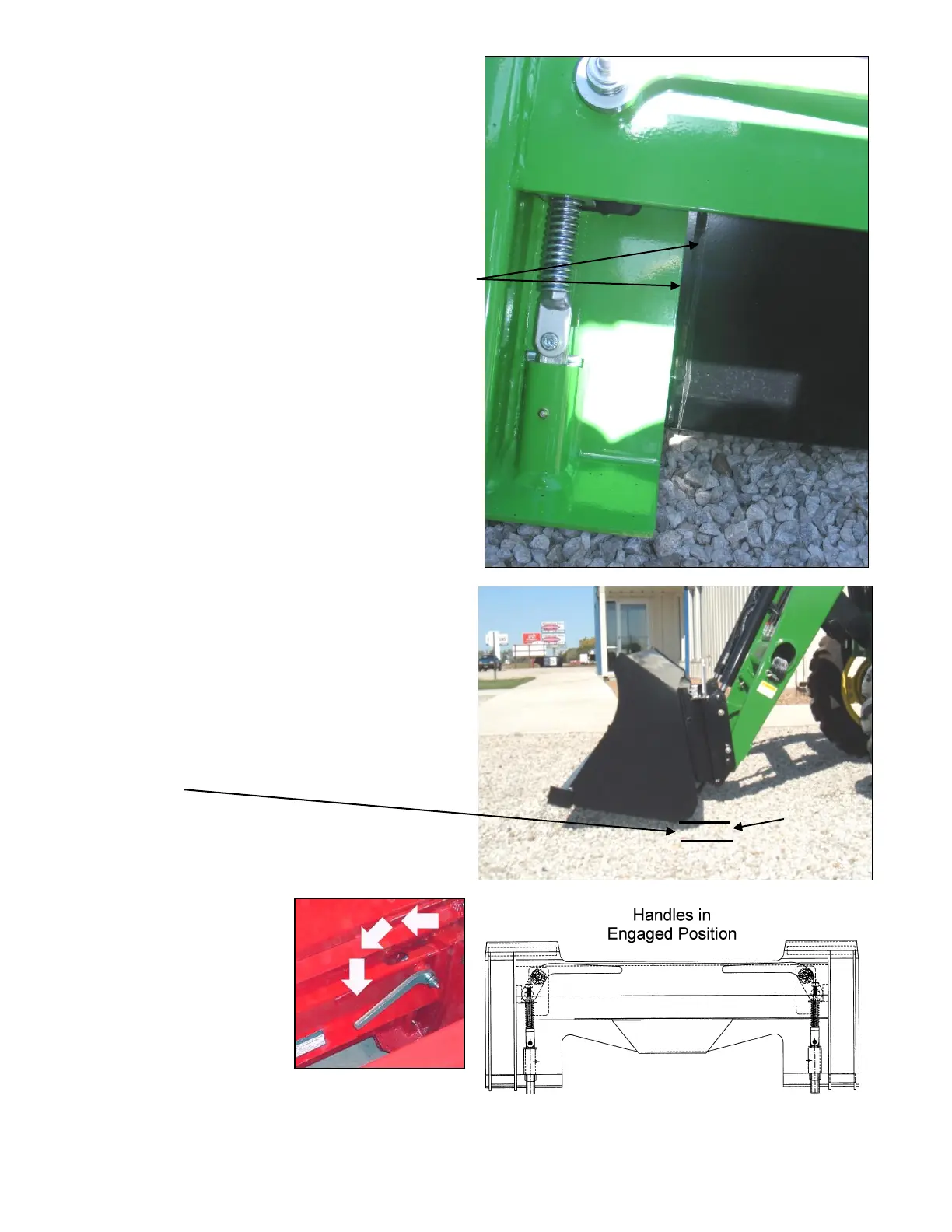

14.1.4. From tractor seat operator will not be able to
see top vee channel during final engagement of
component. However before driving completely in
operator can follow instruction 14.1.3 then align right to
left by aligning tool carrier surface with bucket surface
as specified in photo.
From tractor seat align these two edges after
following step 14.1.3
14.1.5. When Skid Steer Tool Carrier attachment is
aligned with bucket or attachment, raise loader boom
slowly making sure Skid Steer Tool Carrier vee
components engage. Then roll Skid Steer bucket or
attachment back slowly.
14.1.6. Position loader so attachment is approximately
1" off ground.
14.1.7. To position handles
into the handle engaged
position, push skid steer
tool carrier handle
downward until they latch
into position.
NOTE: Handles should
be positioned parallel to
ground if properly
latched.
Push Handles
Downward.
1”
