KMW 1220 - ATTACHMENT SECURITY VERIFICATION; Verifying Secure Attachment

47

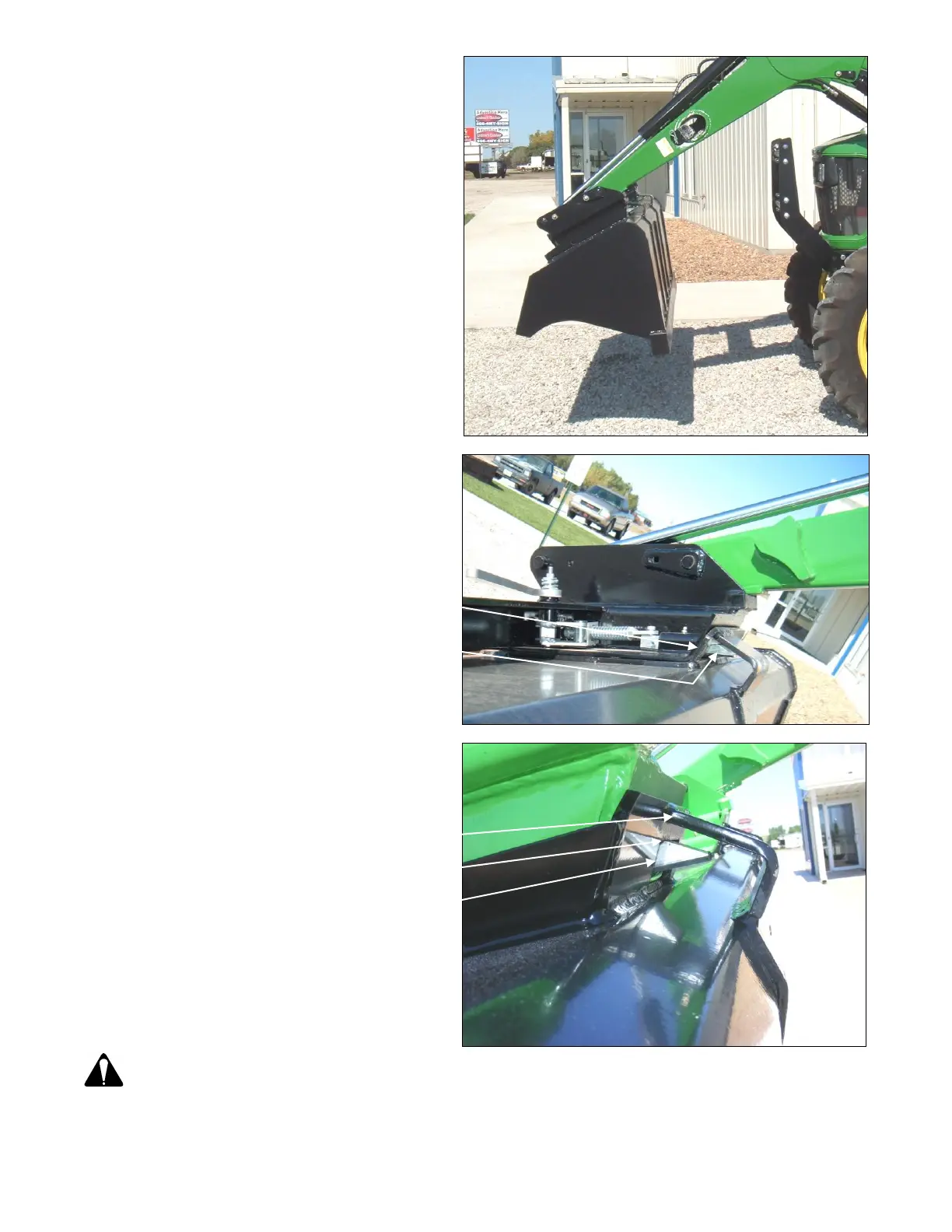

14.1.8. Check that bucket or attachment is securely
attached to Skid Steer Tool Carrier by raising loader
boom 3 to 4 feet, dumping bucket or attachment
against stops, and checking to be sure bottom of
bucket or attachment does not roll forward away
from Skid Steer Tool Carrier Assembly.
14.1.9. Inspect Skid Steer Tool Carrier attaching
areas to verify that Skid Steer Tool Carrier pins have
engaged bucket or attachment fully.
Bucket or Attachment support bar.
Skid Steer Tool Carrier Pin Assembly
engaging bucket or attachment.
IMPORTANT: If properly latched into Skid Steer
Tool Carrier attachment, the lower groove pin
should be contacting pin support bar.
Bucket or Attachment support bar.
Bucket or Attachment contact point.
Skid Steer Tool Carrier Pin Assembly
engaging bucket or attachment.
WARNING: A bucket or attachment that is not securely locked into Skid Steer Tool Carrier could
come off during loader operation causing serious injury or death.
