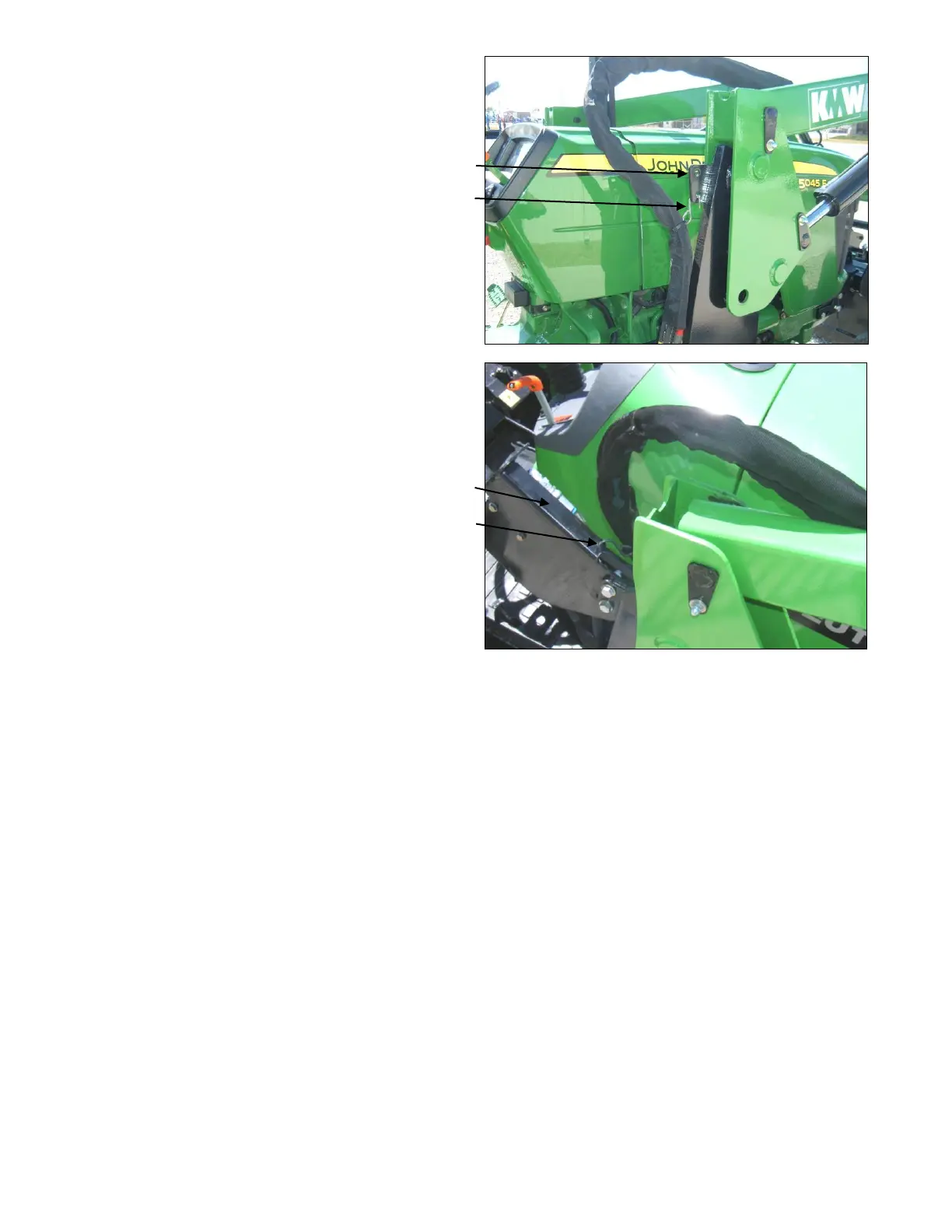

6.3.6. Secure hoses by hooking S-hook to quick
coupler mount tab on RH center bracket as shown if
connected to tractor valve or tractor remotes.
Quick Coupler Mount tab
S-Hook
6.3.7. Secure hoses by hooking S-hook to valve mount
if connected using KMW valve.
Valve Mount
S-Hook
Note: 1220 HL loader on some models will not use S-
Hook.
