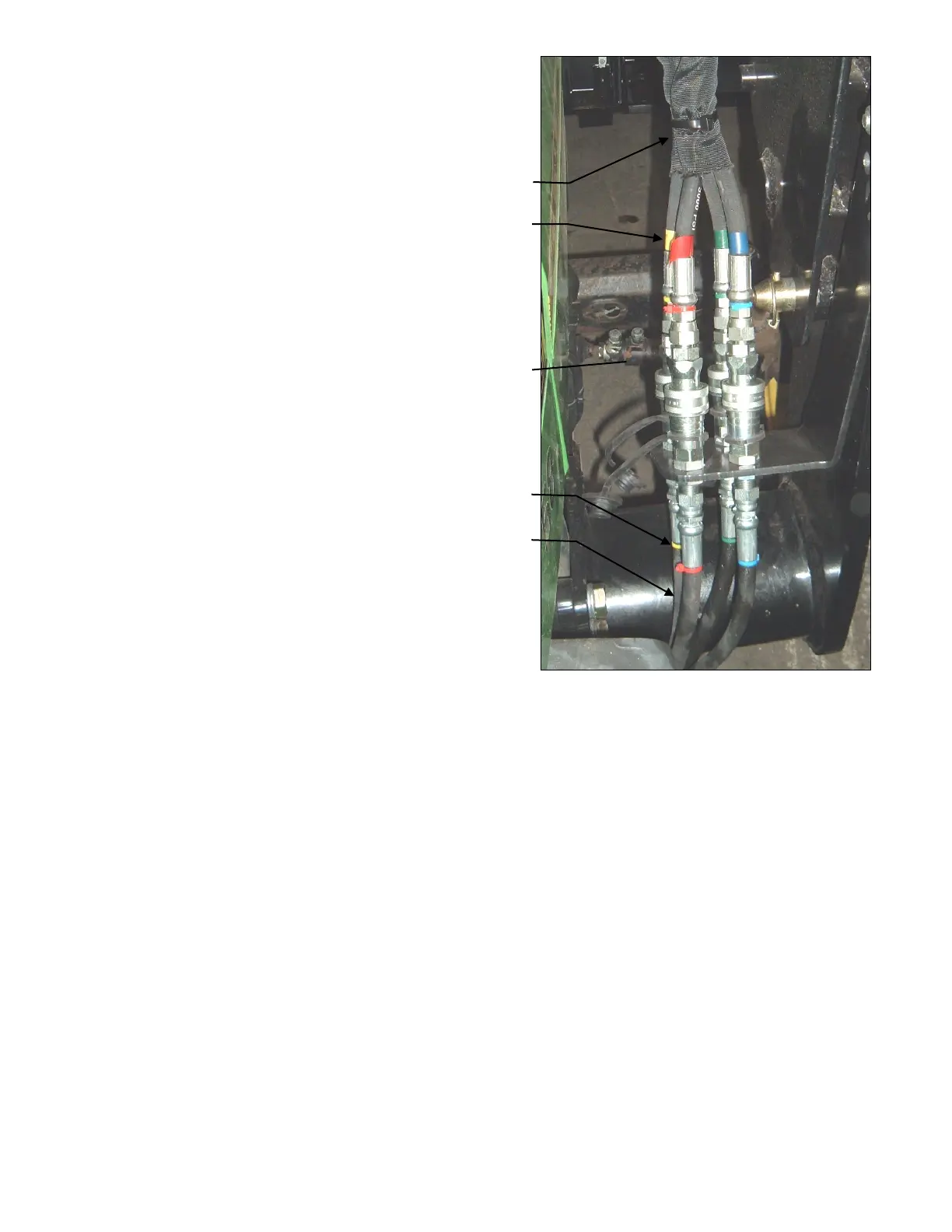

Photo "A"

6.4.7. Quick connect loader hoses to

hydraulic circuit of tractor previously

installed per instructions with Hydraulic

Kit installed.

6.4.8. Photo "A" shows loader hoses

connected to Optional Mid-Mount

Coupler Kit.

Loader Hoses

Color Ties

Connect Circuits

Color Ties

Remote/Valve

Hoses

{
