38. CONTROL HANDLE COMPONENTS
Serial Number 123365624 and newer
CONTROL HANDLE COMPONENTS
Serial Number 123365624 and newer

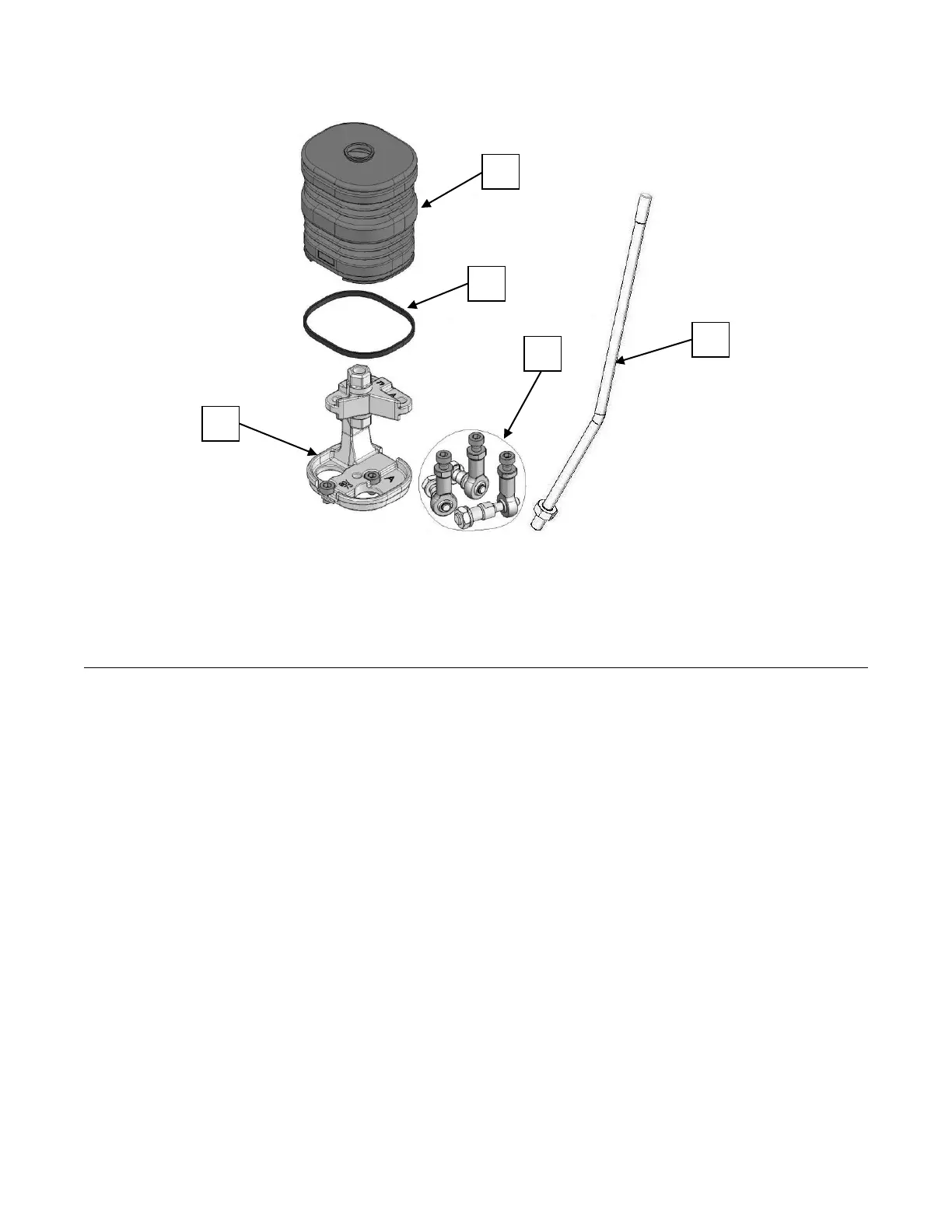

Reference Description Part No. Qty.
1 .............................. Joystick Complete Kit (Contains all parts except Lever) ..........1408-3067 ................................ 1
2 .............................. Joystick Lever ..........................................................................1408-3068 ................................ 1
3 .............................. Knob .........................................................................................1409-3129 ................................ 1
4 .............................. Control Handle Boot .................................................................1409-3196 ................................ 1
5 .............................. Pivot Pin Kit ..............................................................................1409-3220 ................................ 3
6 .............................. Zip Tie ......................................................................................1409-3221 ................................ 1
7 .............................. Base Plate Kit ...........................................................................NSS .......................................... 1
Note: Identify valve and valve controller before ordering service parts.
