Desk with Above Desk Extension Cabinet
(With Legs under Cabinet)
Pattern Numbers Represented:
Connector Kit for Above Desk Extension Cabinets, YSDXUP
Legs for Desks or Returns (Desk or Standing Height), YEL__
Starter Rails with End Caps, YBRS_
Fabric Inserts for Above Desk Extension Cabinets, YSDXFB_

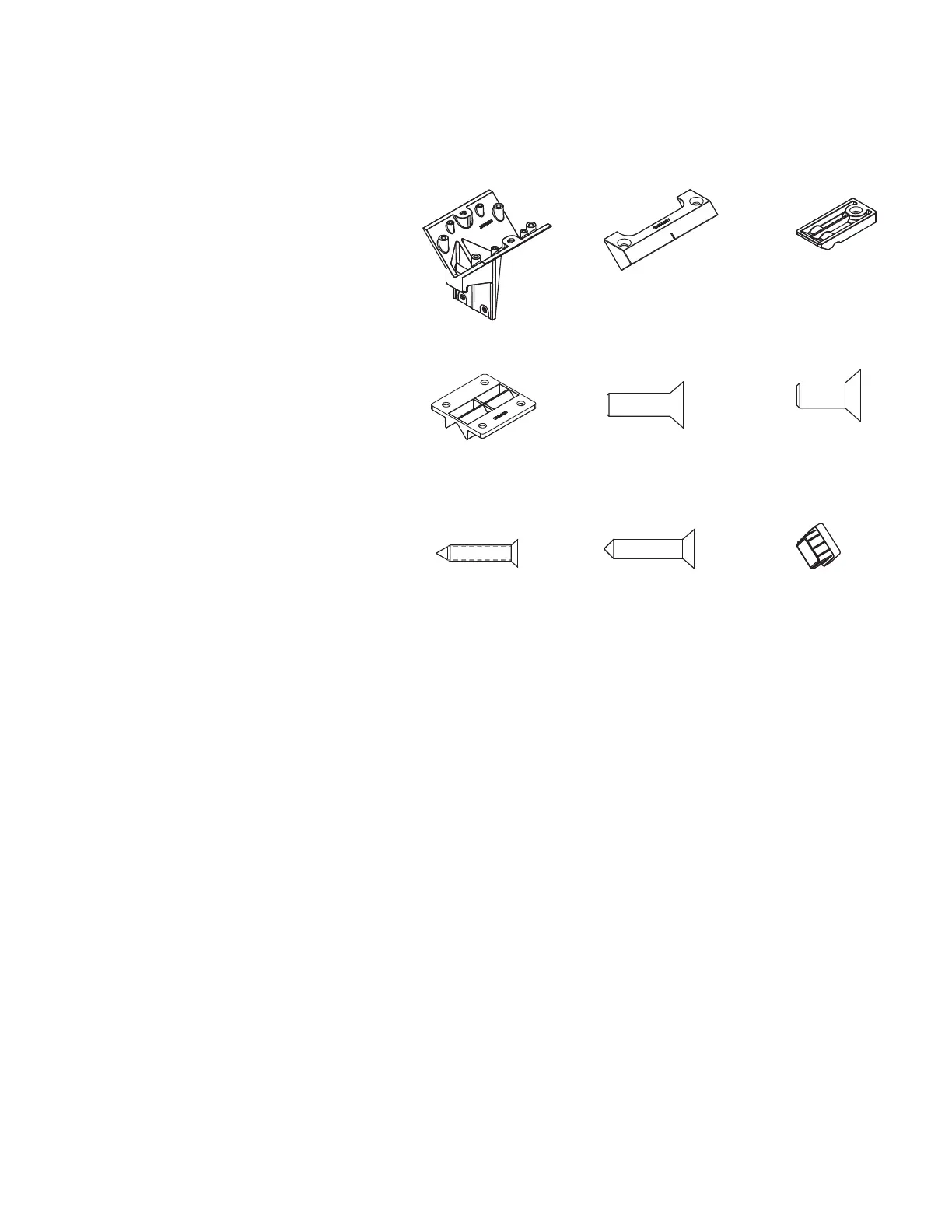

Part List:
Horizontal Rail Cradle (A)
Cradle Clamp Bracket (B)
Spacer (C)
W-Bracket (D)
¼-20 x 1" Machine Screw (E)
¼-20 x
5
/
8
" Machine Screw (F)
#14 x 1" FH Wood Screw (G)
#12 X ¾" Black Wood Screw (H)
Standard End Cap (I)
Rails
Desk End Legs
Top
Above Desk Extension Cabinet
Fabric Inserts
Tools Needed:
Drill
Phillips #2 and #3 bits
Rubber Mallet
Install Gauge
STEPS:
1. Attach desk cradles (A) to legs, (2) per leg, using
(2) ¼-20 x 1" machine screws (E) per cradle (A).
2. Attach (1) pair of horizontal rails to cradles
(A) by first fastening (2) cradle clamp
brackets (B) loosely to each cradle (A)
using (4) ¼-20 x
5
/
8
" machine screws (F).
NOTE: Rails are 12" longer than top width
for extension applications. ie: 72" wide tops
use 84" wide rails. (Note: 84" is nominal.
Actual length for 84" starter rails is 81".)
Install (4) standard end caps (I) into the
ends of the rails with the rubber mallet. Slide
one end of each rail into the cradle/clamp
assemblies, with rail paint holes facing up and
toward the center of the table desk assembly.
NOTE: If a glass top is being used,
holes are to face down and toward
center of the table desk assembly.
Position the outer edge of the cradles (A)
4" from the end of the rail. Use gauge to
help properly position rails. See Install
Gauge Guidelines. Tighten the screws
(F) in the cradle clamp brackets (B).
3. Attach other ends of the rails to the (2) cradles
(A) in the other leg assembly as noted in step 2.
4. If applicable, attach suspended storage,
returns, and/or electrical components at this
time. (see suspended storage, table desk with
return and electrical installation instructions).
5. Surfaces 48" wide and greater require a spacer
(C) for additional support. When necessary,
a spacer (C) should be placed between the
top of each rail and the underside of the top,
centered on the width of the top. Spacers
(C) are attached to the top using (1) #12 X
¾" black wood screw (H) per spacer.
6. Lay main top on base assembly over one pair
of legs. Use gauge to properly position top
on the rails. See Install Gauge Guidelines.
7. Place (2) W-brackets (D), (included in connector
kit YSDXUP), halfway under the end of the main
top that is to join with the extension cabinet.
8. Attach the main top to the cradles using (2)
#14 x 1" FH wood screws (G) per cradle (A) into
predrilled holes in the underside of the top.
9. Place the extension cabinet on top of
the W-brackets (D) placed in step 7 and
the cradles on the other pair of legs,
aligning the cabinet with the main top. The
extended rail should be inset 4 ½" from
the outer edge of the extension cabinet.
10. Attach the extension cabinet to the
cradles (A) using (2) #14 x 1" FH
wood screws (G) per cradle.
11. Secure the main top and extension cabinet
together by using (4) #14 x 1" FH wood
screws (G) per W-bracket under the
connection seam (placed in step 7).
12. Adjust glides as needed to level desk assembly.
OPTIONAL STEP FOR FABRIC INSERTS:
13. Remove paper backing from double sided
adhesive tape. Place fabric insert in the recess
behind the back of the extension cabinet,
pressing the four corners firmly to attach.
G.) 743 410 0
B.) 3AB4007*A.) 3AB4004*
D.) 3AB4095*
C.) 3AB401252
E.) 7194140
I.) 3AB4000*
F.) 718914 0
H.) 7196440
