Knoll Antenna Workspaces - Page 23

Desk with Above Desk Extension Cabinet
(With Legs under Cabinet)
 
















 






 










 






 















 




Extension Cabinets
For Desks
Planning Guidelines and Specifications
Antenna Workspaces
167
Storage Components
Above Desk Extension Cabinet
Elevation, Leg Under Cabinet
¼-20 x
5
/
8
" Machine Screw (F)

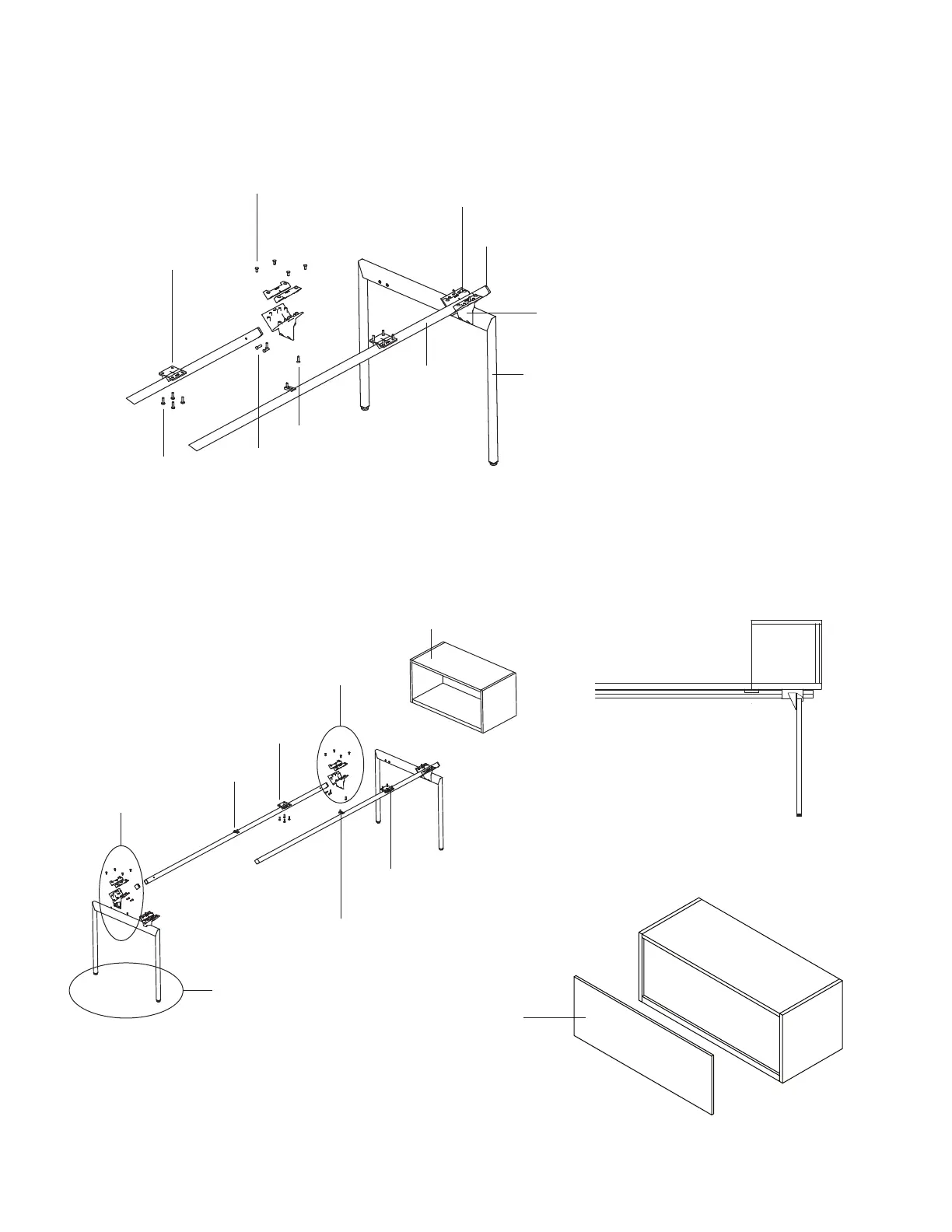

Exploded Desk Assembly with Extended Rails for Above
Desk Extension Cabinet (Legs under Cabinet) Detail
W-Bracket (D)
#14 x 1" FH
Wood Screw (G)
¼-20 x 1" Machine
Screw (E)
#14 x 1" FH Wood Screw (G)
Desk End Leg
Rail
Horizontal Rail Cradle (A)
Cradle Clamp Bracket (B)
Standard End Cap (I)
Exploded Desk Assembly with Above Desk
Extension Cabinet with Legs under Cabinet
Steps 3, 8 & 10
Steps 7 & 11
Step 5
Steps 1 & 2
Step 12
Spacer (C) with #12 X ¾"
Black Wood Screw (H)
W-Bracket (D) with (4)
#14 x 1" FH Wood Screw (G)
Step 9
Above Desk
Extension Cabinet
Step 13
(optional)
Fabric Inserts are Installed in the Back
of Above Desk Extension Cabinets
