Knoll Antenna Workspaces - Page 74

Fence-Antenna Leg & Stabilizer Foot

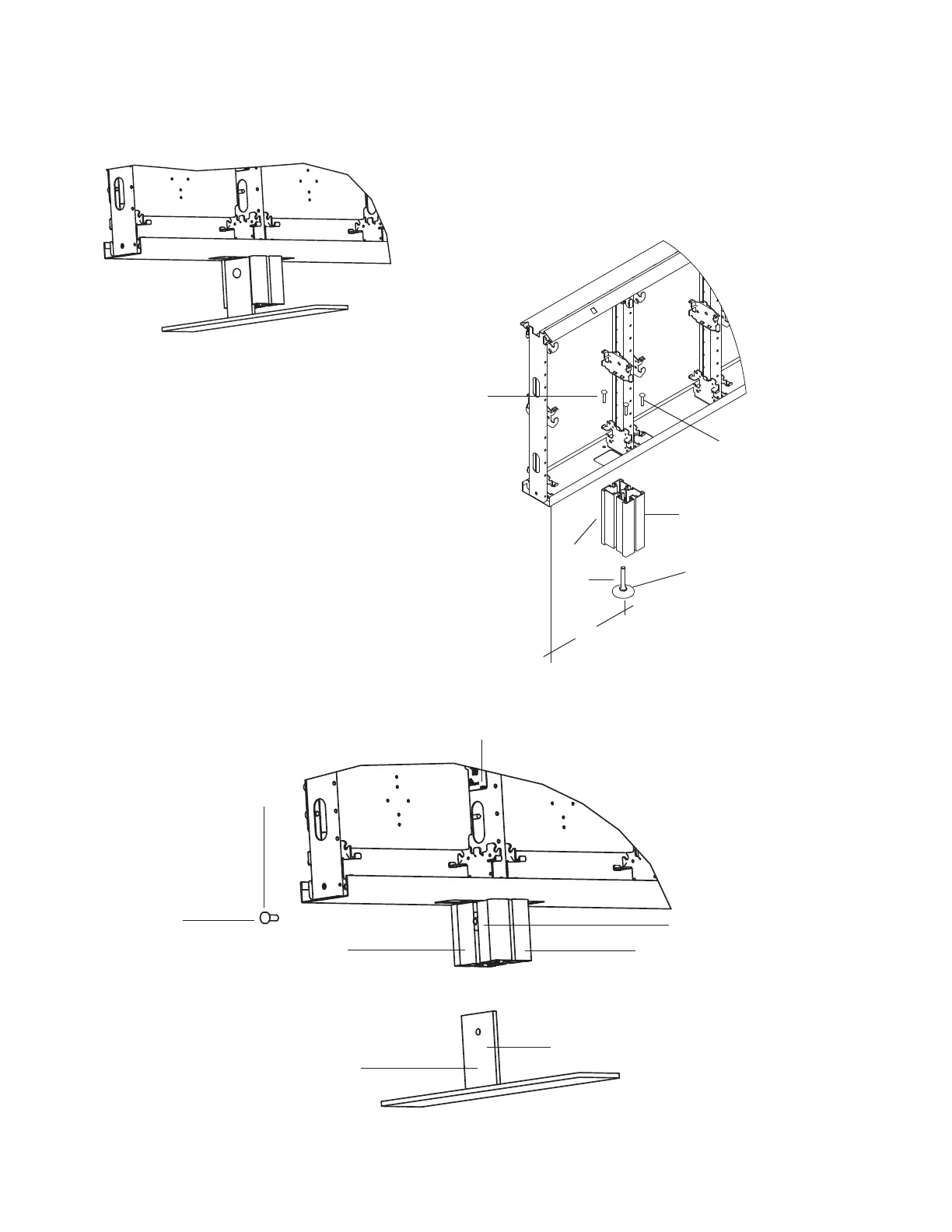

Fence Frame with Leg and Stabilizer Foot
Step 7
Step 5
Step 6
Fence Frame
5
/
16
- 18 ¾"
Machine
Screw (F)
5
/
16
– 18 Weld Nut (D)
Leg (A)
Stabilizer Foot (E)
Exploded Stabilizer Foot Assembly
Step 3
Step 2
Step 1
Glide (B)
Leg (A)
¼-20 x 1 ¼" Self
Tapping Screw (C)
Exploded Fence Leg Assembly
≥ 12"
