INSTALLATION INSTRUCTIONS Installation
10MAR06
II4825-1
Page
13 of 72

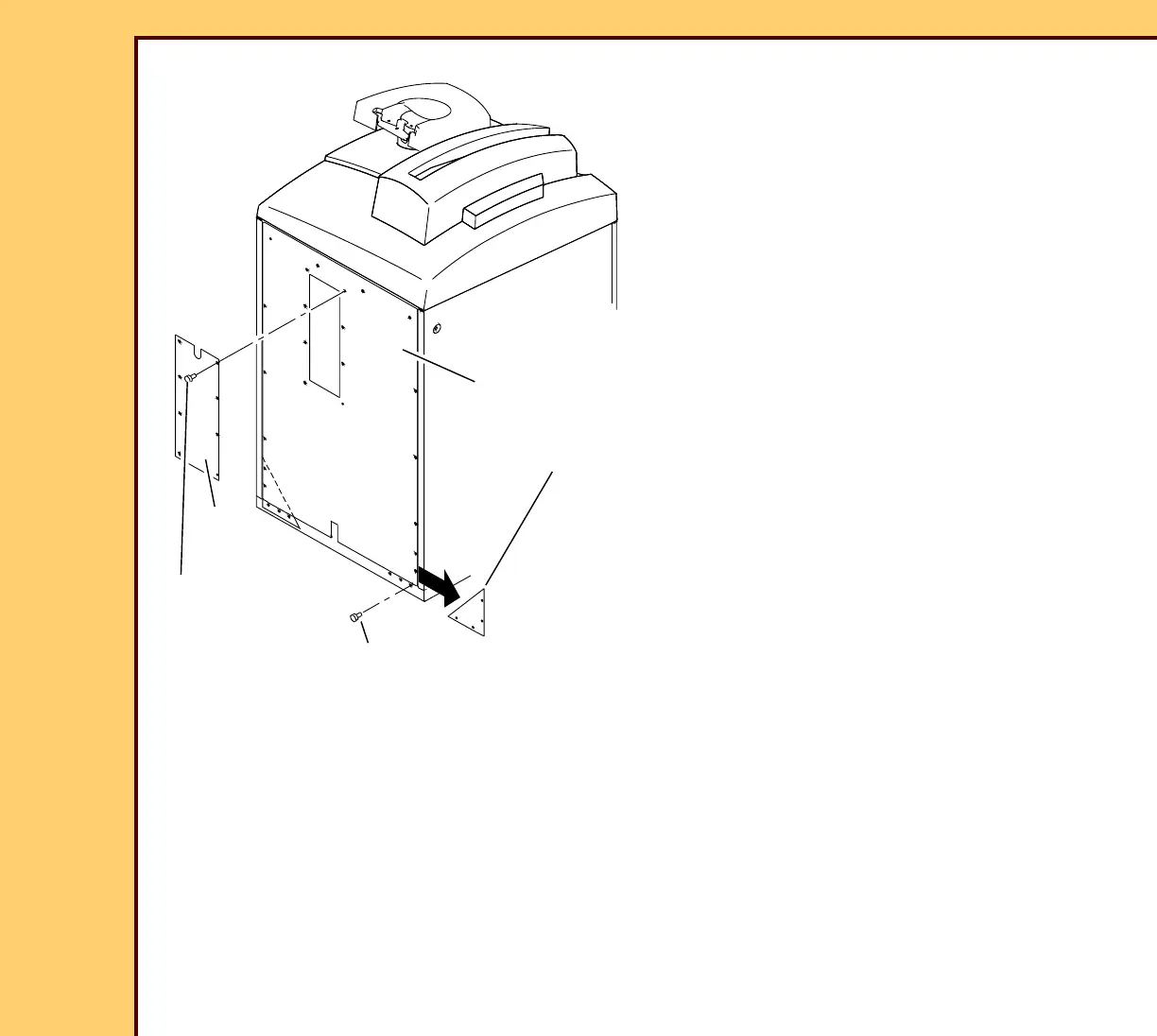

25 Remove the 8 SCREWS from the
REAR PANEL.
26 Remove and discard 2 SHIPPING
PLATES.
27 Install the 8 SCREWS in the REAR
PANEL.
28 Remove:
• 8 SCREWS
• REAR ACCESS PANEL
H194_0121GC
H194_0121GCA
8 SCREWS
REAR PANEL
8 SCREWS
2 SHIPPING PLATES
PANEL
ACCESS
REAR
