INSTALLATION INSTRUCTIONS Installation
10MAR06
II4825-1
Page
15 of 72

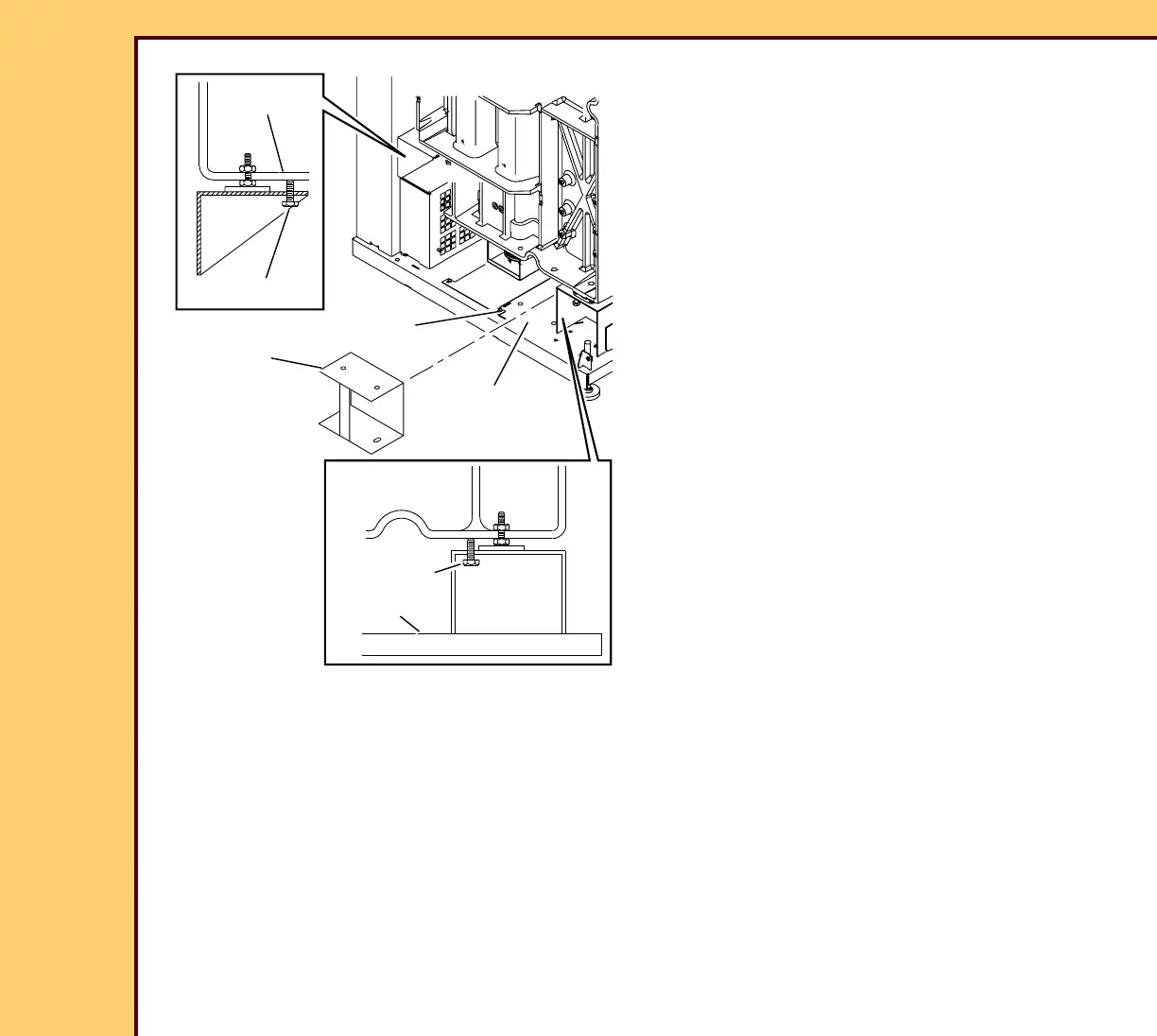

31 Rotate the 2 JACK BOLTS clockwise
until the SHIPPING BRACKET is loose.
32 Remove and discard the SHIPPING
BRACKET.
33 Install the SCREW into the ACCESS
PLATE.
34 Rotate the 2 JACK BOLTS
counterclockwise until the 2 JACK
BOLTS do not touch the FRAME.
H194_0124GC
PLATE
ACCESS
SCREW
H194_0124GCA
JACK BOLT
FRAME
JACK BOLT
FRAME
SHIPPING
BRACKET
